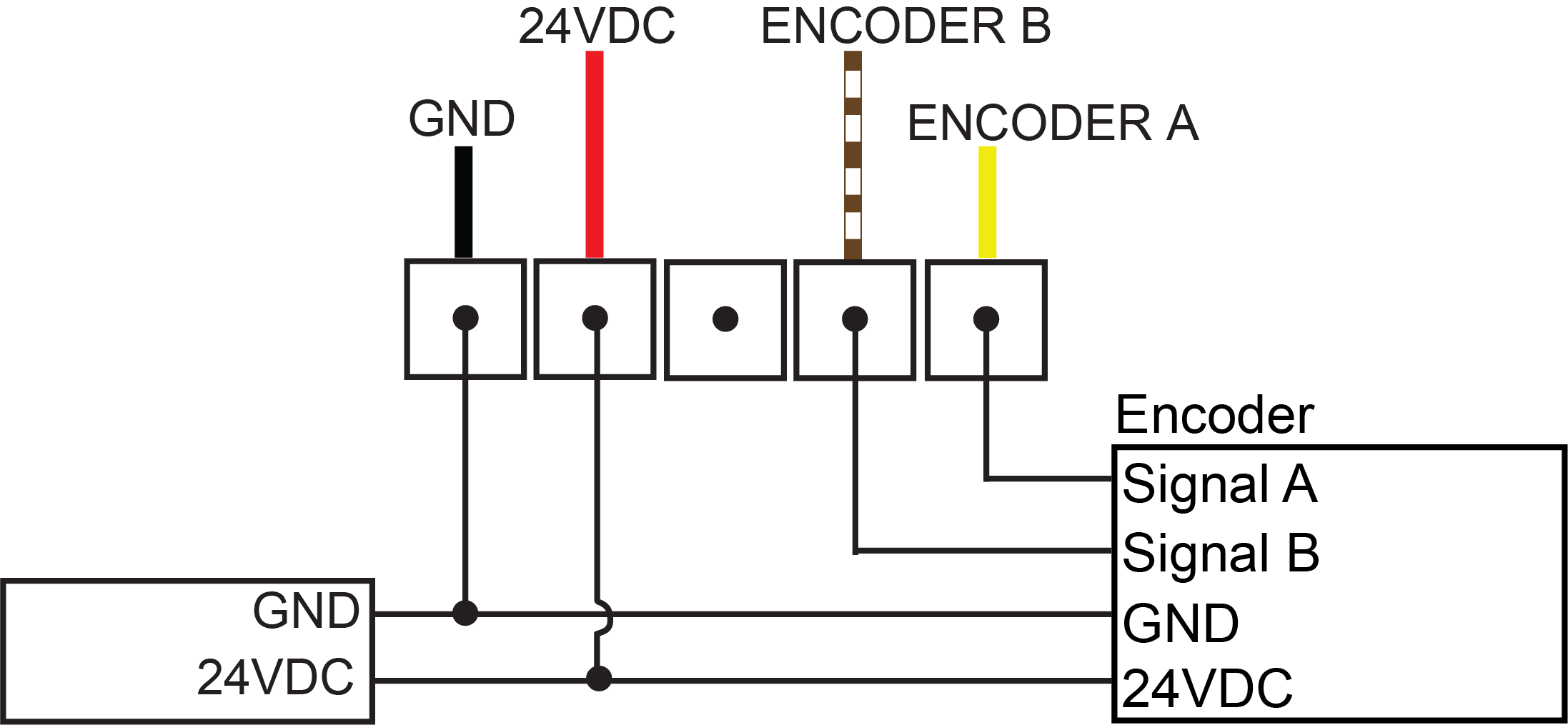

9902L Encoder Input Wiring
For single encoders, the ENCODER A pin must be used. For quadrature encoders, the ENCODER A or ENCODER B pin can be used. For more information, refer to Breakout Cable.
