Breakout Cable Specifications
The Breakout cable provides access to the vision system’s trigger and high-speed outputs. The Breakout cable can be connected to devices, such as a PLC, trigger sensor or strobe light. The Breakout cable is not terminated.
|
||
|---|---|---|

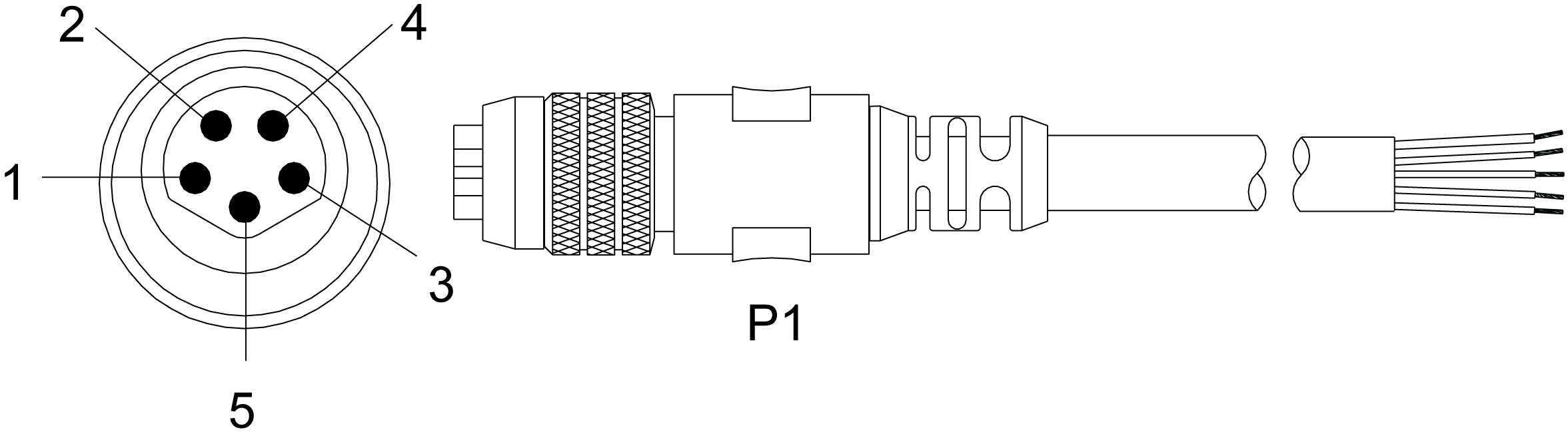

| P1 Pin Number | Signal Name | Wire Color |
| 1 | HSOUT 0 | Brown |
| 2 | HSOUT 1 | White |
| 3 | TRIGGER+ | Blue |
| 4 | TRIGGER- | Black |
| 5 | HS COMMON | Gray |
Note:
- Cables are sold separately.
- You can clip unused wires short or use a tie made of non-conductive material to tie them back.
