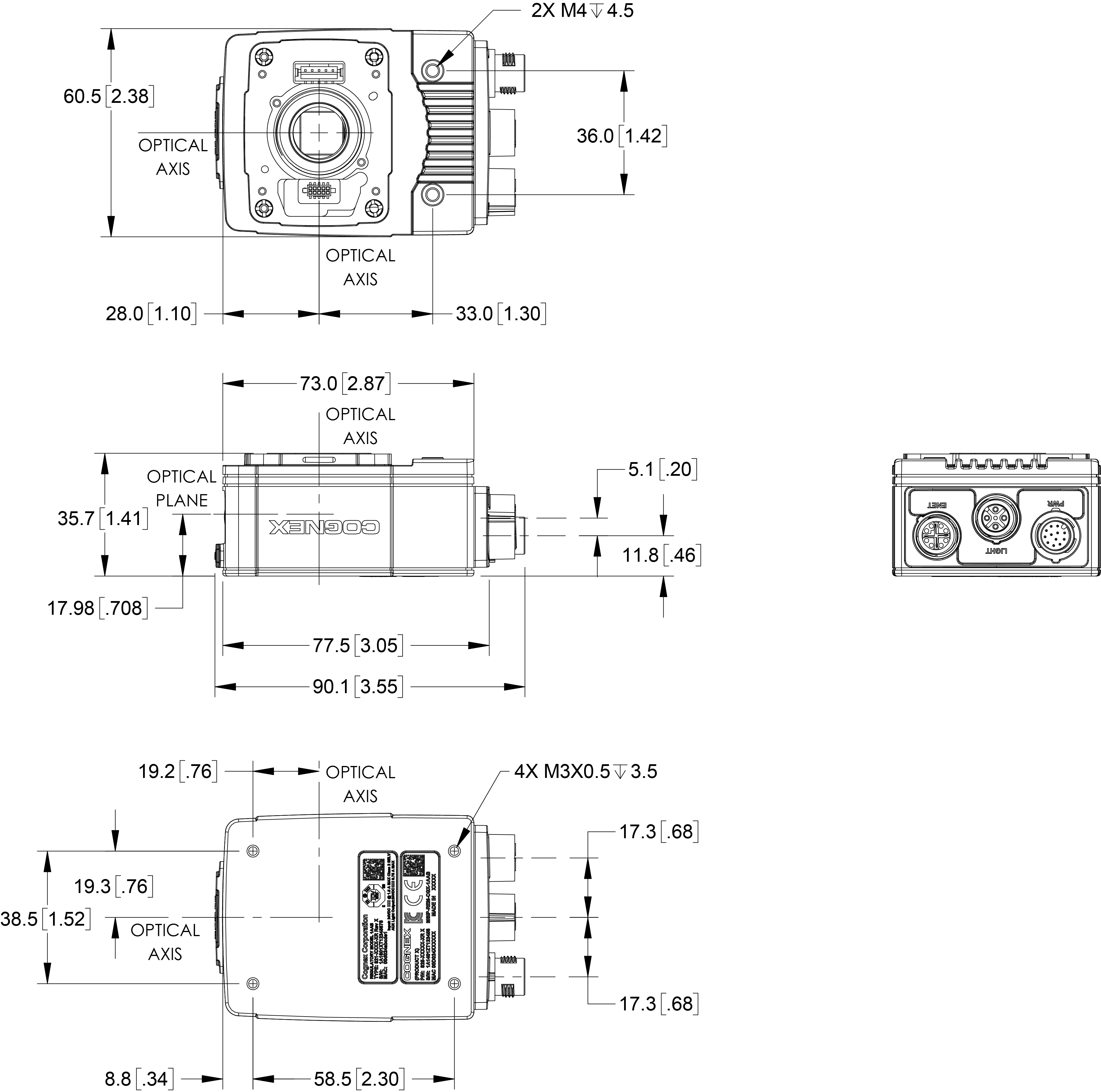

7500/7600/7800 Series & 7900/7901/7902 Vision System

Note:
  • Dimensions are in millimeters [inches] and are for reference purposes only.
  • All specifications are for reference purposes only and can change without notice.

Copyright © 2017 - 2019  |  Cognex Corporation  |  All Rights Reserved.

In-Sight® 7000 Gen2 Series Vision System Reference Guide  |  2019 October 02  |  Revision: 5.8.0.1
