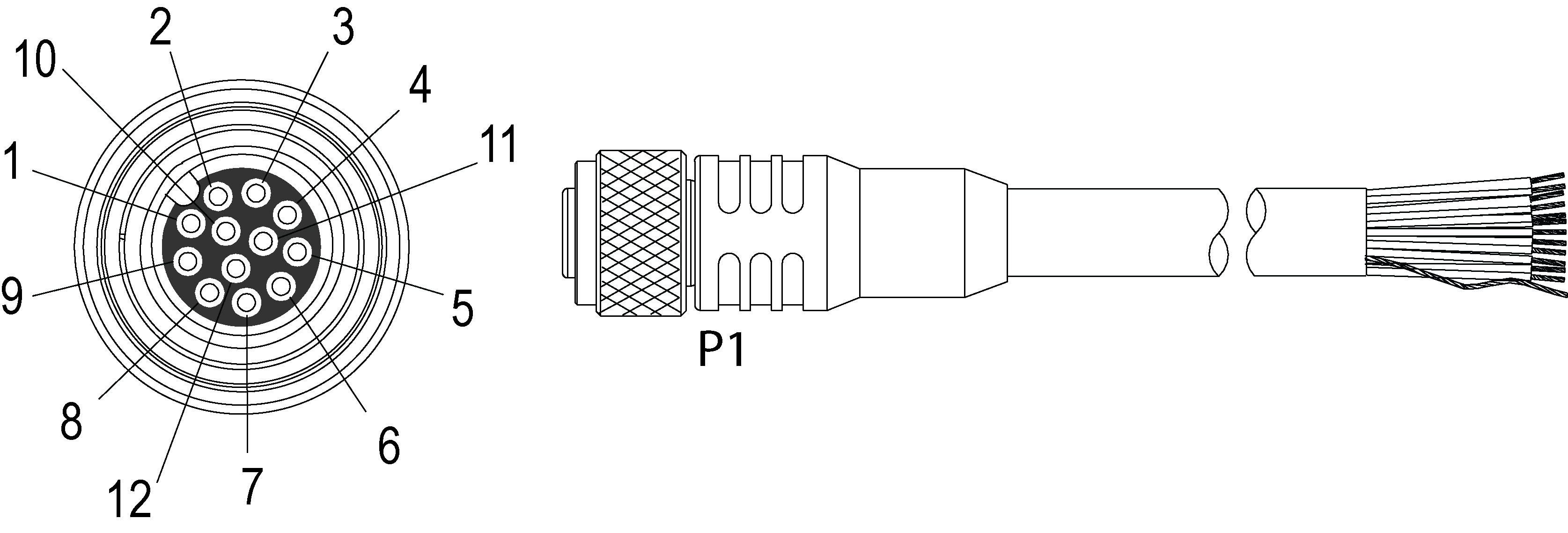

Breakout Cable
The Breakout cable provides connections to an external power supply, the acquisition trigger input,
|
|||
|---|---|---|---|
| Pin# | 9902L Signal Names |
|
Wire Color |
| 1 | ENCODER A INPUT | IN 2 / HS OUT 2 | Yellow |
| 2 | RS-232 TRANSMIT | RS-232 TRANSMIT | White/Yellow |
| 3 | RS-232 RECEIVE | RS-232 RECEIVE | Brown |
| 4 | ENCODER B INPUT | IN 3 / HS OUT 3 | White/Brown |
| 5 | IN 1 | IN 1 | Violet |
| 6 | COMMON IN | COMMON IN | White/Violet |
| 7 | +24VDC | +24VDC | Red |
| 8 | GND | GND | Black |
| 9 | COMMON OUT | COMMON OUT | Green |
| 10 | TRIGGER | TRIGGER | Orange |
| 11 | HS OUT 0 | HS OUT 0 | Blue |
| 12 | HS OUT 1 | HS OUT 1 | Grey |
Note:
- Cables are sold separately.
- You can cut exposed wires short or trim wire ends. You also can tie the wires back if you use a tie made of non-conductive material. Keep bare wires separated from the +24VDC wire.
- When using the 15 meter Breakout cable, full 24VDC voltage must be maintained at the input leads of the Breakout cable when the vision system is operating.
- If hardware handshaking is required for serial communication, an I/O module must be used.
- Perform wiring or adjustments to I/O devices when the vision system is not receiving power.
