Cables
Note: The External Light cable is not supported with the In-Sight 9902L line scan vision system.
| Cables | Part Number | |
|---|---|---|

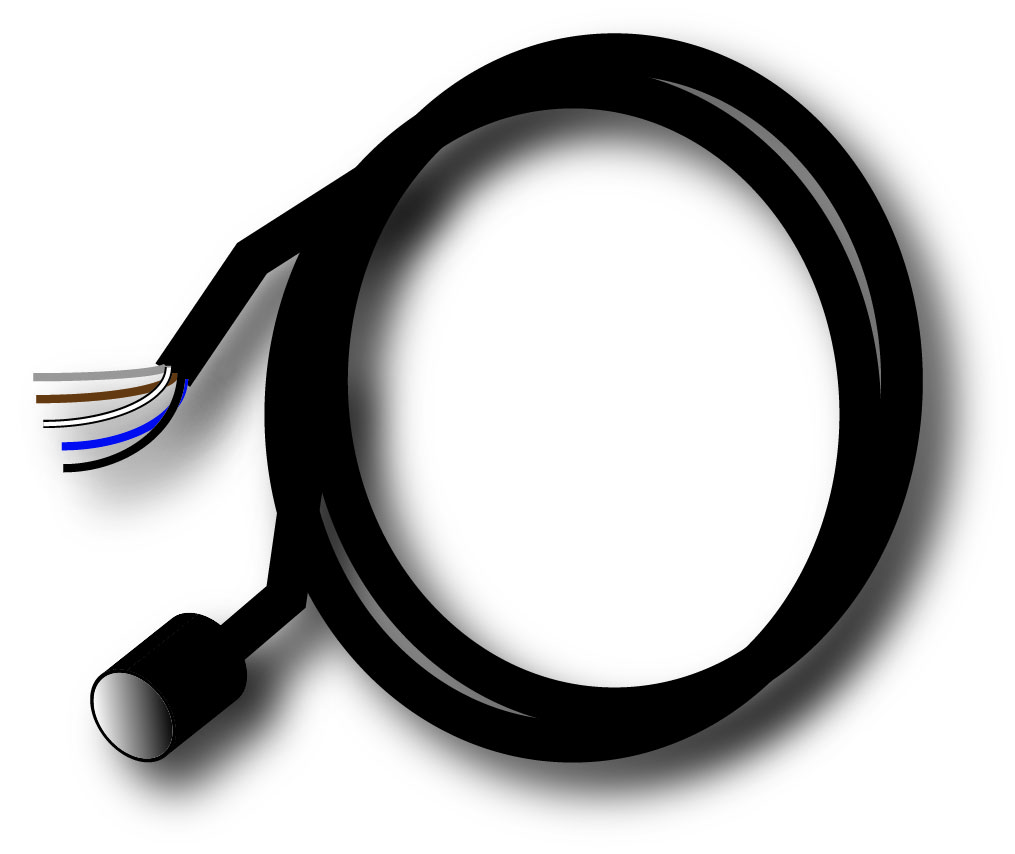

| Breakout Cable, M12-12 to Flying Lead | CCB-PWRIO- xx (straight, xx specifies length: 5m, 10m, 15m) |
|
| Breakout Cable, M12-12 to Flying Lead | CCB-PWRIO-xxR (right-angled, xx specifies length: 5m, 10m, 15m) | |

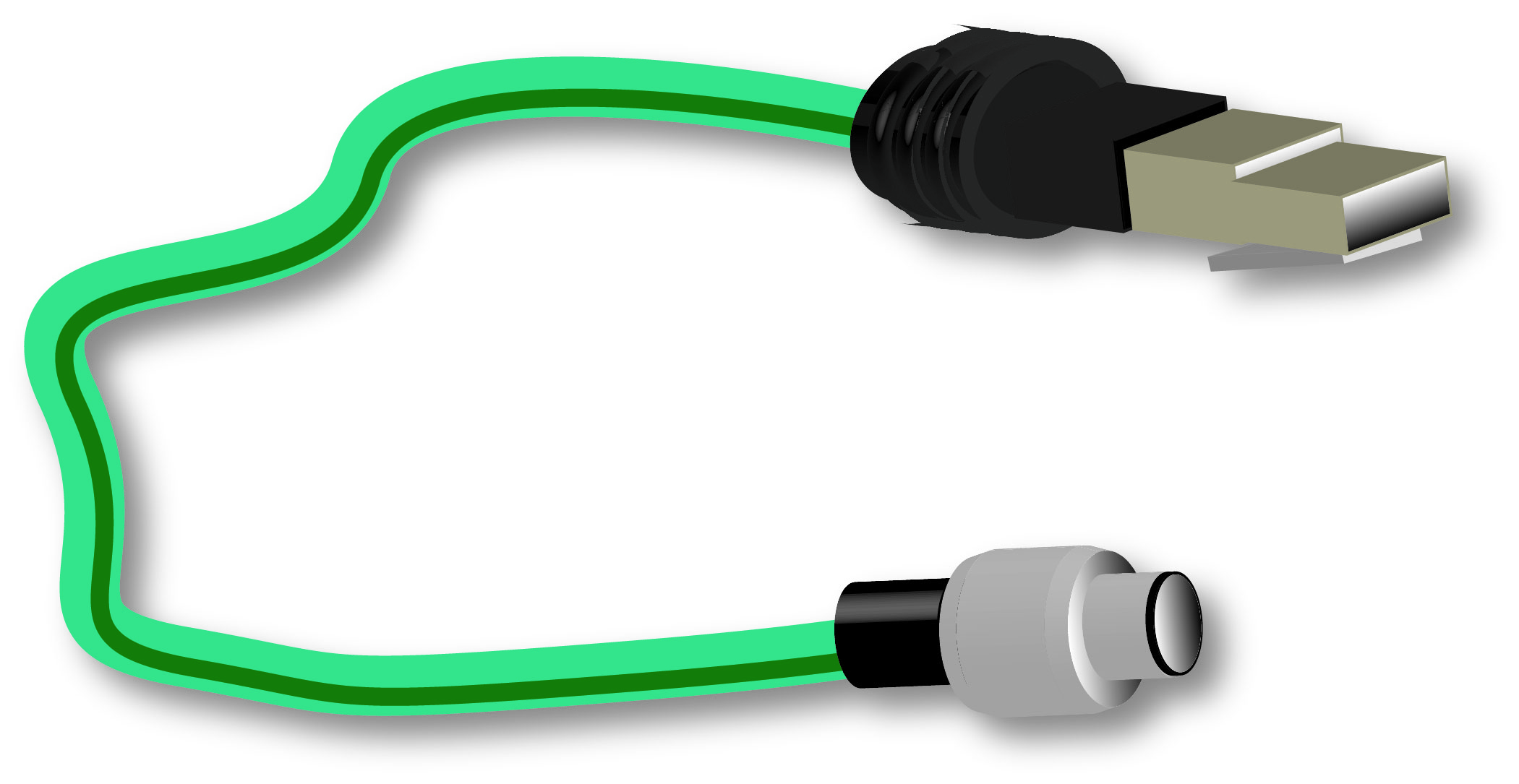

| Ethernet X-coded M12-8 to RJ-45 Cable | CCB-84901-2001-xx (straight, xx specifies length: 2m, 5m, 10m, 15m, 30m) |
|
| Ethernet X-coded M12-8 to RJ-45 Cable | CCB-84901-2002 (right-angled, xx specifies length: 2m, 5m, 10m) | |
|
External Light Cable, Grey Note: The External Light cable CCB-M12LTF-xx does not support intensity control.
|
CCB-M12LTF-xx (xx specifies length: 0.5m, 1m, 2m, 5m) |
|
|

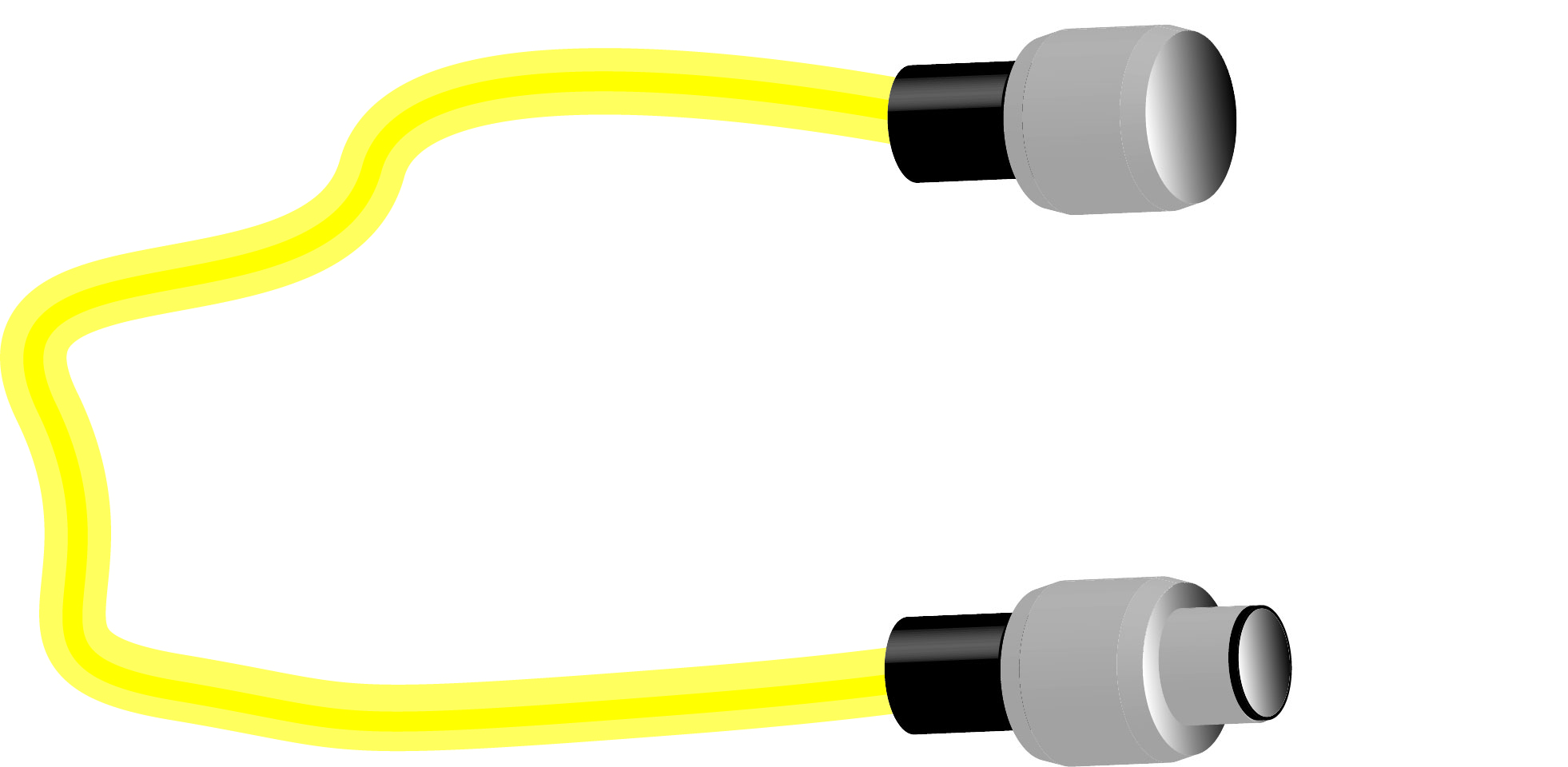

External Light Cable, Yellow |
IVSL-5PM12-J300 IVSL-5PM12-J500 IVSL-5PM12-J1000 IVSL-5PM12-J2000 |
|
| External Light Cable, Black |
IVSL-M12-NSB-300 IVSL-M12-NSB-1000 IVSL-M12-NSB-2000 |
|

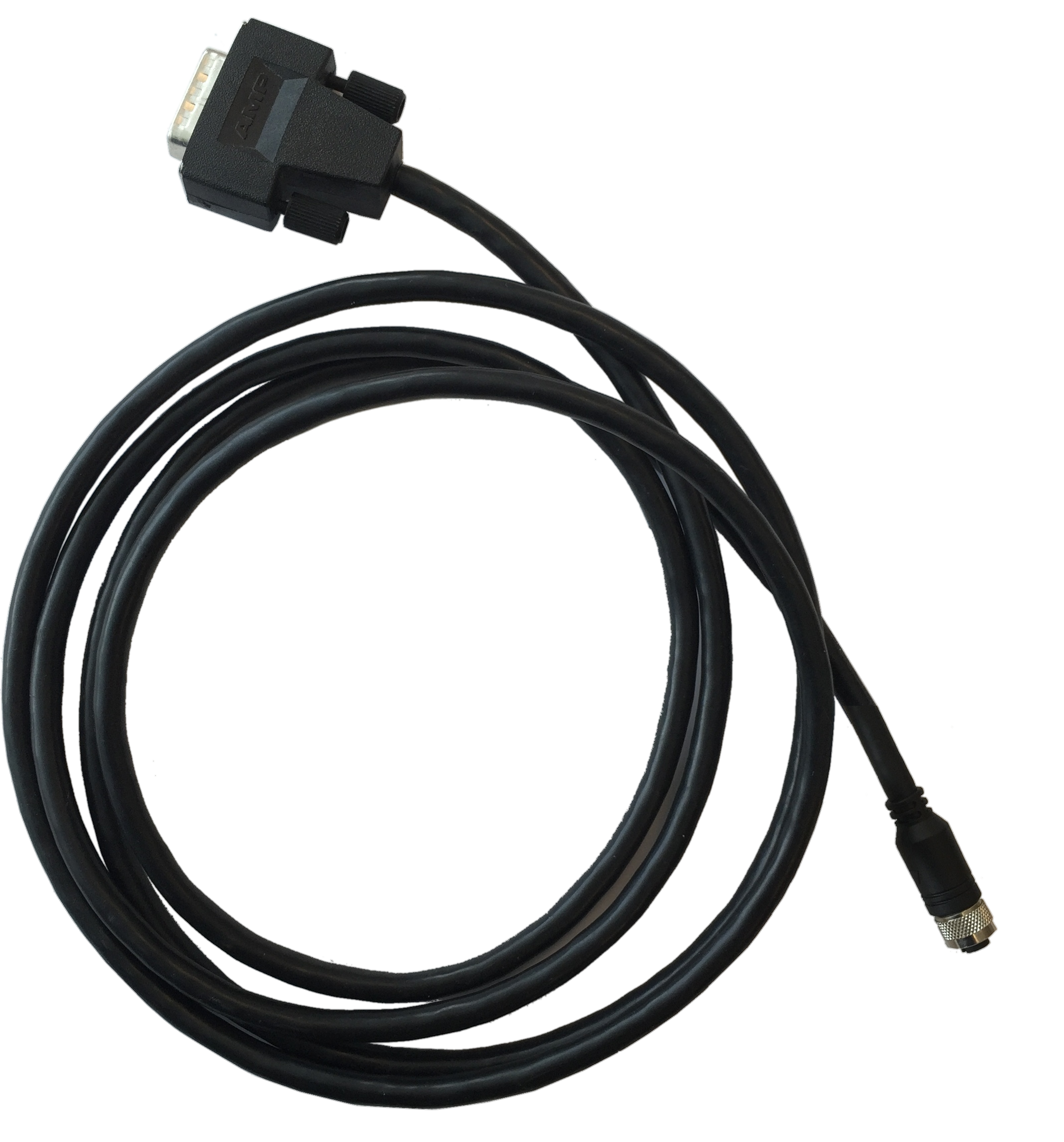

| I/O Module Cable M12-12 to DB15 | CCB-PWRIO-MOD-xx (xx specifies length: 2m, 5m) |
|
