Mount the Vision System
In order to operate the vision system accurately, make sure to mount the In-Sight 3D-L4000 firmly and perpendicular to the motion of travel. This way, the acquired point clouds will be repeatable and accurate.
|
|
|---|---|

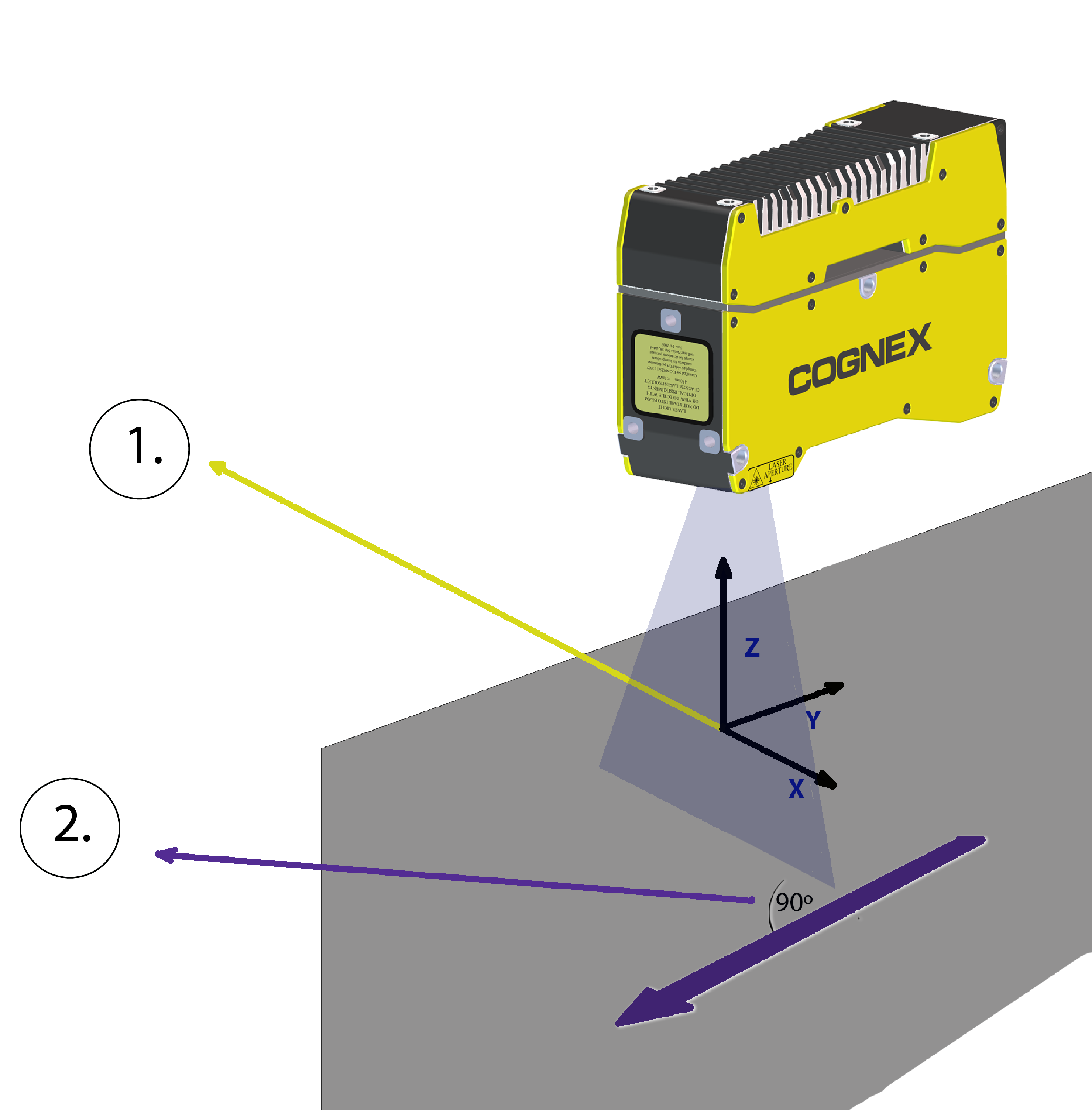

| Number | Guideline |
| 1. | The origin of the X-axis is the optical centerline of the sensor projected onto the Working Section. |
| 2. | Arrange the vision system in a way so that the motion of travel is perpendicular to the laser plane. |
Note: The vision system can shut down above maximum operating temperature. To avoid overheating you can heatsink the vision system by attaching a 400 mm aluminum profile or surface of a thermally conductive material (for example robot mounting plate) on top of the displacement sensor.
