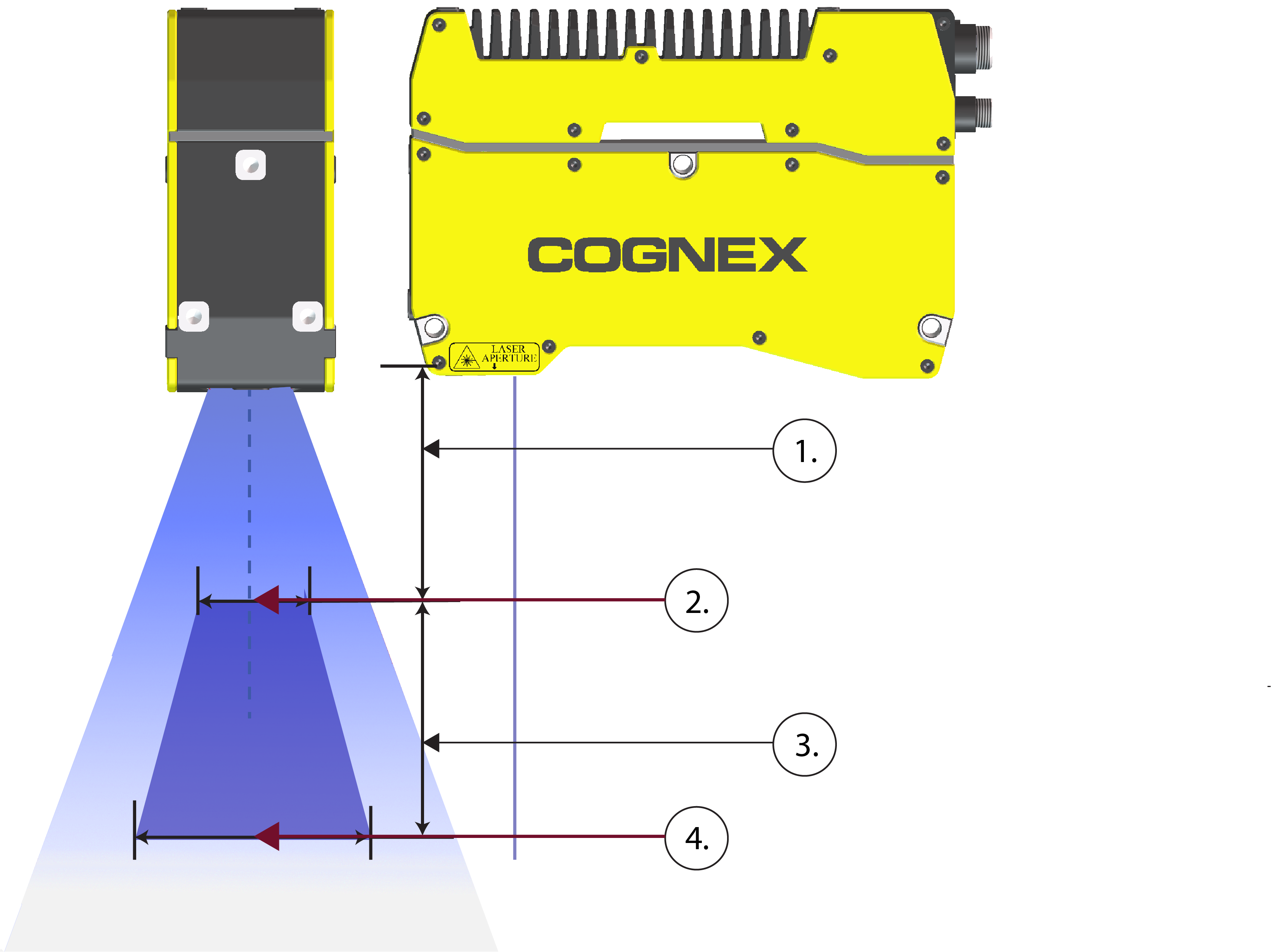

Working Distances and Fields of View
|
||||
|---|---|---|---|---|
| Number | Specification | IS3D-L4050 | IS3D-L4100 | IS3D-L4300 |
| 1. | Clearance Distance (mm) | 92 | 130 | 180 |
| 2. | Near Field of View (mm) | 55 | 75 | 95 |
| 3. | Measurement Range (mm) | 106 | 235 | 745 |
| 4. | Far Field of View (mm) | 90 | 180 | 460 |
