Read Job

Reads a job from the specified In-Sight job slot.

Read Job Inputs

Syntax: RJ[ID]

Parameter	Description
ID	The job ID number (0 to 999).

Read Job Outputs

Returns a status code, followed by a line terminator, followed by lines of job data.

The status codes are:

Status Codes	Description
1	The command was executed successfully.
0	Unrecognized command.
-1	The job ID number is outside the allowed range (0 to 999).
-2	The job could not be read, or the job slot is empty, therefore the command could not be executed.
-4	The In-Sight vision system is out of memory.
-6	User does not have Full Access to execute the command.

The lines of job data are:

Parameter	Description
Name	The first line contains the job name.
Size	The second line contains an integer value for the size (in bytes) of the job.
Data	The actual job data is encoded as ASCII hexadecimal values formatted to 80 characters per line. Each line ends with a terminating character.
CheckSum	The last line contains four ASCII hexadecimal bytes that are a checksum of the job data.

Read Job Example

To receive information about the job named "85Test.jobx", which is saved on the In-Sight vision system, issue the following command: RJ85

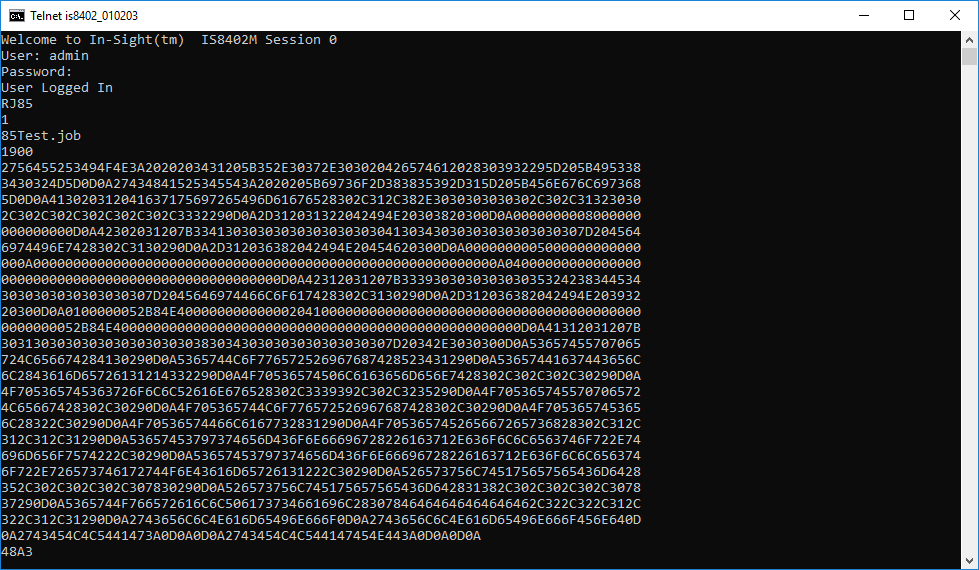

After issuing the Read Job command, the first line output to the telnet window is the status code (1), followed by the job name (85Test.jobx) and size (1900) in bytes, then the job data in ASCII hexadecimal format. Finally, the four-byte ASCII hexadecimal checksum is displayed on the last line (48A3).
