Read BMP

Sends the current image, in ASCII hexadecimal format (formatted to 80 characters per line), from an In-Sight vision system out to a remote device. When converted to binary, the resulting data is in standard BMP image format.

Note: Executing the Read BMP command is the equivalent of executing the Read Image command.

Read BMP Inputs

Syntax: RB

Read BMP Outputs

Returns a status code, followed by a line terminator, followed by lines of image data.

The status codes are:

Status Codes	Description
1	The command was executed successfully.
0	Unrecognized command.
-4	The In-Sight sensor is out of memory.
-6	User does not have Full Access to execute the command.

The lines of image data are:

Parameter	Description
Size	The second line contains an integer value for the size, in bytes, of the image.
Image	The actual image data is encoded as ASCII hexadecimal values formatted to 80 characters per line. Each line ends with a terminating character.
CheckSum	The last line contains four ASCII hexadecimal bytes that are a checksum of the image data.

Read BMP Example

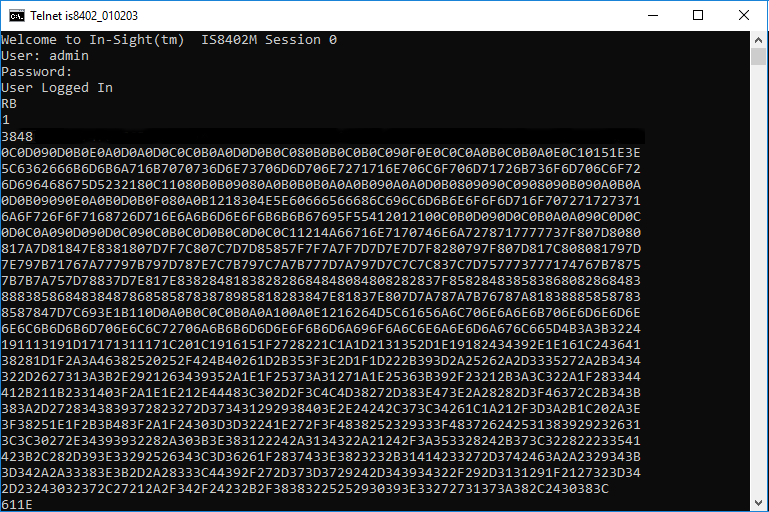

To read the current image in ASCII hexadecimal format from an In-Sight vision system, issue the following command: RB

The In-Sight vision system initially responds with 1. It indicates that the execution of the Read BMP command was successful. The next line contains the size (3848) in bytes, and the image data in ASCII hexadecimal format.

Note: Most of the actual image data has been omitted from the preceding graphic for clarity.

Finally, the four-byte ASCII hexadecimal checksum (611E) is returned.
