Get Info

Returns the system information for the In-Sight vision system.

Get Info Inputs

Syntax: GI

Get Info Outputs

Returns a status code, followed by the system information.

The status codes are:

Status Codes	Description
1	The command was executed successfully.
0	Unrecognized command.
-2	The command could not be executed.

The system information includes:

Output	Description
Serial Number	The serial number of the In-Sight vision system.
Application Version	The current firmware version on the In-Sight vision system.
Monitor Version	The Monitor version of the In-Sight vision system. The In-Sight Monitor is used mainly for troubleshooting the In-Sight sensor. "Safe Mode" allows you to start In-Sight by resetting all the setting parameters; be aware that this will replace the current "Settings" on the In-Sight sensor, including I/O, startup, and customization, without any prompting or warning. "Diagnostics" and "Server Mode" are for internal use and should not be accessed without Cognex technical support assistance. "Start In-Sight" starts the In-Sight software on the system.
MAC Address	The Media Access Control (MAC) address of the In-Sight vision system.
Date of Build	The date of build of the firmware on the In-Sight vision system.

Get Info Example

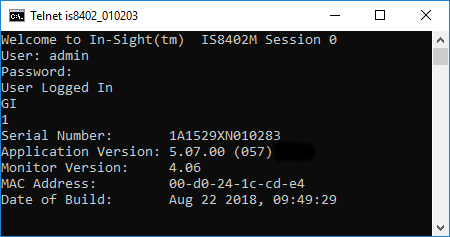

To display system information about an In-Sight vision system, issue the following command: GI

The vision system initially responds with 1, indicating the command successfully executed. On the following lines, the system information is reported.
