Read File

Reads a job from the specified In-Sight vision system flash memory.

Read File Inputs

Syntax: RF[Filename]

Parameter	Description
Filename	The name of the job. The command executes with or without the .JOBX extension.

Read File Outputs

Returns a status code, followed by a line terminator, followed by lines of job data.

The status codes are:

Status Codes	Description
1	The command was executed successfully.
0	Unrecognized command.
-1	The job filename is missing.
-2	There is no job saved with the given name or the job data is invalid, therefore the command could not be executed.
-3	Read failed.
-6	User does not have Full Access to execute the command.

The lines of job data are:

Parameter	Description
Name	The first line contains the job name.
Size	The second line contains an integer value for the size (in bytes) of the job.
Data	The actual job data is encoded as ASCII hexadecimal values formatted to 80 characters per line. Each line ends with a sequence of a carriage return and a line feed character.
CheckSum	The last line contains four ASCII hexadecimal bytes that are a checksum of the job data. The vision system calculates the checksum from the uppercase ASCII values of the hexadecimal encoded data, and not from the byte values of the file contents. For more information, see Native Mode Checksum.

Read File Example

To receive information about the job "text.jobx", which is saved on the In-Sight vision system, issue the following command: RFtext.jobx

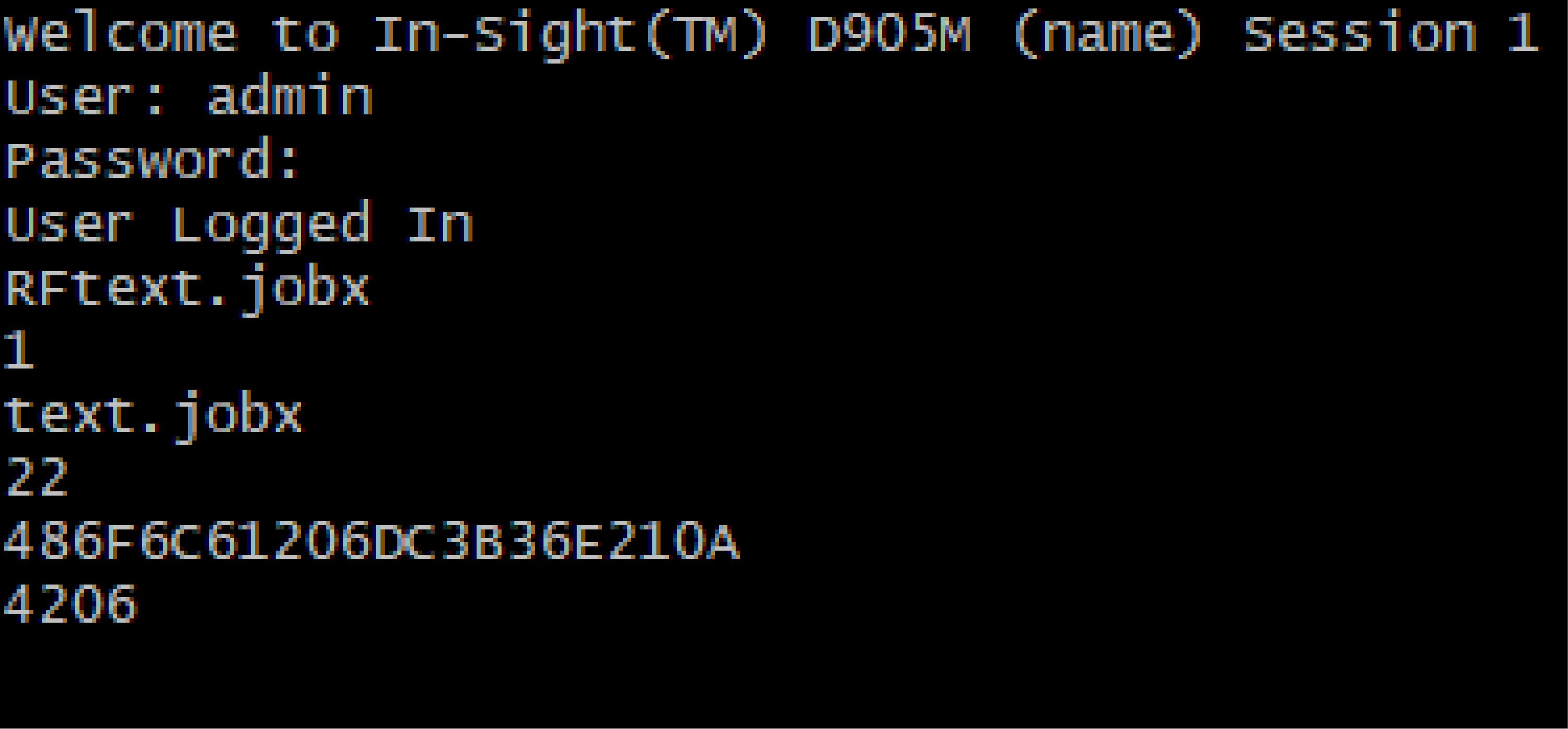

After issuing the Read File command, the first line outputted to the telnet window is the status code (1), followed by the job name (text.jobx) and size (22) in bytes, then the job data in ASCII hexadecimal format. Finally, the four-byte ASCII hexadecimal checksum is displayed on the last line (4206).
