Delete File
The In-Sight vision system must be Offline.
Delete File Inputs
Syntax: DF[Filename]
| Parameter | Description |
|---|---|
|
Filename |
The name of the job file. The command executes with or without the .JOBX extension. |
Delete File Outputs
| Status Codes | Description |
|---|---|
|
1 |
The command was executed successfully. |
|
0 |
Unrecognized command. |
|
-1 |
The filename is missing. |
|
-2 |
The file could not be deleted, the vision system is Online, a file does not exist with the given name, or the job data is invalid, therefore the command could not be executed. |
|
-6 |
User does not have Full Access to execute the command. |
Example: Delete a Job File

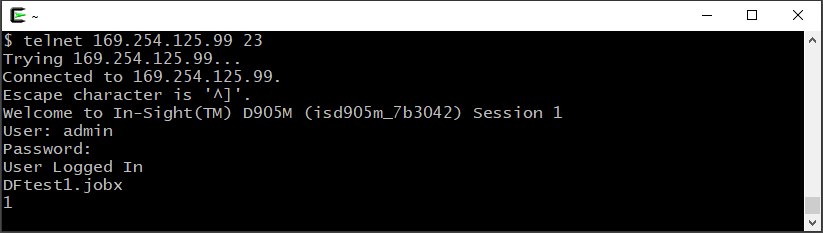

To delete the job "test1.jobx" from the In-Sight vision system, issue the following command: DFtest1.jobx
The In-Sight vision system responds on the following line with the status code of 1, indicating that the job was successfully deleted.
