High-Speed Outputs

Specification	Description
Voltages	VMAX: 26 VDC through external load VOL: ≤ ± 3 V @ 50 mA
Current	IMAX: 50 mA maximum sink or source current
	Each line is protected against over-current, short circuits and transients from switching inductive loads. High current inductive loads require an external protection diode.

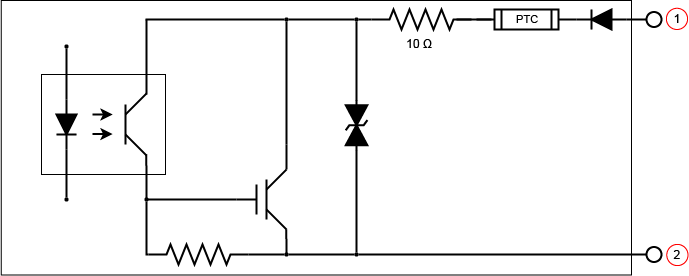

For NPN lines, the external load should be connected between the output and the positive supply voltage (< 26 VDC). The output pulls down to less than 3 VDC when ON, which causes current to flow through the load. When the output is OFF, no current flows through the load.

Number	Output
1	NPN OUT
2	COMMON OUT

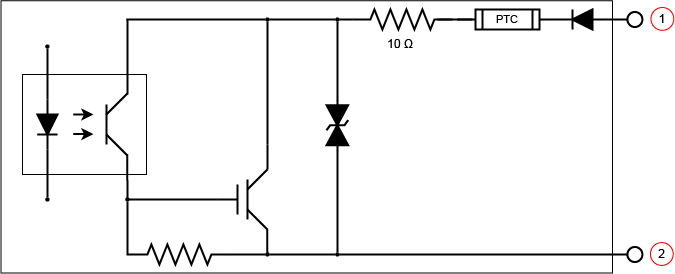

For PNP lines, the external load should be connected between the output and the negative supply voltage (0 VDC). When connected to a 24 VDC power supply, the output pulls up greater than 21 VDC when ON, and current flows through the load. When the output is OFF, no current flows through the load.

Number	Output
1	COMMON OUT
2	PNP OUT
