Inputs/Outputs

The Inputs/Outputs application step allows you to configure the signals on the input and output data lines of your vision system.

Use the data line settings table to configure each input/output line. Select a row in the table to display additional settings for output lines on the right.

Debounce Duration (µs) specifies the amount of time for all input lines in microseconds by which the device delays the recognition of a valid input signal. This does not apply to the TRIGGER line.

Check the De-Energize Outputs While Offline checkbox to de-energize the outputs when the vision system is placed Offline.

You can configure the following input and output lines for the In-Sight 2800 Vision System:

  • IN 0 - fixed TRIGGER input line
  • IN 1 - fixed configurable input line
  • HSOUT 0 - fixed configurable output line
  • HSOUT 1 - fixed configurable output line
  • IN 2/HSOUT 2 - configurable input/output line
  • IN 3/HSOUT 3 - configurable input/output line
  • Pass/Fail LED - fixed configurable output line for the Pass/Fail LED
  • Error LED - fixed configurable output line for the Error LED
Note:

You cannot modify the settings for IN 0, as IN 0 is a fixed TRIGGER input line. You can only configure the following input lines:

  • IN 1
  • IN 2/HSOUT 2
  • IN 3/HSOUT 3
  1. If you want to use the IN 2/HSOUT 2 or IN 3/HSOUT 3 line as an input line, open the dropdown in the Direction column for the line you are configuring, and select Input.

  2. In the Signal Type column for the line you are configuring, open the dropdown and select the signal type you want to configure:

    Signal Type Description
    User Data

    General purpose input line. You can use tool property linking to link the input signal to any boolean value in a tool.

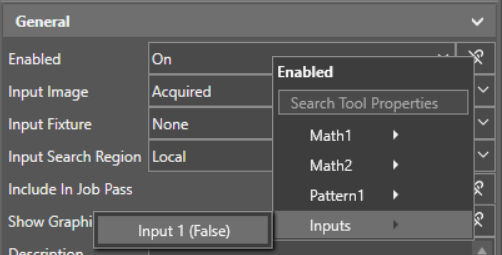

    For example, if you want to enable or disable a Find Pattern tool in your job using an input line, set your input line to User Data. Then, in the advanced tool settings view for the Find Pattern tool, open the tool property linking dropdown next to Enabled, and select your input line from the Inputs category:
    Event Reserved for future use.
    Parallel Job Load Use the Parallel Job Load signal type if you want to load jobs using the Job ID signal type on another input line. When a Parallel Job Load input line is HIGH (1), the device loads the job defined by the Job ID input lines.
    Job ID Use the Job ID signal type if you have another input line set up for Parallel Job Load. The Job ID input line can either be LOW (0) or HIGH (1), and defines the job file using a binary matrix. You can combine multiple Job ID input lines with a Parallel Job Load line to increase the number of jobs that you can potentially load.
    Online Use the Online signal type to force the vision system Offline or Online (0 = Offline, 1 = Online). You can only use the Online signal type on one input line at one time.

  3. In the Force column, you can override your configured line settings for testing or debugging purposes, and force the input line ON (1) or OFF (0):

    Force Description
    None The input line uses the configured line settings.
    On The input line is ON (1).
    Off The input line is OFF (0).
  1. If you want to use the IN 2/HSOUT 2 or IN 3/HSOUT 3 line as an output line, open the dropdown in the Direction column, and select Ouput.

  2. In the Signal Type column for the line you are configuring, open the dropdown and select the signal type you want to configure:

    Signal Type Description
    Programmed Transmits the Job Results defined in the Job Result settings for the output line. Either pulsed or steady-state.
    High Forces the output to HIGH (1).
    Low Forces the output to LOW (0).
    Acquisition Start Transmits a signal when a vision system acquisition has initiated. Always pulsed.
    Acquisition End Transmits a signal when a vision system acquisition has completed. Always pulsed.
    Acquisition Missed Transmits a signal when an acquisition start comes before the acquisition end signal for the previous acquisition, or when no image buffer is available when a new acquisition starts. Always pulsed.
    Strobe Uses the rising or falling edge of the signal to trigger a strobe.
    Job Completed Transmits a signal when a job has completed. Always pulsed.
    Online HIGH (1) when the vision system is Online, LOW (0) when the vision system is Offline.
    Busy HIGH (1) when the vision system is running a job or responding to user input, LOW (0) when the vision system is idle.
    Job Load OK Transmits a signal when a job loads successfully. Always pulsed.
    Job Load Fail Transmits a signal when a job fails to load. Always pulsed.

  3. Selecting the Programmed signal type enables the Job Result setting, allowing you to send tool property values from your job result on the output line.

    In the Job Result column for the line you are configuring, open the dropdown and select the tool property you want the output line to use.

    You can add cell values from the Math tool into your output lines as cell values are tool properties of the Math tool.

    Note: The Pass/Fail LED and Error LED lines can only accept tool properties with boolean values as a Job Result.

  4. In the Force column, you can override your configured line settings for testing or debugging purposes, and force the output line ON (1) or OFF (0):

    Force Description
    None The output line uses the configured line settings.
    On The output line is ON (1).
    Off The output line is OFF (0).

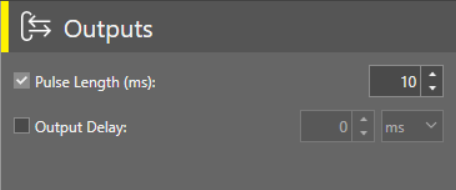

  5. On the right side of the screen next to the data line settings table, adjust the Pulse Length (ms) parameter to change the length of a pulse on the selected line.

  6. To enable output delay, check the Output Delay checkbox and define the delay in ms.

  7. If you are configuring the Pass/Fail LED line, you can also change the colors that the LED uses by opening the Tri-color LED dropdown, and selecting one of the following options:

    • Off/Green
    • Off/Red
    • Red/Green
