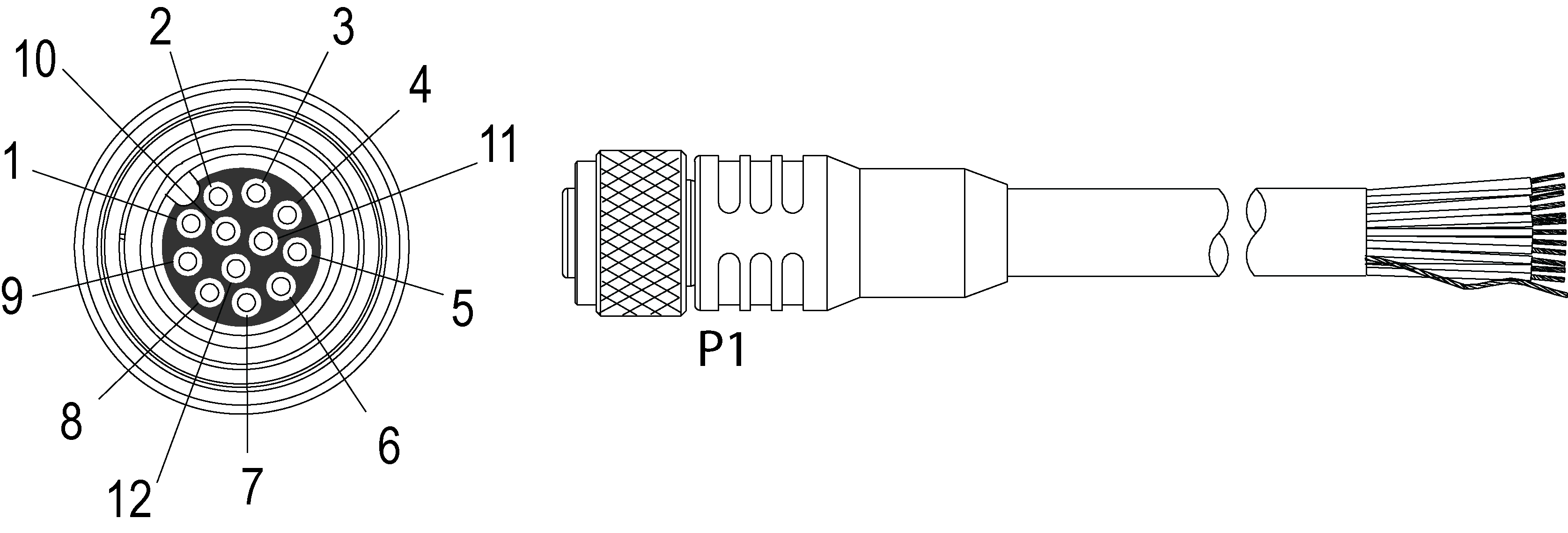

Breakout Cable
The Breakout cable provides connections to an external power supply, the acquisition trigger input, general-purpose inputs, high-speed outputs, and RS-232 serial communications. The Breakout cable is not terminated.
The Breakout cable can be connected to devices, such as a trigger sensor or strobe light. The Breakout cable is not terminated.
|
||
|---|---|---|
| Pin# | Signal Names |
Wire Color |
| 1 |
|
Yellow |
| 2 | RS-232 TRANSMIT | White/Yellow |
| 3 | RS-232 RECEIVE | Brown |
| 4 |
|
White/Brown |
| 5 | IN 1 | Violet |
| 6 | COMMON IN | White/Violet |
| 7 | +24VDC | Red |
| 8 | GND | Black |
| 9 | COMMON OUT | Green |
| 10 | TRIGGER | Orange |
| 11 | HSOUT 0 | Blue |
| 12 | HSOUT 1 | Grey |
Note:
- Cables are sold separately.
- Perform wiring or adjustments to I/O devices when the vision system is not receiving power.
- You can cut exposed wires short or trim wire ends. You also can tie the wires back if you use a tie made of non-conductive material. Keep bare wires separated from the +24 V DC wire.
- When using the 15 meter Breakout cable, full 24 V DC voltage must be maintained at the input leads of the Breakout cable when the vision system is operating.
