Cables
Note: Cables are sold separately.
| Accessory | Product Number | Illustration |
|---|---|---|

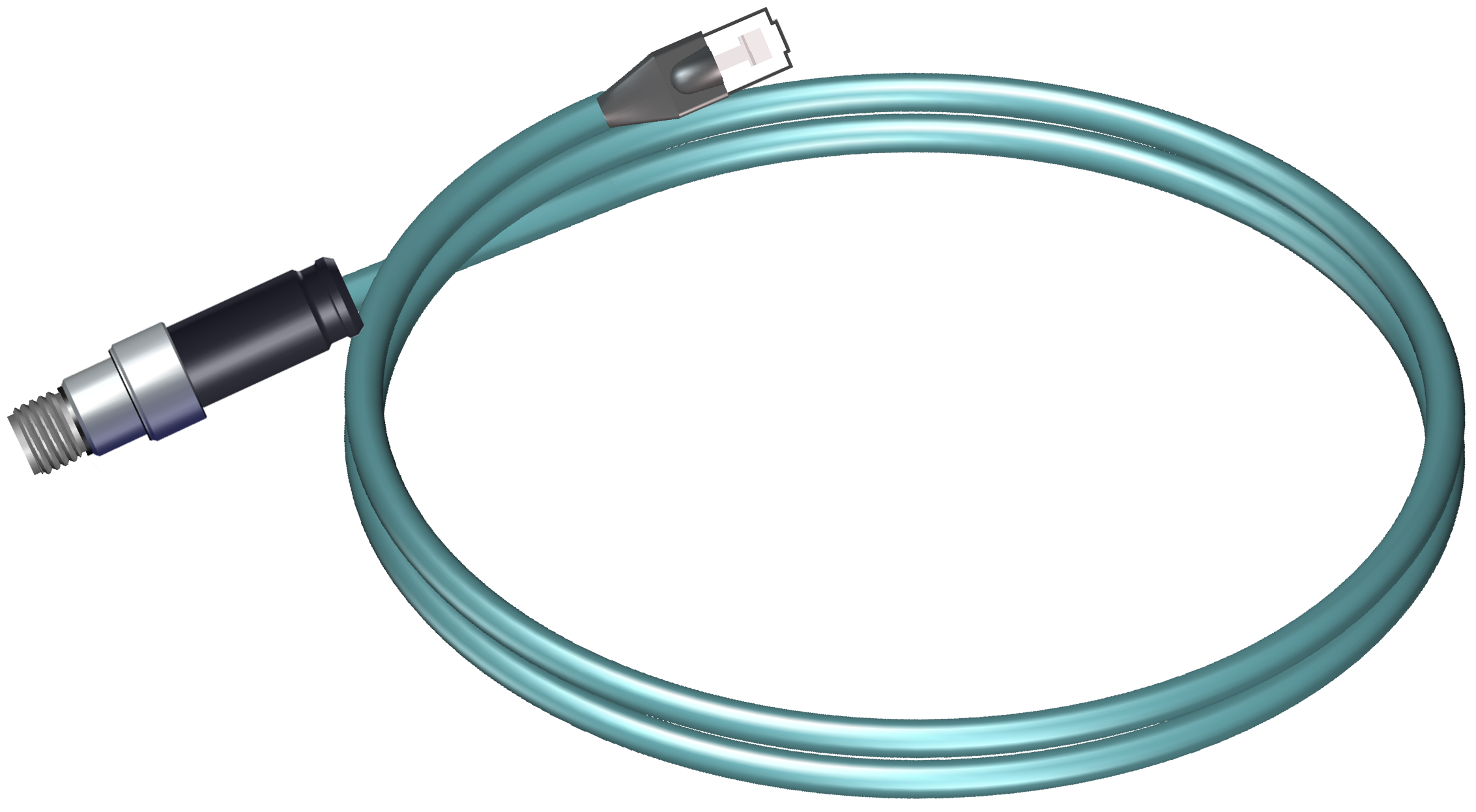

| Ethernet Cable, X-coded M12-8 to RJ-45 | CCB-84901-2001-xx (straight, xx specifies length: 2m, 5m, 10m, 15m, 30m) |
|
| Ethernet Cable, X-coded M12-8 to RJ-45 | CCB-84901-2002-xx (right-angled, xx specifies length: 2m, 5m, 10m) |
|
| Ethernet Cable, Robotic X-Coded M12-8 to RJ-45 | CCB-84901-2RBT-xx (straight, xx specifies length: 2m, 5m, 10m) |
|

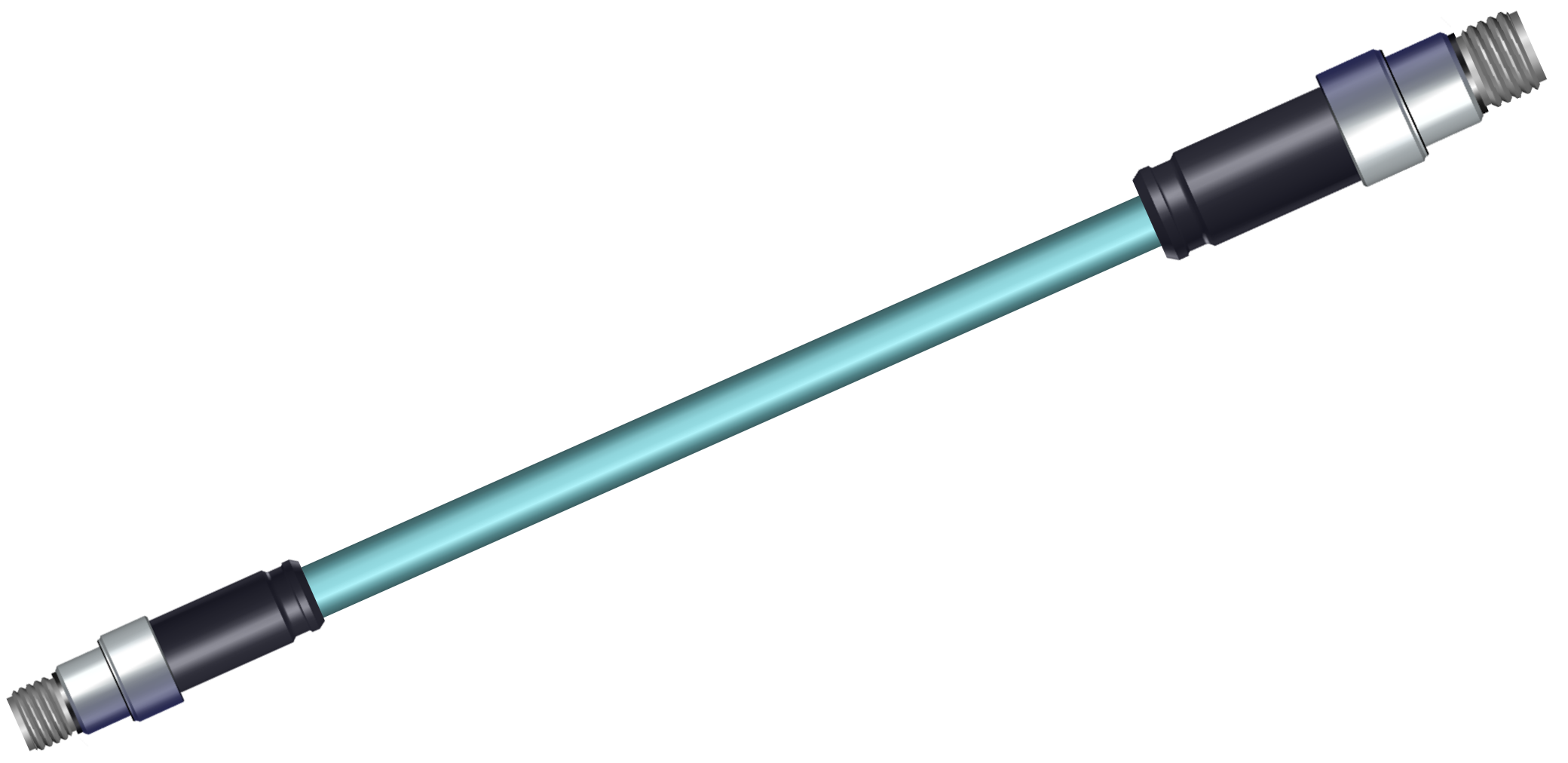

| X-Coded to A-Coded Ethernet cable adapter, 0.5 m | CCB-M12X8MS-XCAC |
|

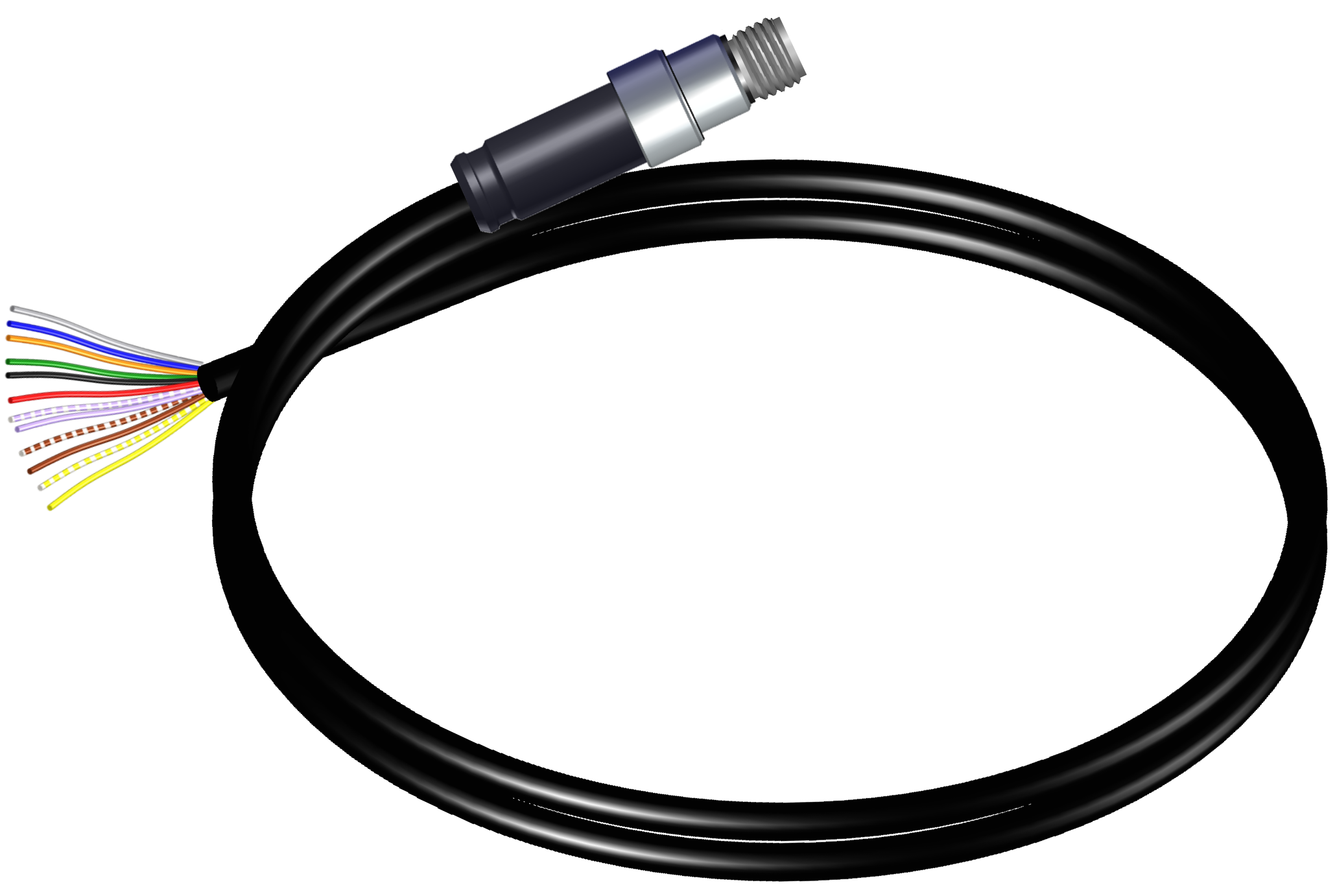

| Power and I/O Breakout Cable, M12-12 to Flying Lead, 5m | CCB‑M12x12Fy-05 (y = straight/angled) |
|
| Power and I/O Breakout Cable, M12-12 to Flying Lead, 5m | CCBL-05-01 |
|
| Power and I/O Breakout Cable, M12-12 to Flying Lead | CCB-PWRIO- xx (straight, xx specifies length: 5m, 10m, 15m) |
|
| Power and I/O Breakout Cable, M12-12 to Flying Lead | CCB-PWRIO-xxR (right-angled, xx specifies length: 5m, 10m, 15m) |
|

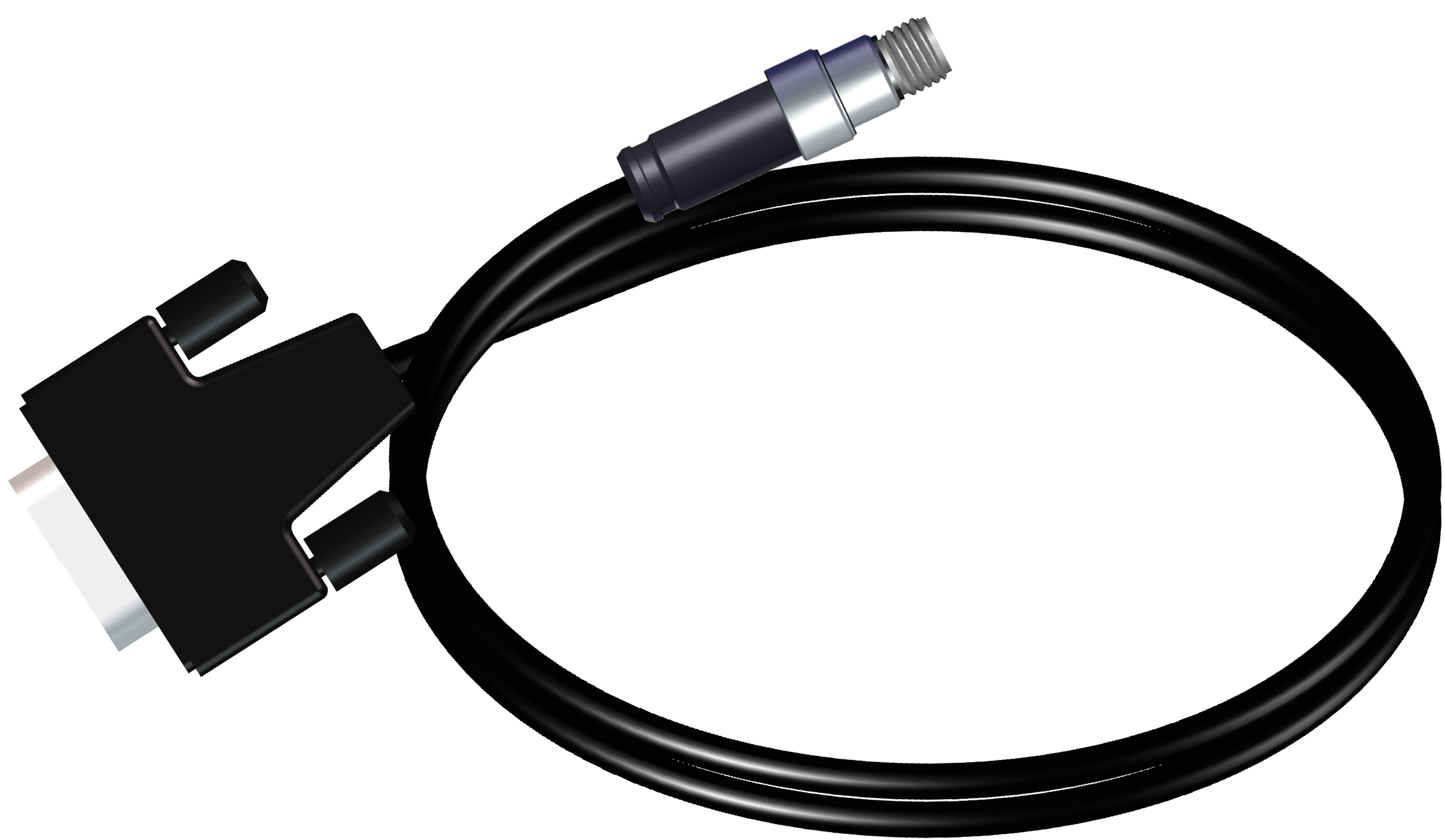

| I/O Module Cable M12-12 to DB15 | CCB-PWRIO-MOD-xx (xx specifies length: 2m, 5m) |
|

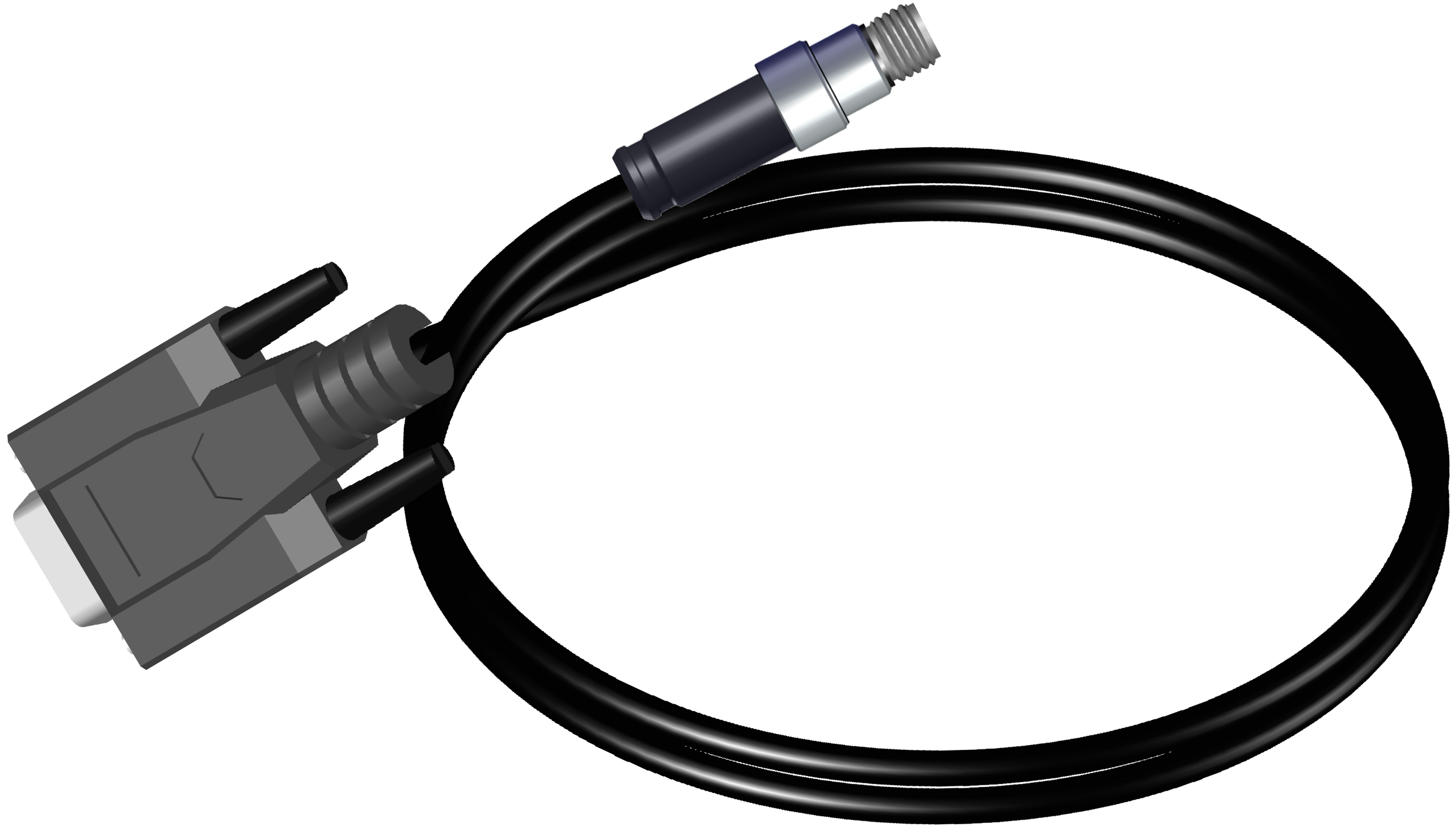

| RS-232 Connection Cable | CCB-M12xDB9Y-05 |
|
| I/O Extension Cable | CKR‑200‑CBL‑EXT |
|
