Installing High Power Integrated Torch (HPIT)

The possible hardware configurations using High Power Integrated Torch with a DataMan 370 reader are the following:

System	Lens	Lens part number	Light Type	Front cover
DM37x + DM370 adapter	10 mm F5 HSLL	DMLN-C10F05-HSLL	DMLT-HPIT-RE-W DMLT-HPIT-WHI-W	DMLA-HPIT-PLCOV (RED ONLY)
				DMLA-HPIT-CLCOV
				DMLA-HPIT-DLCOV
	16 mm F8 HSLL	DMLN-C16F08-HSLL	DMLT-HPIT-RE-W DMLT-HPIT-WHI-W	DMLA-HPIT-PLCOV(RED ONLY)
				DMLA-HPIT-CLCOV
				DMLA-HPIT-DLCOV
				DMLA-HPIT-DFCOV
	24 mm F10 HSLL	DMLN-C24F06-HSLL	DMLT-HPIT-RE-S DMLT-HPIT-WHI-S	DMLA-HPIT-PLCOV(RED ONLY)
				DMLA-HPIT-CLCOV
				DMLA-HPIT-DLCOV
				DMLA-HPIT-DFCOV
	35 mm F10 HSLL	DMLN-C35F08-HSLL	DMLT-HPIT-RE-N DMLT-HPIT-WHI-N	DMLA-HPIT-PLCOV (RED ONLY)
				DMLA-HPIT-CLCOV
				DMLA-HPIT-DLCOV

Tools needed:

• 2 mm Allen wrench

• Phillips screwdriver (PH0)

Perform the following steps to mount the HPIT to your DataMan 370 reader:

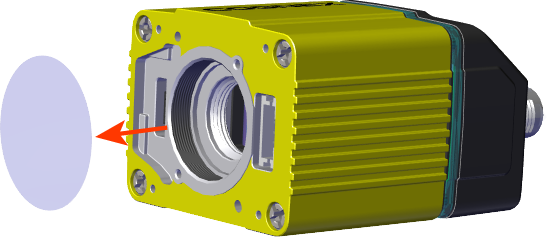

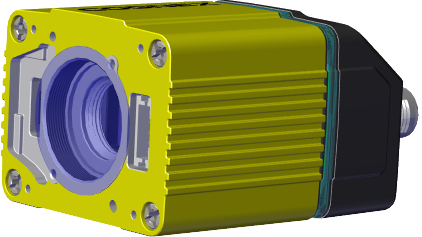

1. Remove the adhesive protective film covering the threaded lens opening.

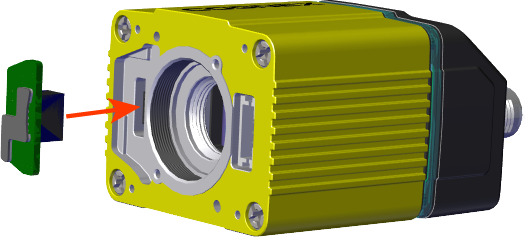

2. Add the small PCB into the light connector.

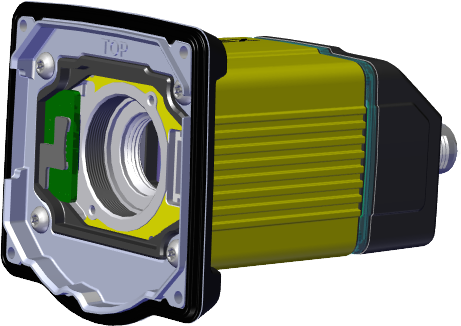

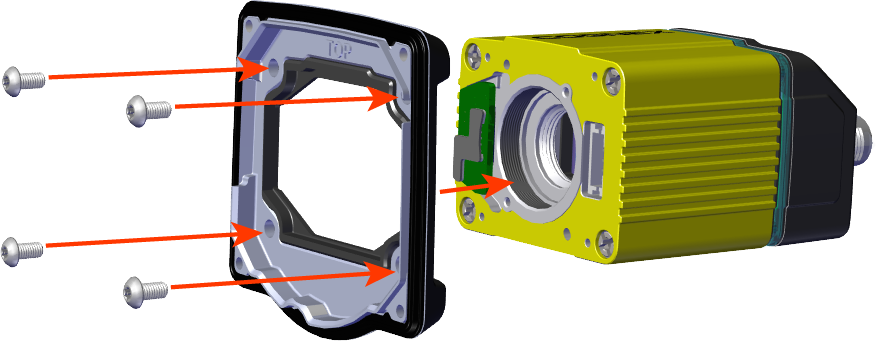

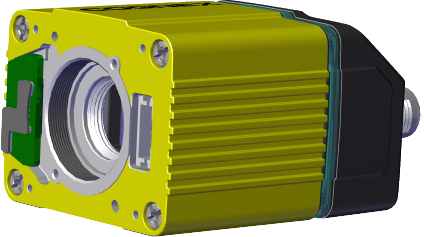

3. Attach the DM470 HPIT adapter plate.

M3 x 6 mm screws

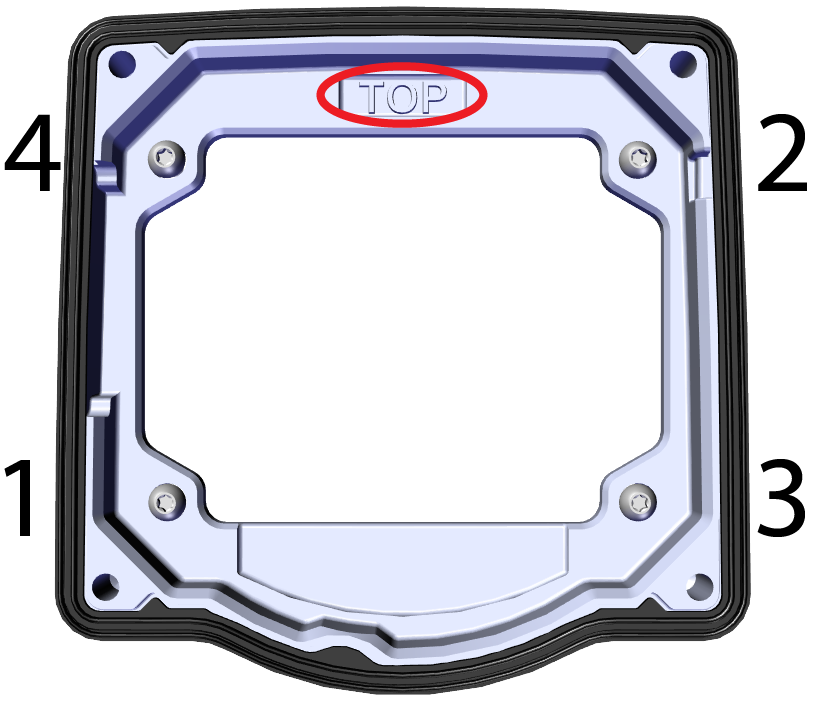

Note: Use a 2 mm hex wrench to torque the screws to 0.34 Nm (3 in-lb). Tighten in sequence.

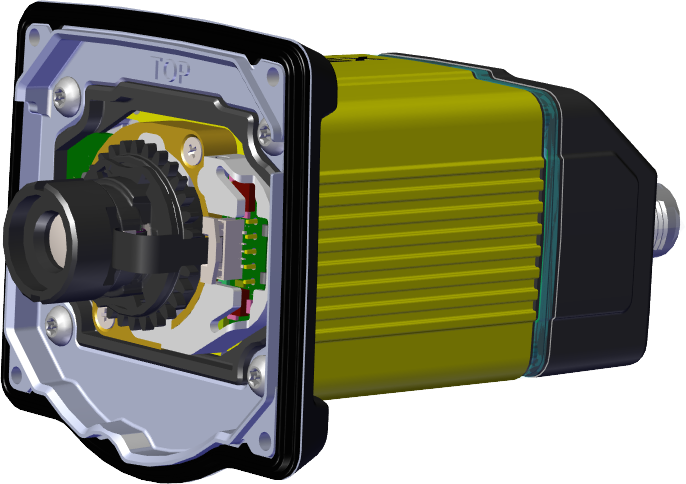

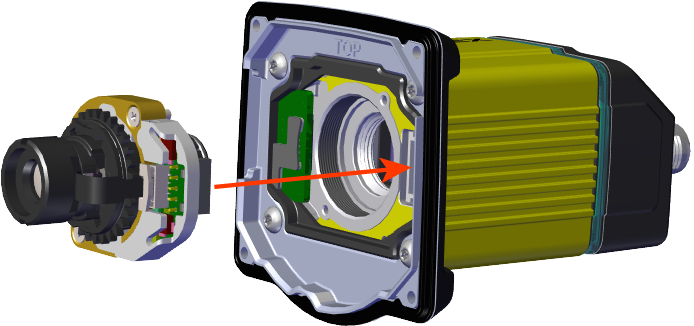

4. Attach the lens module and fix the lens with the captive screws.
Note: Use a Phillips screwdriver (PH0) to torque the screws to 0,08 Nm (0.7 in-lb). Tighten in sequence.

• Do not push or pull the lens at its barrel – push or pull on the metal housing.

• Be careful not to touch the gear ring with the screwdriver.

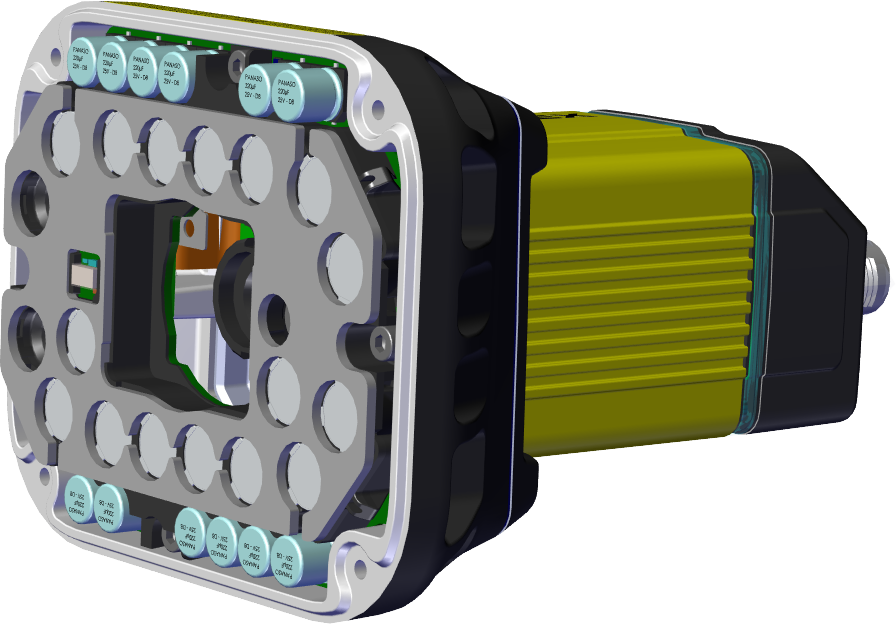

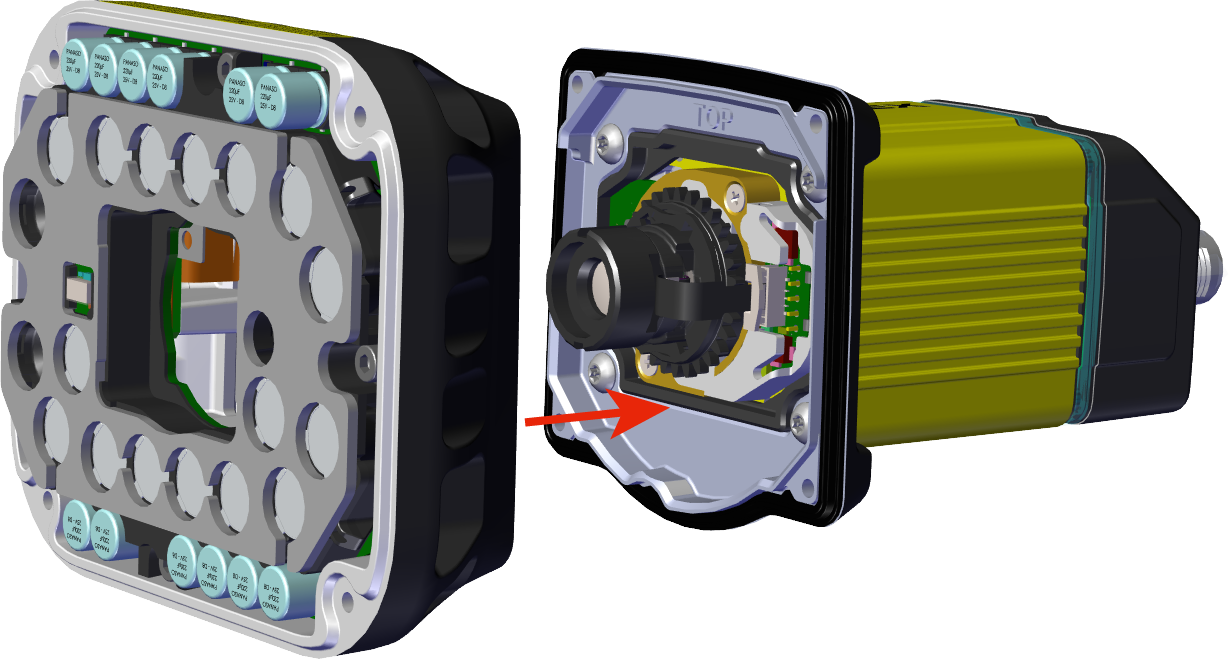

5. Attach the light module.

M3 x 6.35 mm captive screws

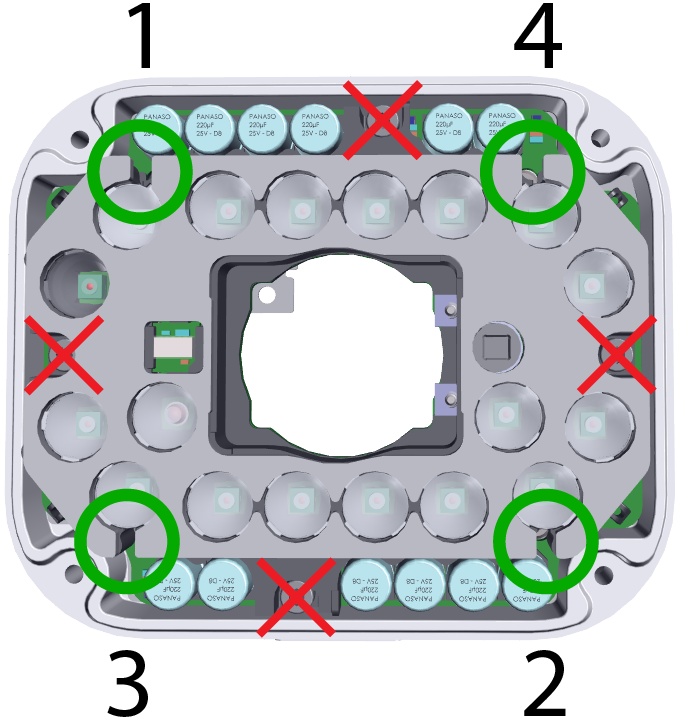

Note: Use a 2 mm hex wrench to torque the captive screws to 0.34 Nm (3 in-lb). Tighten in sequence.

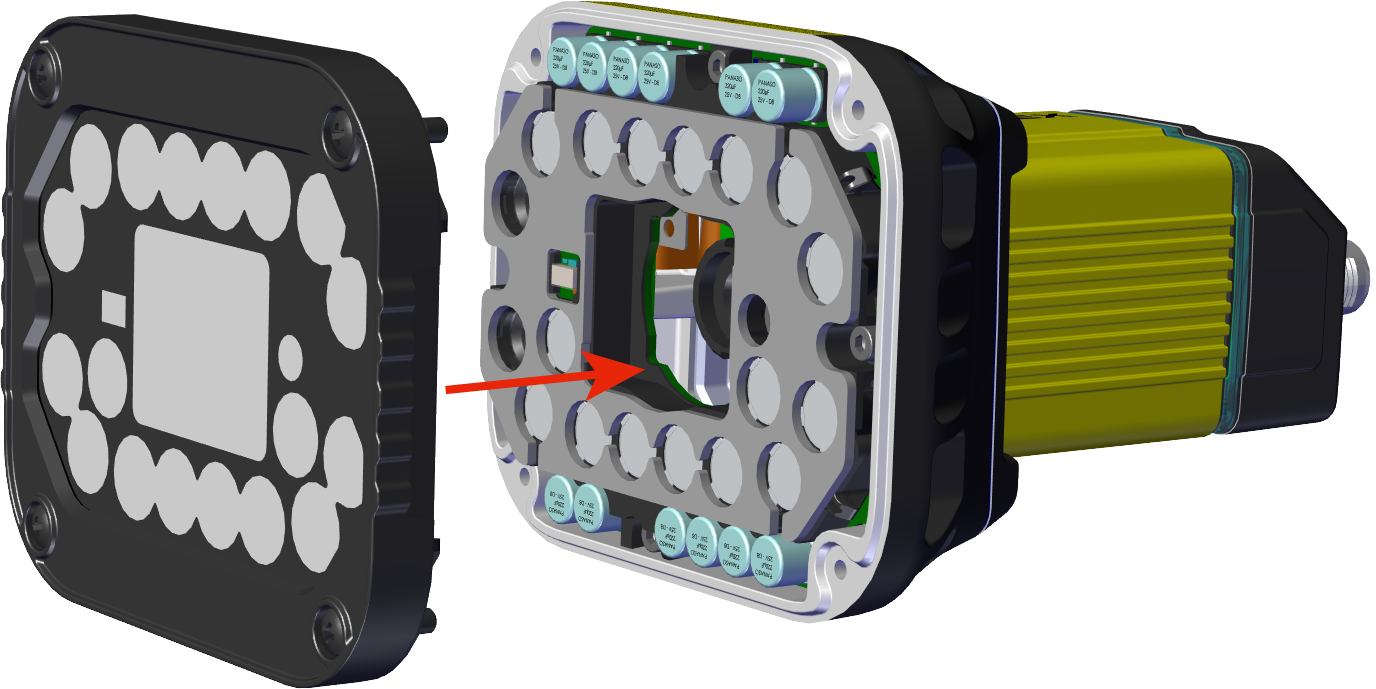

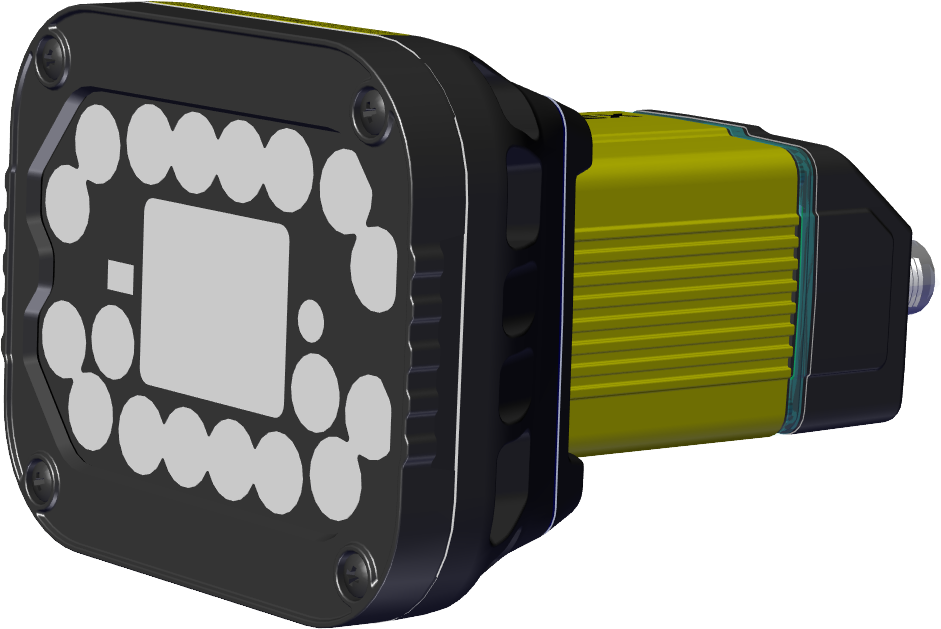

6. Attach the front cover.

M3 x 12 mm captive screws

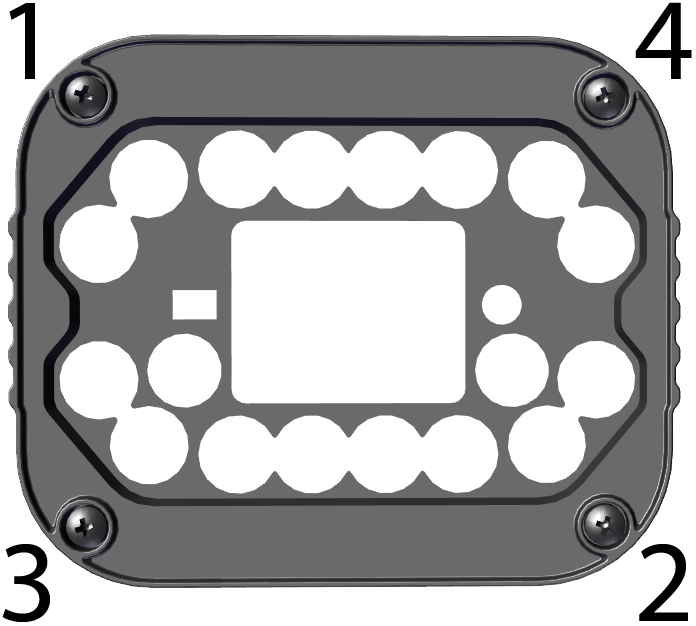

Note: Use a Phillips Screwdriver (PH0) to torque the captive screws to 0.31 Nm (2.75 in-lb). Tighten in sequence.


Note: Remove the adhesive protective film from the front cover after Step 6.
