Field of View and Reading Distances
The following maps show the field of view of the DataMan 370 series readers. Reading distance values are also provided for 1-D and 2-D example code distances.
For the C-mount (or other non-Cognex) and S-Mount lenses, the focal length of the lens, focus setting, and aperture setting determine the field of view and reading distance.
The ruler shows the reading distance range. The grid with the FOV cone shows horizontal and vertical FOV values above the arrows.

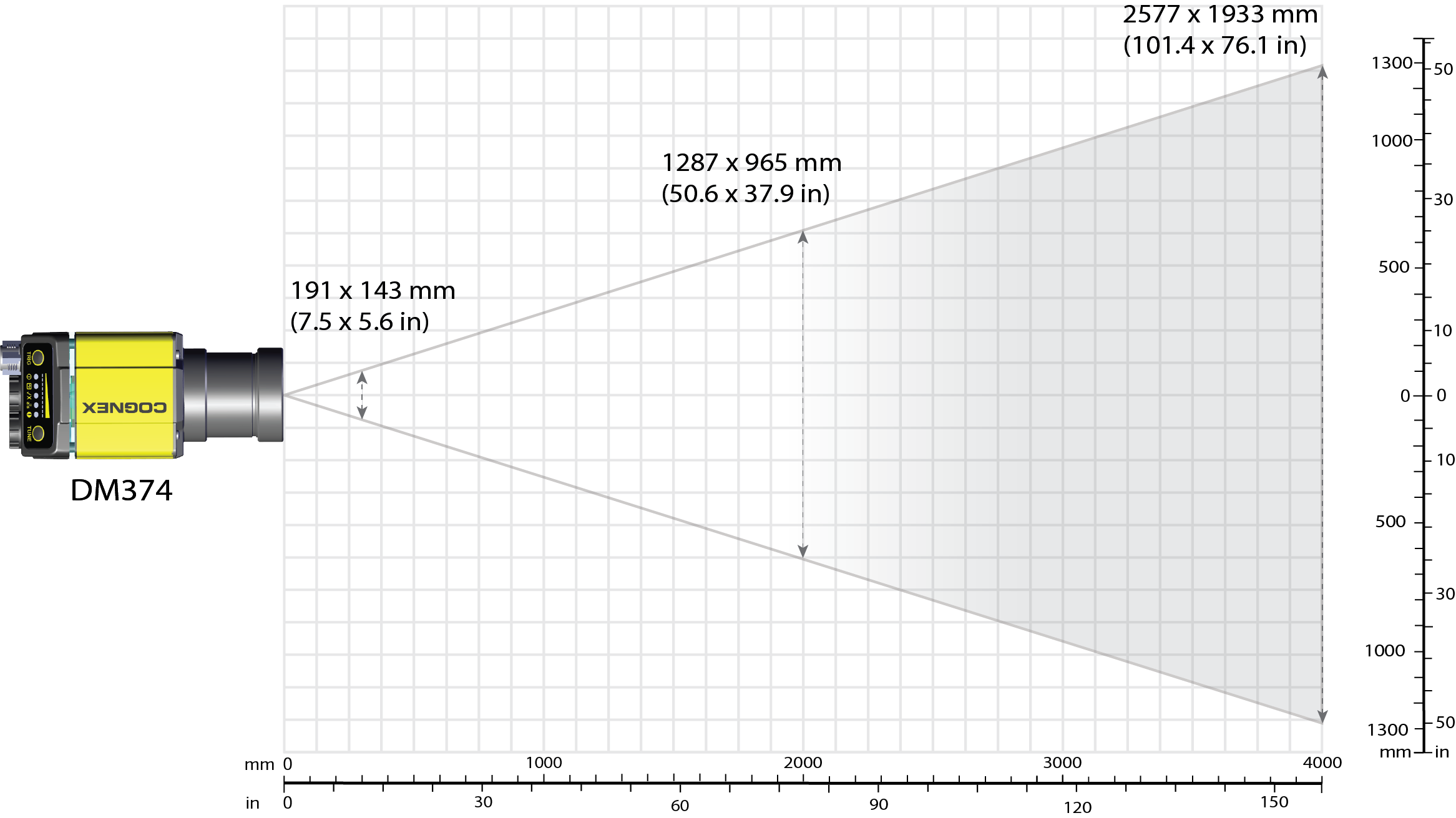

Reading Distance and Field of View (DataMan 370 Readers with a 10 mm High-Speed Liquid Lens)
The following map shows the FoV of the DataMan 370 series readers with a 10 mm high-speed liquid lens.
The FoV values are shown as follows:
|
Device |
Distances in mm / 1D min code 10 mm HSLL |
Distances in mm / 2D min code 10 mm HSLL |
||
|---|---|---|---|---|
|
|
445 |
6 MIL |
307 |
6 MIL |
|
591 |
8 MIL |
408 |
8 MIL |
|
|
738 |
10 MIL |
509 |
10 MIL |
|
|
958 |
13 MIL |
660 |
13 MIL |
|
|
1104 |
15 MIL |
761 |
15 MIL |
|
|
1471 |
20 MIL |
1013 |
20 MIL |
|

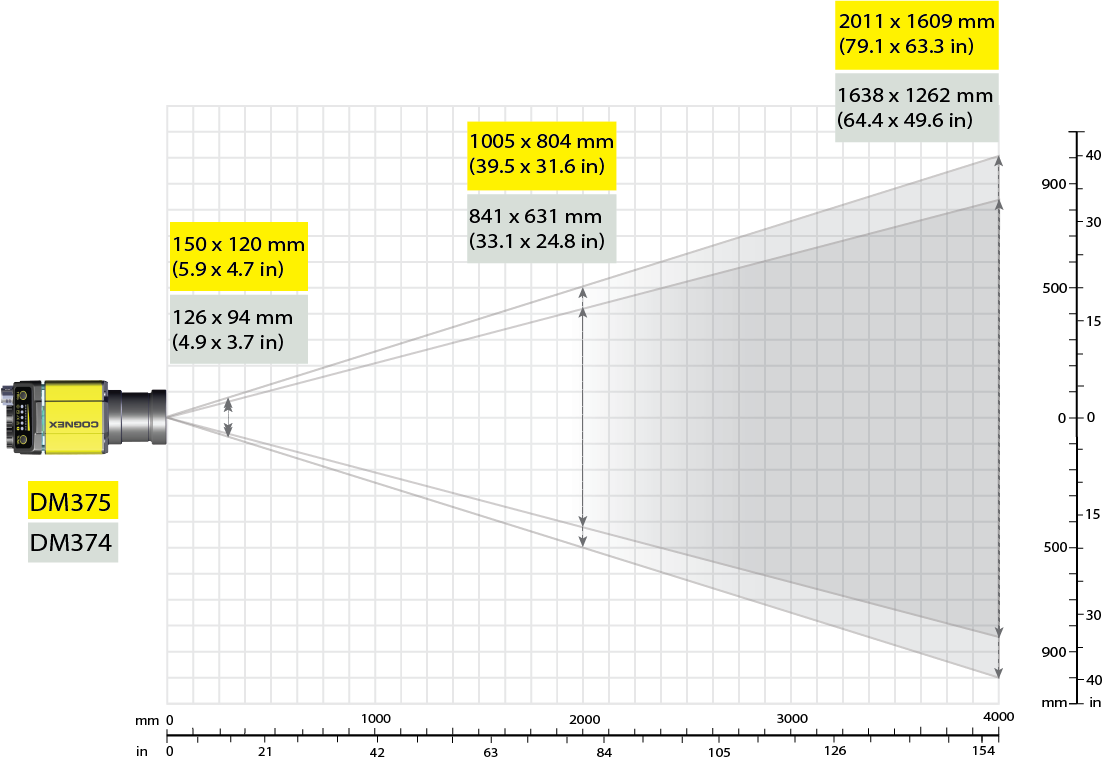

Reading Distance and Field of View (DataMan 370 Readers with a 16 mm High-Speed Liquid Lens)
The following map shows the FoV of the DataMan 370 series readers with a 16 mm high-speed liquid lens.
The FoV values are shown as follows:
|
Device |
Distances in mm / 1D min code 16 mm HSLL |
Distances in mm / 2D min code 16 mm HSLL |
||
|---|---|---|---|---|
|
|
676 |
6 MIL |
465 |
6 MIL |
|
901 |
8 MIL |
620 |
8 MIL |
|
|
1125 |
10 MIL |
774 |
10 MIL |
|
|
1462 |
13 MIL |
1006 |
13 MIL |
|
|
1687 |
15 MIL |
1160 |
15 MIL |
|
|
2249 |
20 MIL |
1547 |
20 MIL |
|

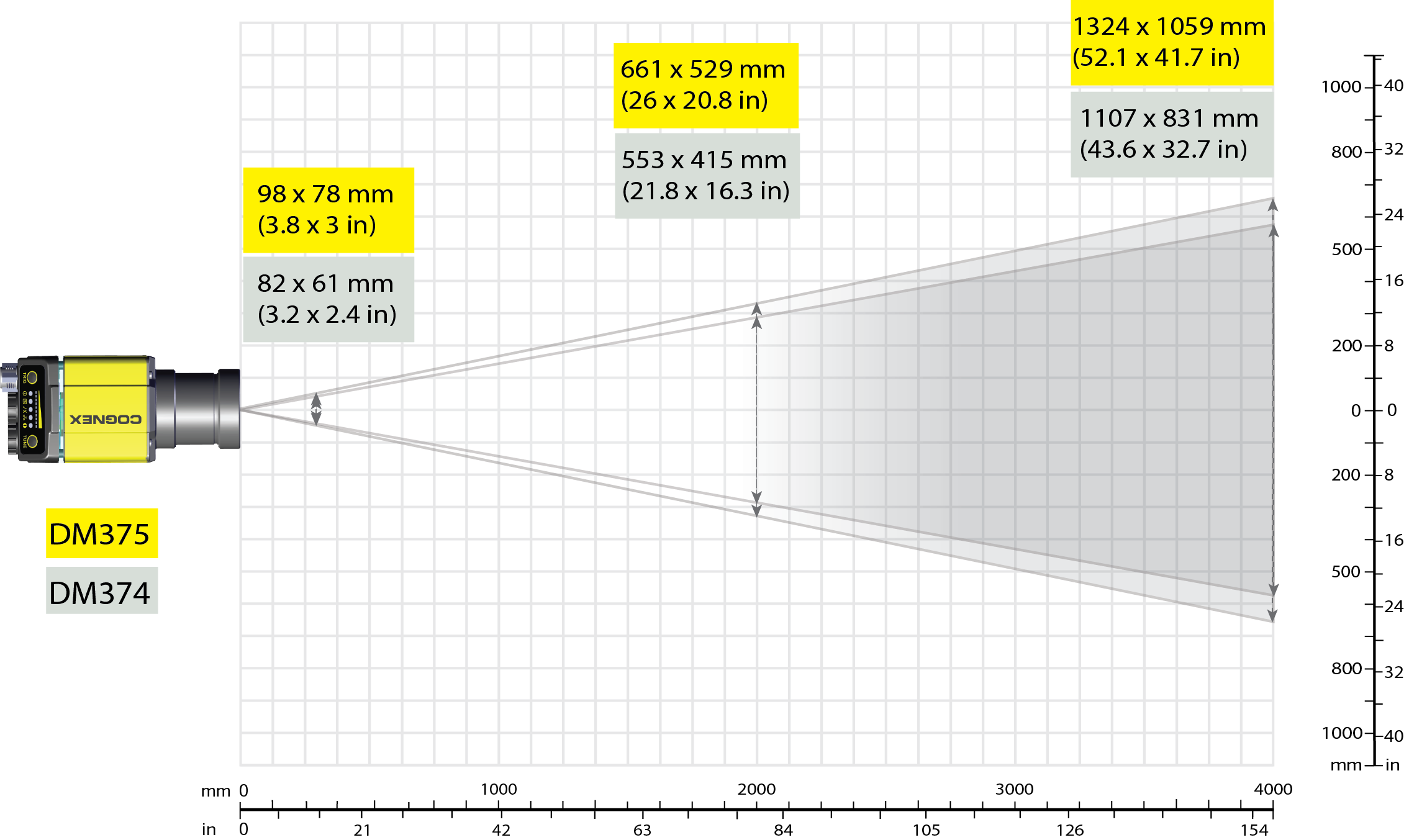

Reading Distance and Field of View (DataMan 370 Readers with a 24 mm High-Speed Liquid Lens)
The following map shows the FoV of the DataMan 370 series readers with a 24 mm high-speed liquid lens.
The FoV values are shown as follows:
|
Device |
Distances in mm / 1D min code 24 mm HSLL |
Distances in mm / 2D min code 24 mm HSLL |
||
|---|---|---|---|---|
|
|
1029 |
6 MIL |
709 |
6 MIL |
|
1370 |
8 MIL |
944 |
8 MIL |
|
|
1711 |
10 MIL |
1178 |
10 MIL |
|
|
2223 |
13 MIL |
1530 |
13 MIL |
|
|
2564 |
15 MIL |
1764 |
15 MIL |
|
|
3417 |
20 MIL |
2351 |
20 MIL |
|

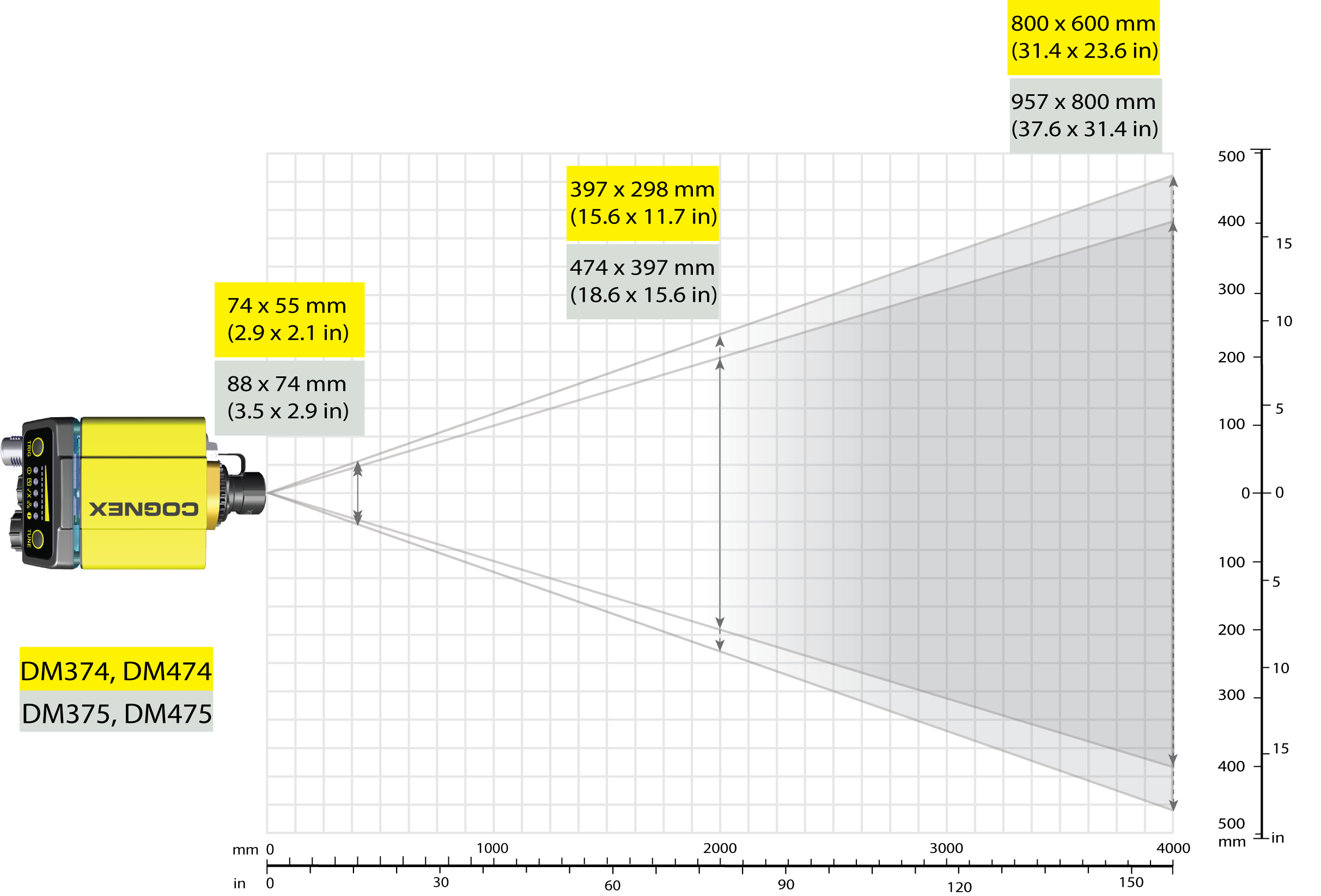

Reading Distance and Field of View (DataMan 370 Readers with a 35 mm High-Speed Liquid Lens)
The following map shows the FoV of the DataMan 370 series readers with a 35 mm high-speed liquid lens.
The FoV values are illustrated with a DM374 reader.
|
Device |
Distances in mm / 1D min code 35 mm HSLL |
Distances in mm / 2D min code 35 mm HSLL |
||
|---|---|---|---|---|
|
|
1300 |
6 MIL |
835 |
6 MIL |
|
1750 |
8 MIL |
1110 |
8 MIL |
|
|
2170 |
10 MIL |
1390 |
10 MIL |
|
|
2820 |
13 MIL |
1800 |
13 MIL |
|
|
3250 |
15 MIL |
2080 |
15 MIL |
|
|
4335 |
20 MIL |
2770 |
20 MIL |
|
