DataMan 260 Readers with a 6.2 mm Lens
Short Range (Focused to 105 mm)
The following tables show the Field of View (FoV) widths of the 6.2 mm lens focused to 105 mm at various distances.
DM260
| Distances in mm | 2D min. code | 1D min. code |
|---|---|---|
| 40 | 4 MIL | 2 MIL |
| 65 | 5 MIL | 3 MIL |
| 105 | 10 MIL | 6 MIL |
DM
| Distances in mm | 2D min. code | 1D min. code |
|---|---|---|
| 40 |
|
2 MIL |
| 65 |
|
|
| 105 |
|
|

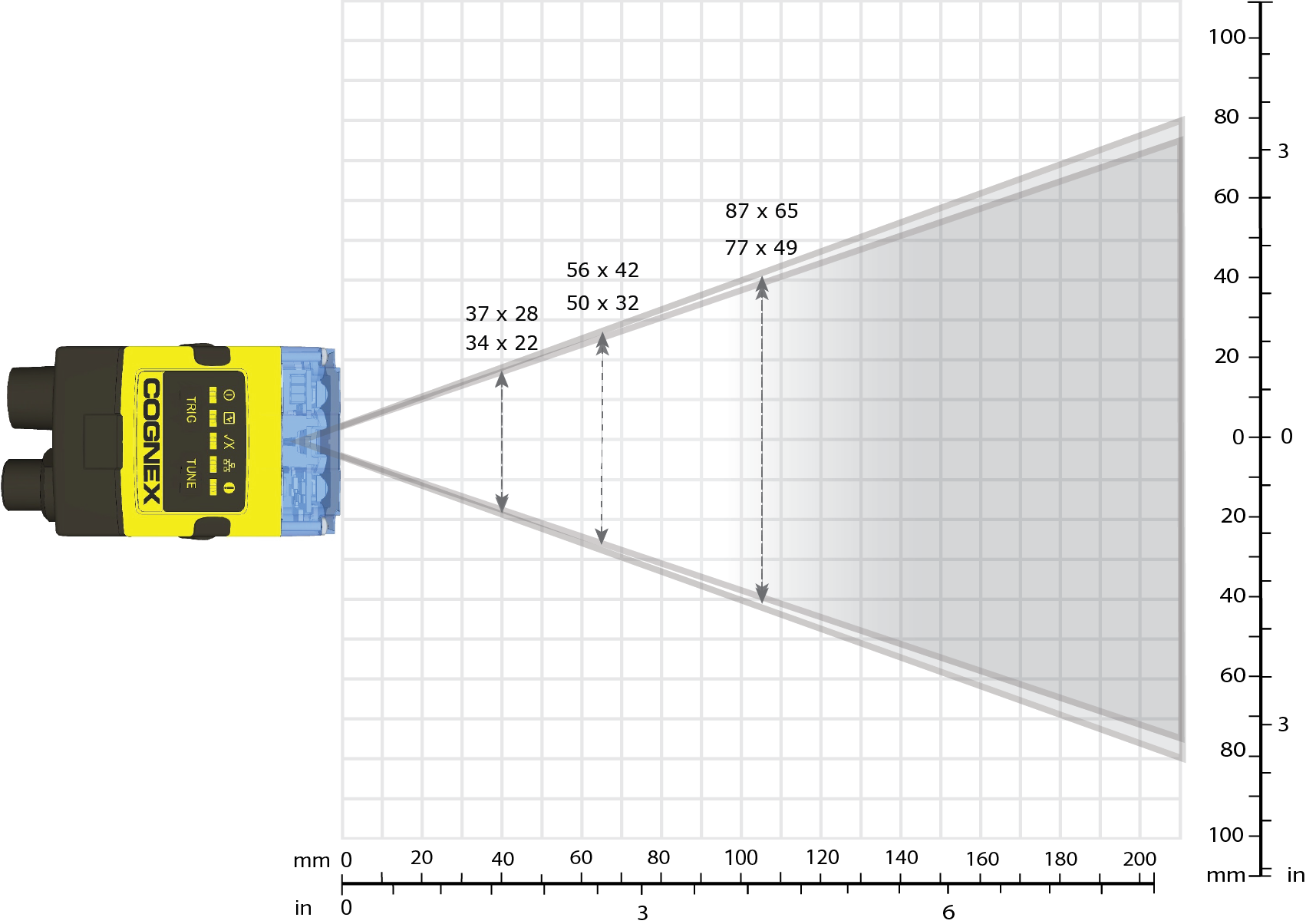

The following map shows the FoV of the DataMan 260 series readers with a 6.2 mm lens. The horizontal and vertical field of view is shown for working distances of 40 mm, 65 mm and 105 mm.
The FoV values are shown as follows:
- outer:
- inner: DM260
Long Range (Focused to 190 mm)
The following tables show the FoV widths of the 6.2 mm lens focused to 190 mm at various distances.
DM260
| Distances in mm | 2D min. code | 1D min. code |
|---|---|---|
| 150 | 12 MIL | 6 MIL |
| 190 | 15 MIL | 10 MIL |
| 225 | 18 MIL | 10 MIL |
| 375 | 30 MIL | 15 MIL |
| 500 | 35 MIL | 20 MIL |
| 1 m | - | 35 MIL |
DM
| Distances in mm | 2D min. code | 1D min. code |
|---|---|---|
| 150 | 10 MIL | 5 MIL |
| 190 | 12 MIL | 6 MIL |
| 225 | 15 MIL | 6 MIL |
| 375 | 20 MIL | 10 MIL |
| 500 | 25 MIL | 15 MIL |
| 1 m | - | 30 MIL |

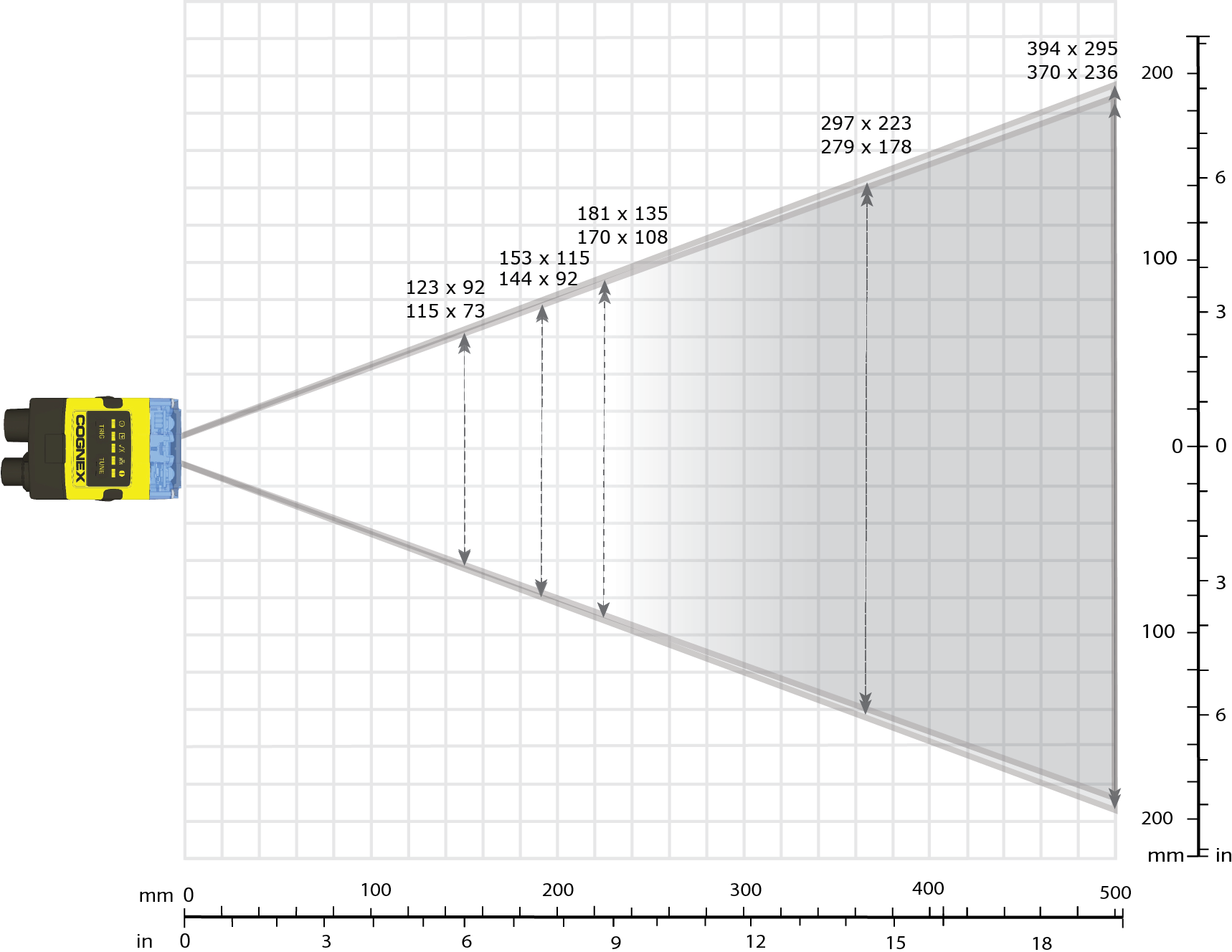

The following map shows the FoV of the DataMan 260 series readers with a 6.2 mm lens. The horizontal and vertical field of view is shown for working distances of 150 mm, 190 mm, 225 mm, 375 mm and 500 mm.
The FoV values are shown as follows:
- outer:
- inner: DM260
