DataMan 150 Digital Input Wiring Diagrams

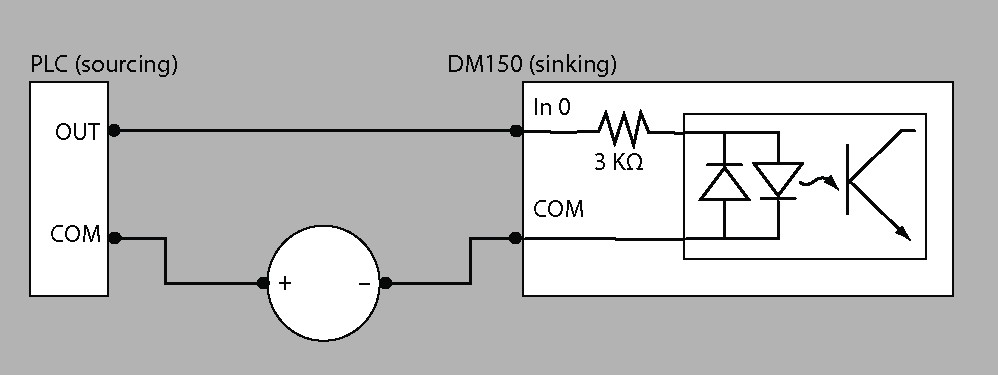

Current Sink Configuration

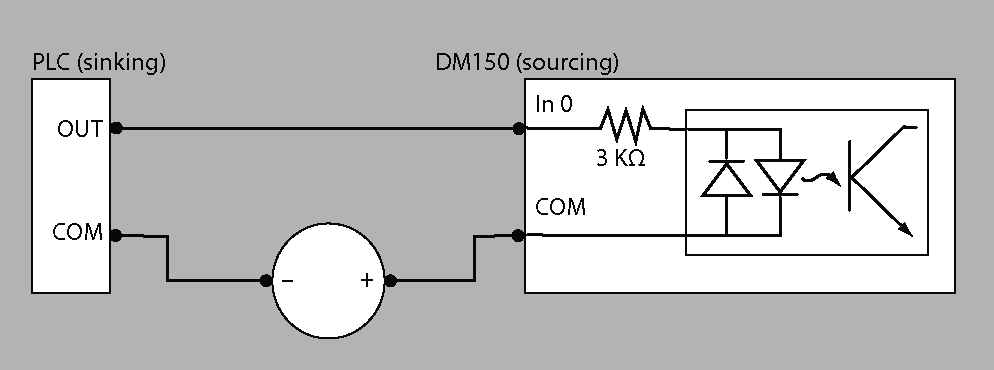

Current Source Configuration

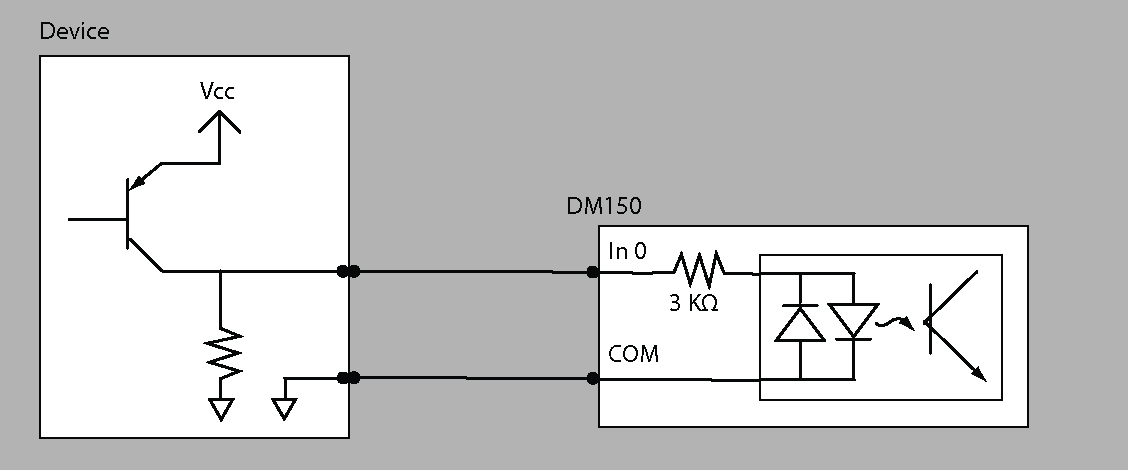

PNP Configuration

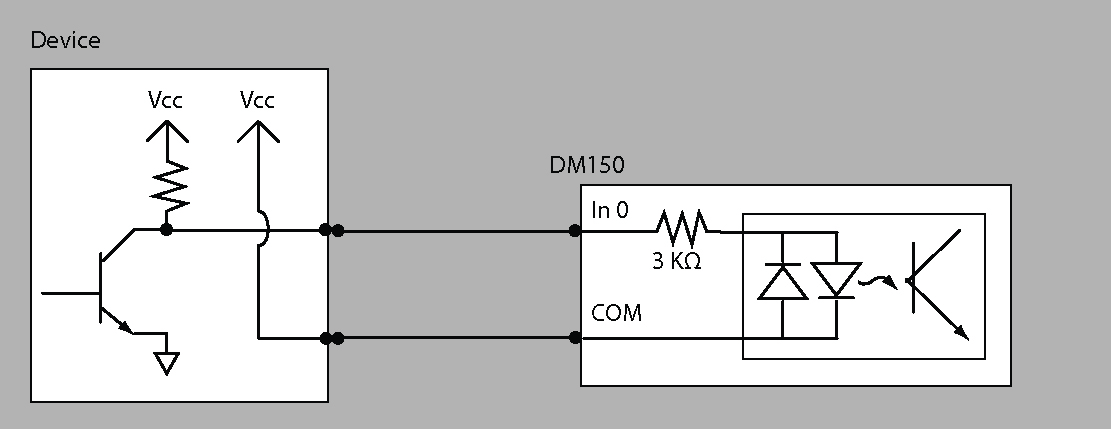

NPN Configuration
