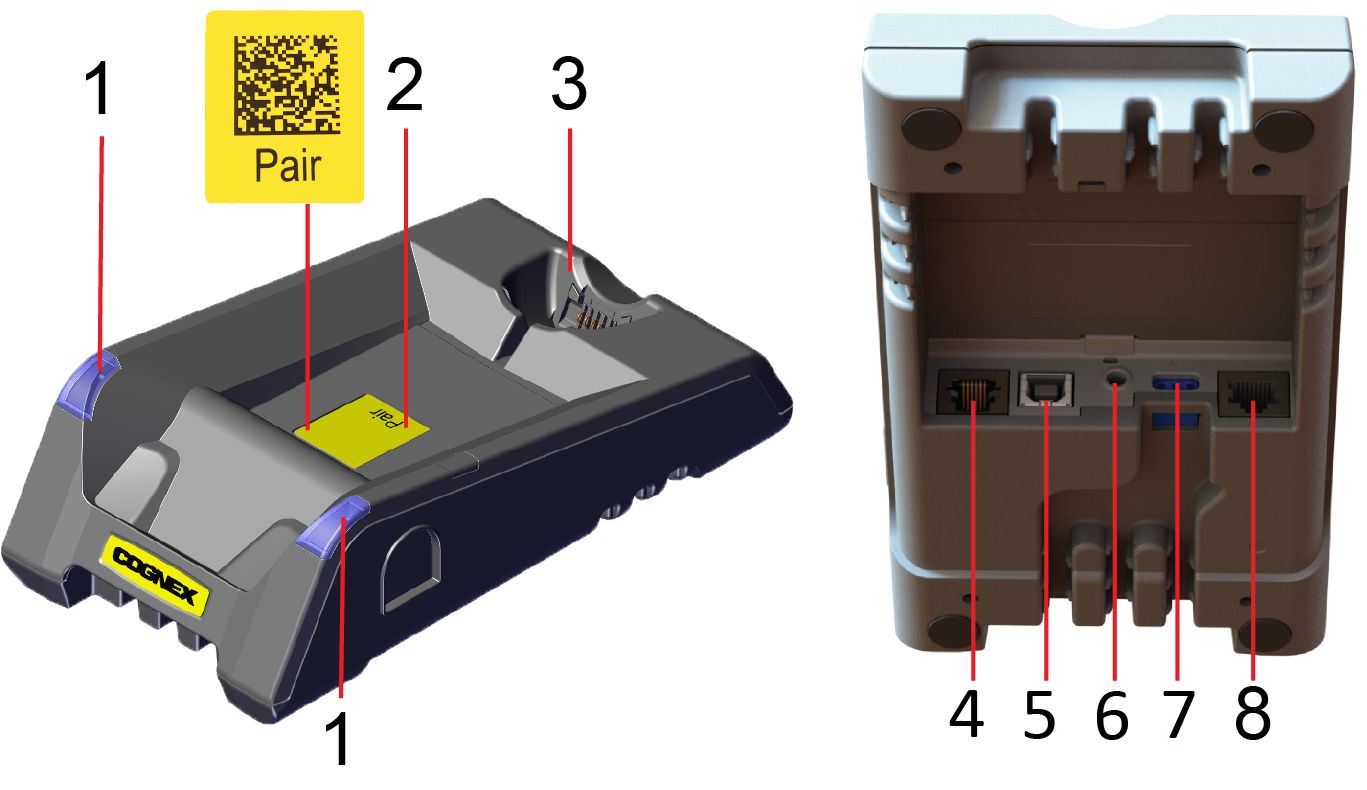

Physical Layout of the Base Station
DMA-IBASE-BT-02
|
|
|
| 1 | Base station status indicators |
| 2 | PAIR sticker - Reading the code pairs the base station with the device |
| 3 |
Connection point to the reader:
|
| 4 | RS-232 |
| 5 | USB |
| 6 | Power plug (24V, max. 15W) |
| 7 | Alternative power supply connector (24V, max. 15W, polarity marked on the plastic part near the connector). Recommended wire diameter is 14- 18 AWG |
| 8 | Ethernet |
Base station status indicators:
- Power: RED = base powered / BLINK = wrong reader in base
- Communication: BLUE = Wireless link / BLINK = Wireless communication
- Cradle connections: GREEN = reader properly inserted / BLINK = cradle USB interface communication
Note:
- DMA-IBASE-BT-02 supports Ethernet
