Verifying a 2D Barcode

To verify a Data Matrix code or a QR code in the TruCheck Verification Window:

  1. Navigate to the Main tab.

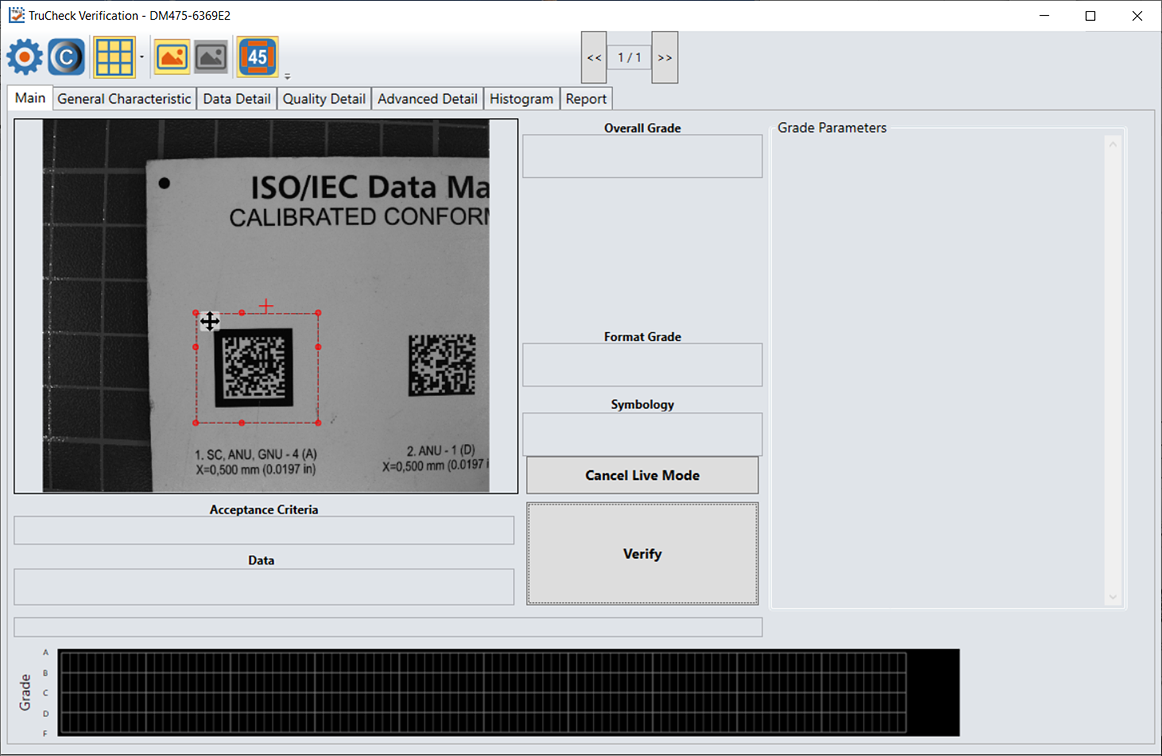

  1. Select Go Live and center your symbol in the field of view, or press and release the trigger button to Go Live.

    Note: After selecting Go Live, the button changes to Verify.

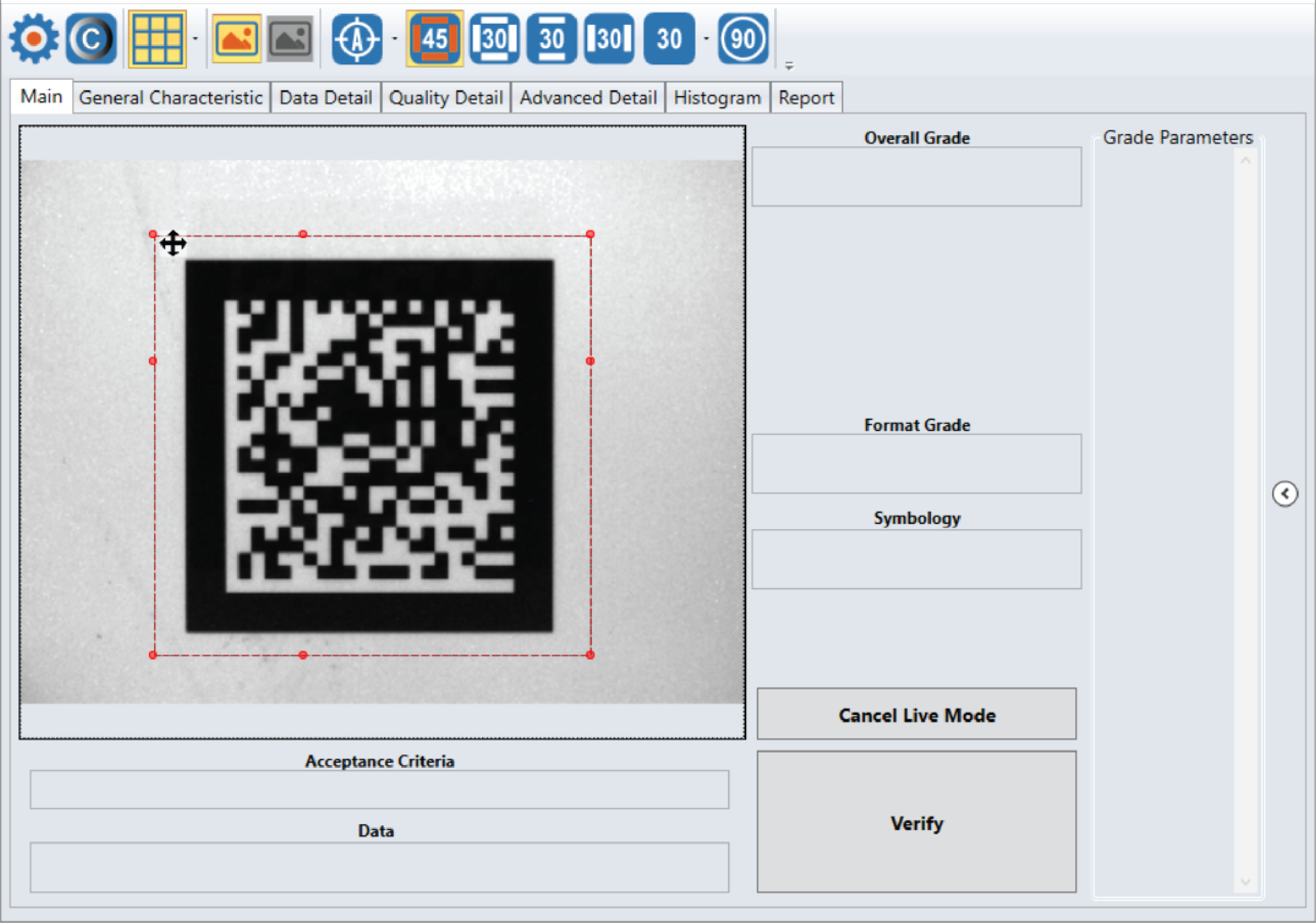

  2. If necessary, draw a selection region around the code to be verified, if necessary.

    Note: The region must be drawn around the outside perimeter of the code including quiet zones. More information on properly defining regions is explained in Selecting Regions.

  3. Select Verify, or press and release the trigger button on the verifier to begin verification.

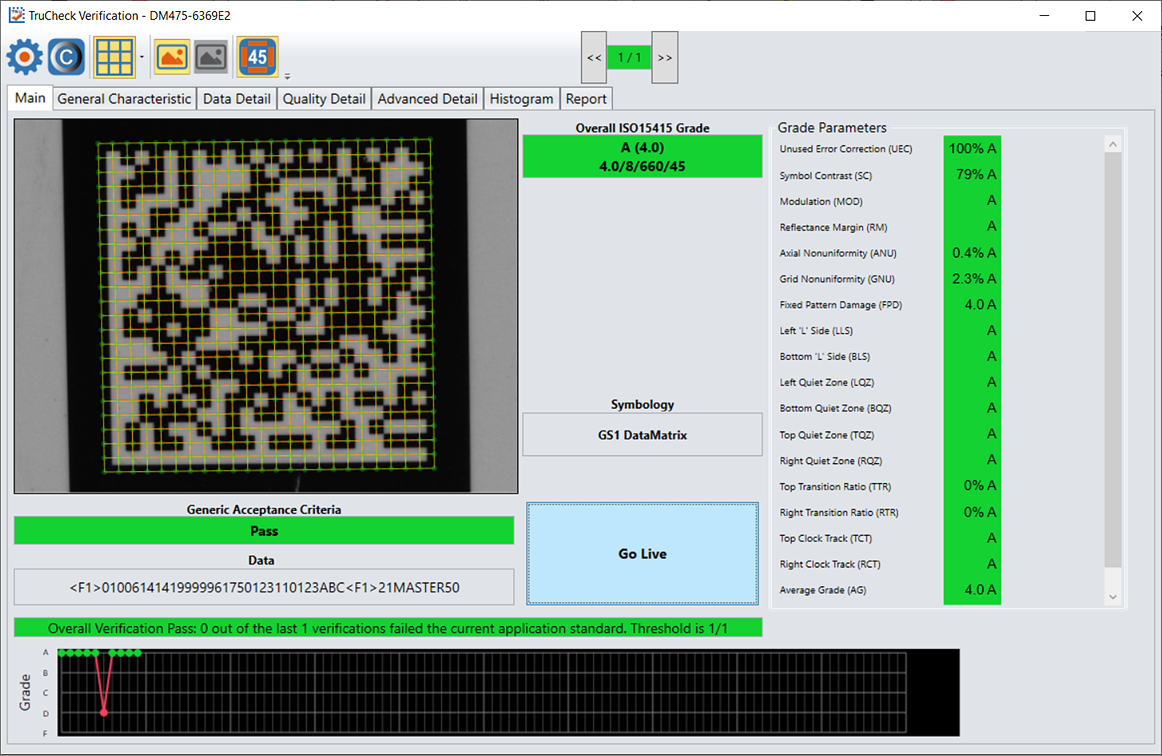

    Note: The following screenshot shows a successful 2D barcode verification. Depending on grading and application standards, additional details are displayed.

Note: The tool bar buttons and tabs shown on the screen are useful for in-depth analysis of codes. For more information, see Examining the Results.
