Field of View and Reading Distances

The following maps show the field of view of the DataMan 360 series readers. Reading distance values are also provided for 1-D and 2-D example code distances.

For the C-mount (or other non-Cognex) and S-Mount lenses, the focal length of the lens, focus setting, and aperture setting determine the field of view and reading distance.

Note: Due to tolerances, ranges can vary by +/- 5 % from unit to unit.

Reading Distance and Field of View (DataMan 360 Readers with a 10.3 mm Liquid Lens)

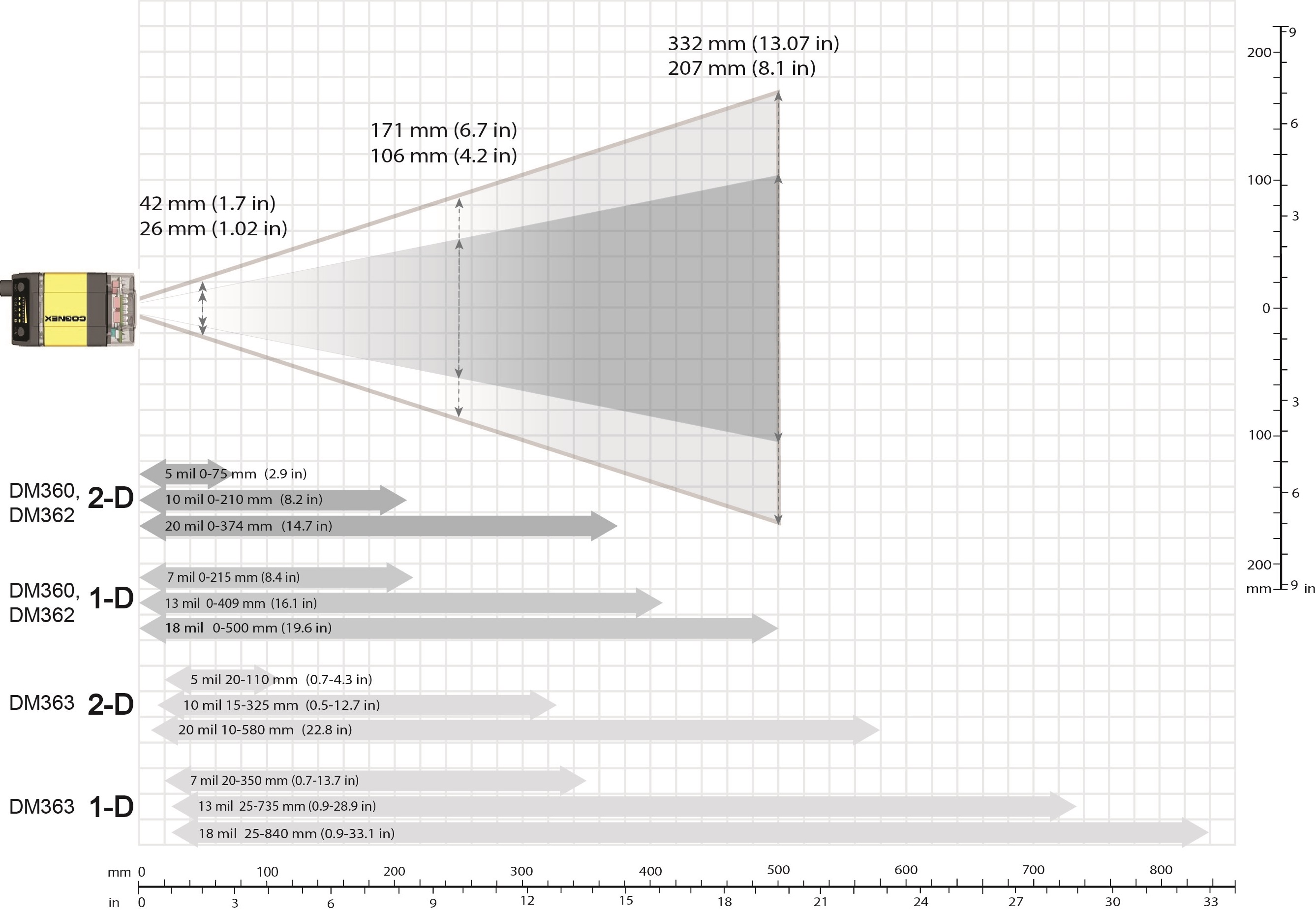

The map below shows the field of view (FoV) of the DataMan 360 readers with a 10.3 mm lens (with or without a liquid lens).

The FoV values are shown as follows:

  • outer: DM362, DM363
  • inner: DM360

The reading distances for the DM360 and DM362 readers are the same. DM363 features a higher resolution and more pixels in about the same sensor size.

The following table shows the FoV widths in mm at various distances.

Distances in mm DM360 DM362 / DM363
50 26 42
100 46 74
150 66 106
250 106 171
500 207 332

Reading Distance and Field of View (DataMan 360 Readers with a 16 mm Lens)

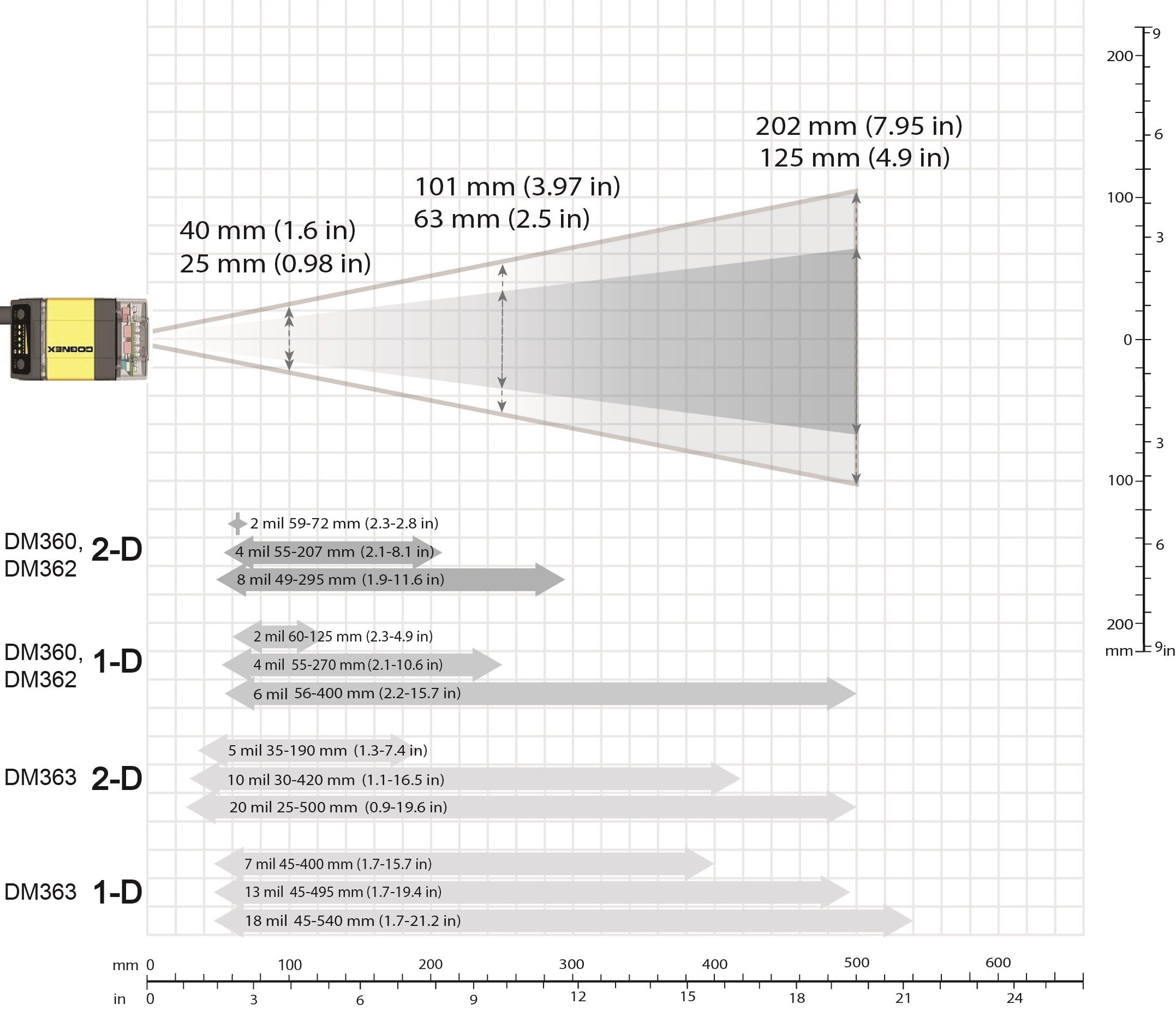

The following map shows the FoV of the DataMan 360 series readers with a 16 mm lens.

The FoV values are shown as follows:

  • outer: DM362, DM363
  • inner: DM360

The reading distances for the DM360 and DM362 readers are the same. DM363 features a higher resolution and more pixels in about the same sensor size.

The following table shows the FoV widths in mm at various distances.

Distances in mm DM360 DM362 / DM363
50 13 20
100 25 40
150 38 60
250 63 101
500 125 202

Reading Distance and Field of View (DataMan 360 Readers with a 19 mm Lens with a Liquid Lens)

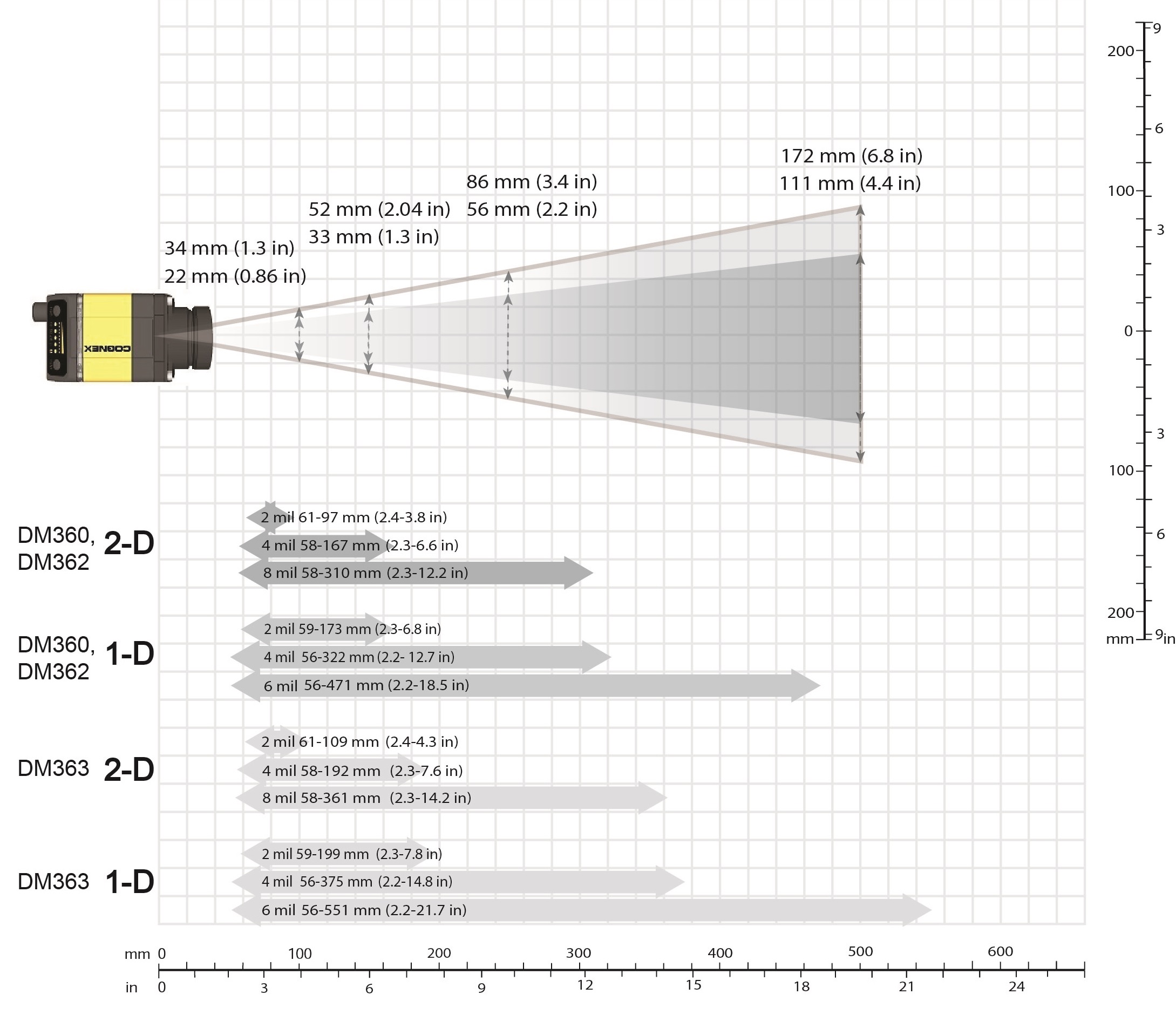

The map below shows the FoV of the DataMan 360 series readers with a 19 mm lens with a liquid lens.

The FoV values are shown as follows:

  • outer: DM362, DM363
  • inner: DM360

The reading distances for the DM360 and DM362 readers are the same. DM363 features a higher resolution and more pixels in about the same sensor size.

The following table shows the FoV widths in mm at various distances.

Distances in mm DM360 DM362 / DM363
50 11 17
100 22 34
150 33 52
250 56 86
500 111 172

Reading Distance and Field of View (DataMan 360 Readers with a 24 mm Lens with Liquid Lens)

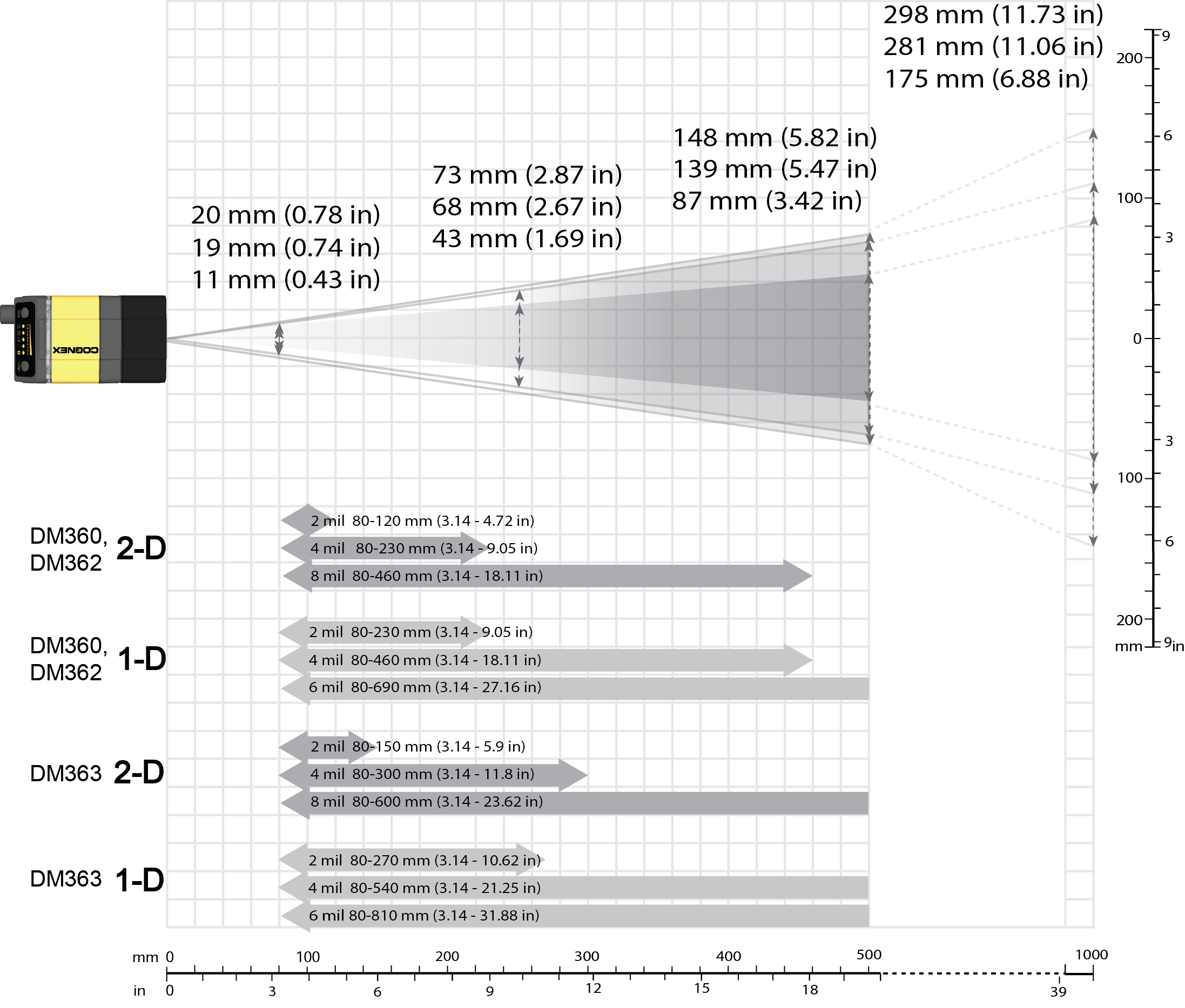

The following map shows the FoV of the DataMan 360 series readers with a 24 mm lens with a liquid lens and DM360-HPIL-RE-01 or DM360-HPIL-RE-P-01 cover.

The FoV values are shown as follows:

  • outer: DM363
  • middle: DM362
  • inner: DM360

The reading distances for the DM360 and DM362 readers are the same. DM363 features a higher resolution and more pixels in about the same sensor size.

The following table shows the FoV widths in mm at various distances.

Distances in mm DM360 DM362 DM363
80 11 19 20
250 43 68 73
500 87 139 148
1000 175 281 298

Reading Distance and Field of View (DataMan 360 Readers with a 25 mm Lens)

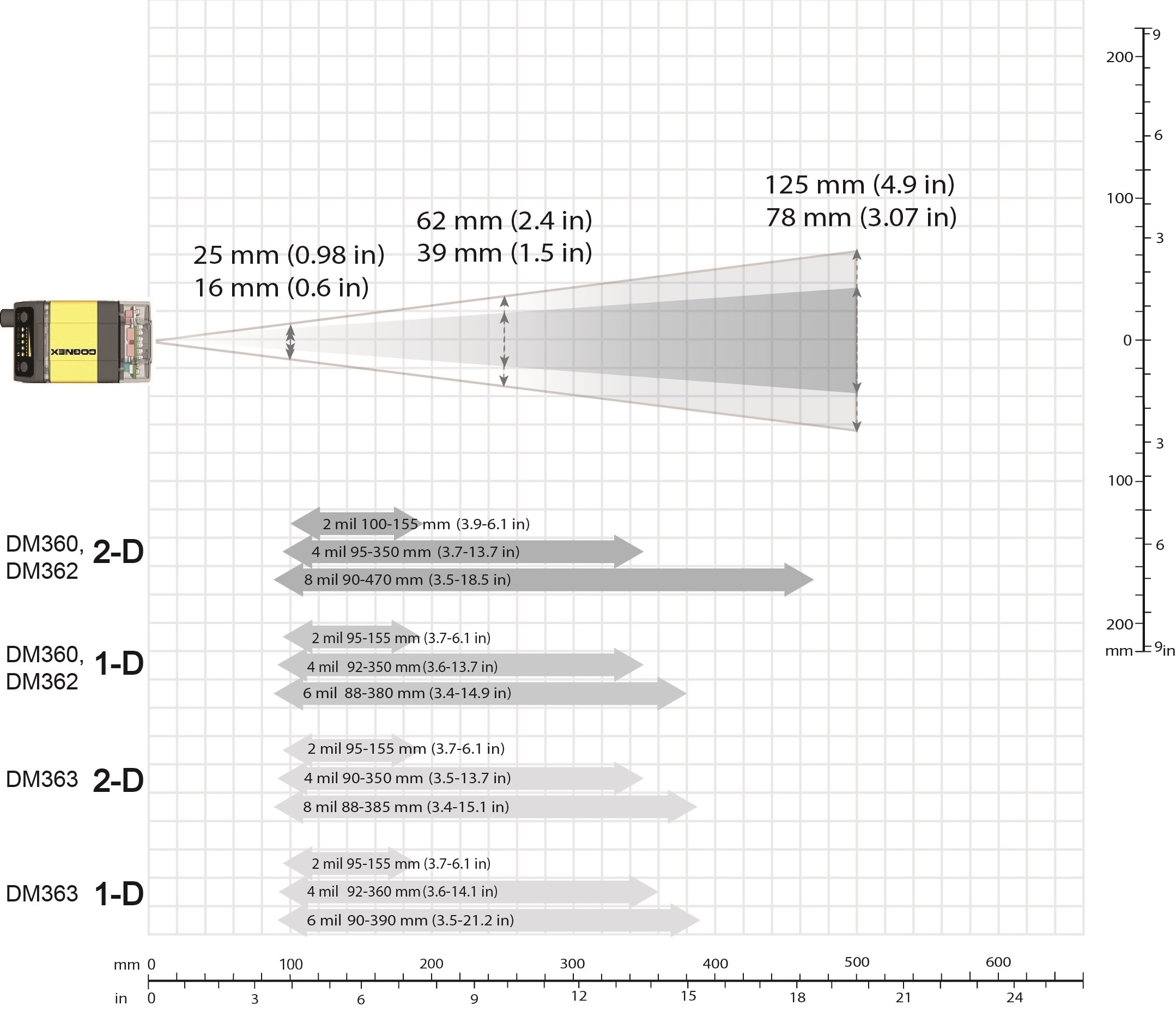

The following map shows the FoV of the DataMan 360 series readers with a 25 mm lens (with or without a liquid lens).

The FoV values are shown as follows:

  • outer: DM362, DM363
  • inner: DM360

The reading distances for the DM360 and DM362 readers are the same. DM363 features a higher resolution and more pixels in about the same sensor size.

The following table shows the FoV widths in mm at various distances.

Distances in mm DM360 DM362 / DM363
50 8 12
100 16 25
150 23 37
250 39 62
500 78 125
