You can clip unused wires short or use a tie made of non-conductive material to tie them back.

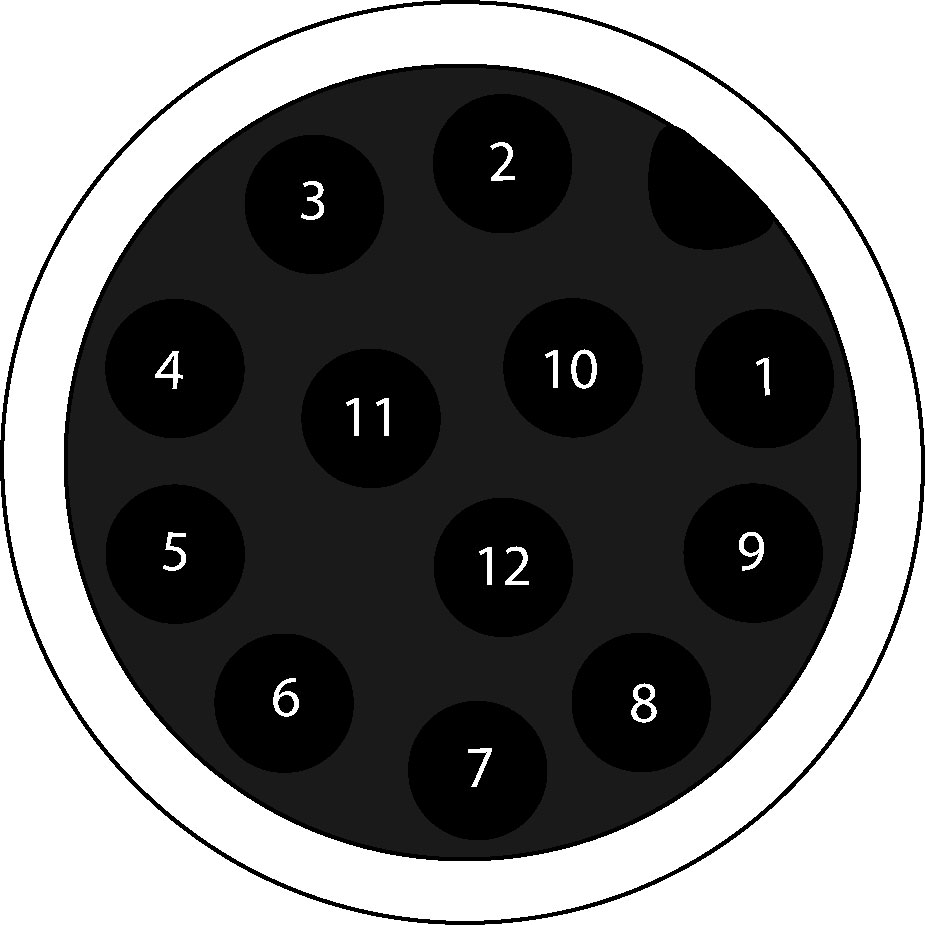

The figure on the left shows the plug on the device.
