Cables
| Connection cable 24V, I/O, RS-232 (y=S: straight / y=A: angled *, xx specifies length) | CCB-M12x12Fy-xx |
|
| Connection cable 24V, I/O, RS-232 | CCBL-05-01 | |

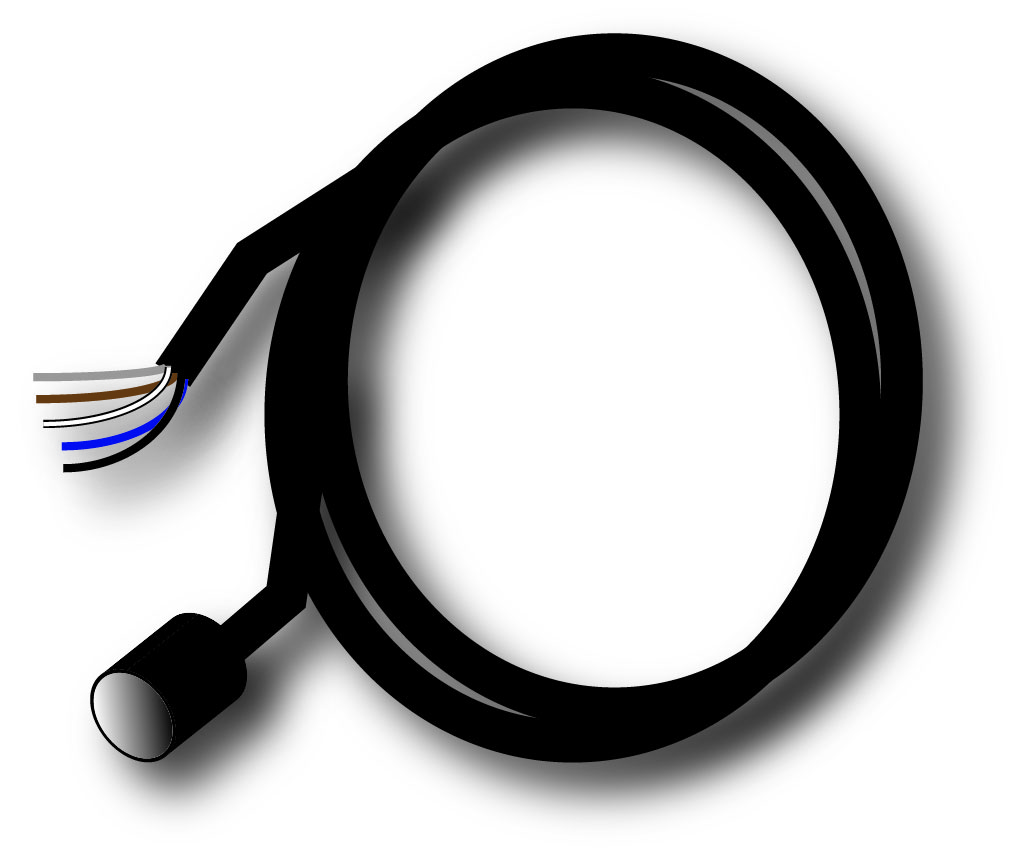

| Power and I/O breakout cable, M12-12 (straight, xx specifies length: 5m, 10m, 15m) | CCB-PWRIO-xx | |
| Power and I/O breakout cable, M12-12 (angled *, xx specifies length: 5m, 10m, 15m) | CCB-PWRIO-xxR | |

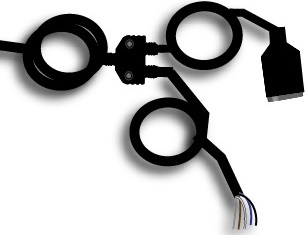

| Connection cable RS-232 | CCB-M12xDB9Y-05 |
|

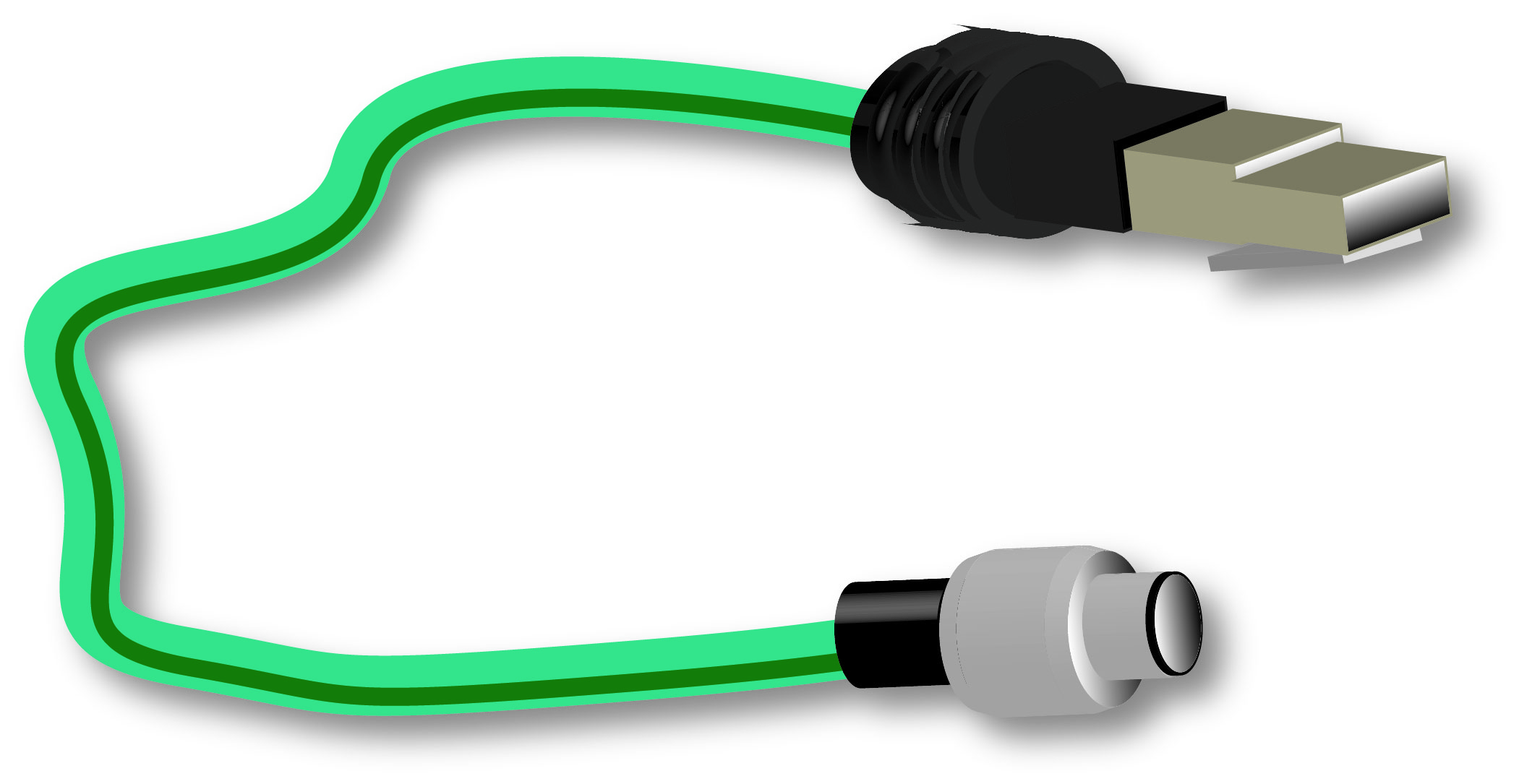

| Ethernet M12 to RJ-45 cable (y=1: straight / y=6: angled, x-xx specifies length) | CCB-84901-y00x-xx |
|

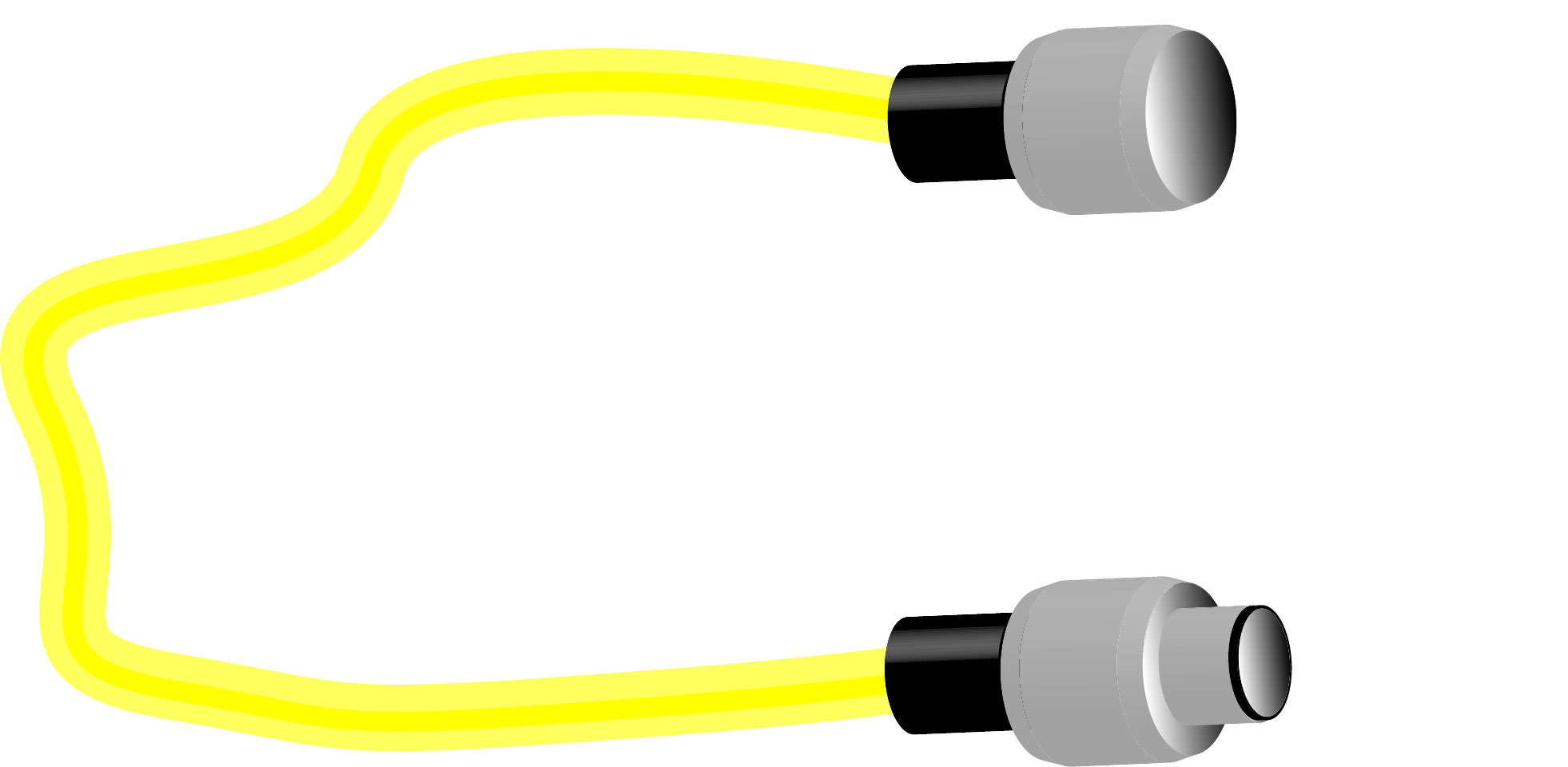

| External Light cable (xxx specifies length) | CCB-M12x4MS-xxx |
|
| External Light cable (xx specifies length: 0.5m, 1m, 2m, 5m) | CCB-M12LTF-xx |
|

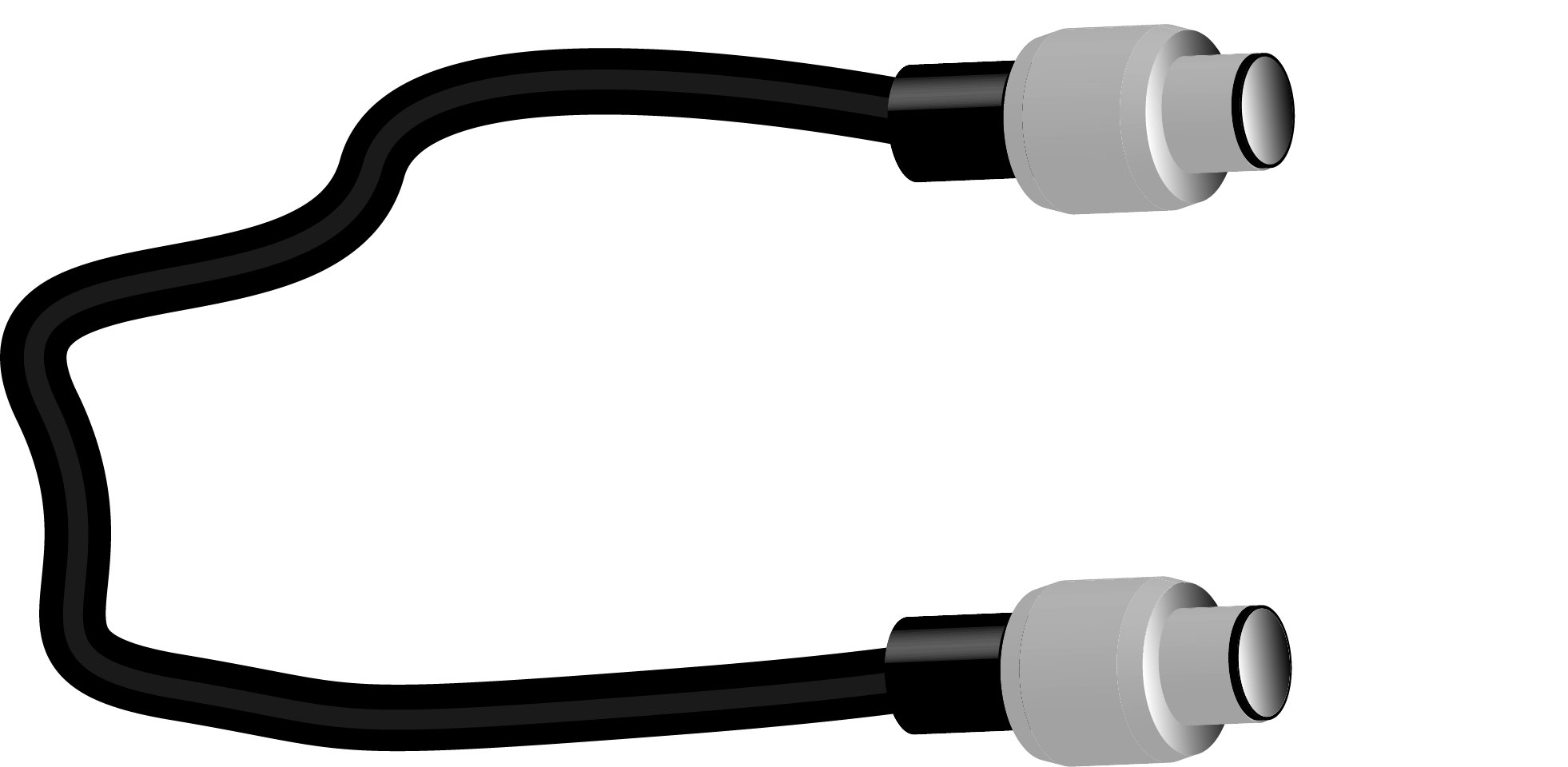

| I/O extension cable, 5m straight | CKR-200-CBL-EXT |
|
|

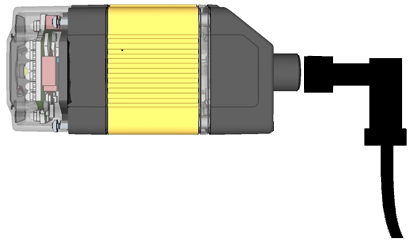

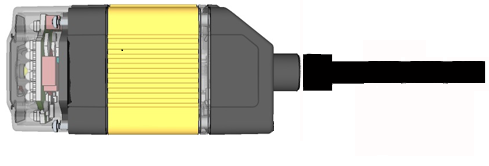

* DM360 with straight
and angled cable
|
