5m I/O Breakout Cable (CCBL-05-01)
The I/O cable provides access to trigger and high-speed outputs. You can clip unused wires short or use a tie made of non-conductive material to tie them back.
For RS-232, use the Power Supply return path for ground.
The drawing on the left shows the plug on the device.

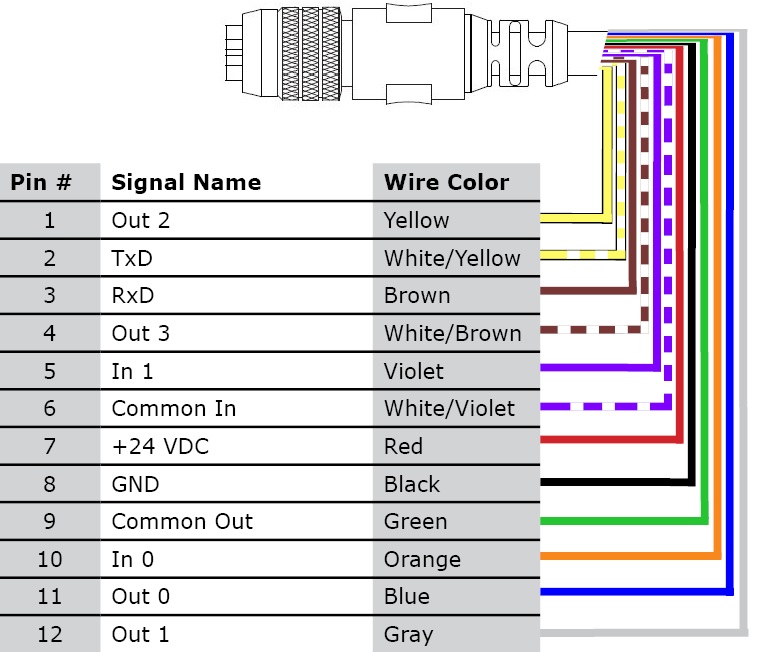

Signal: 24 VDC Ethernet Model
|
|
|

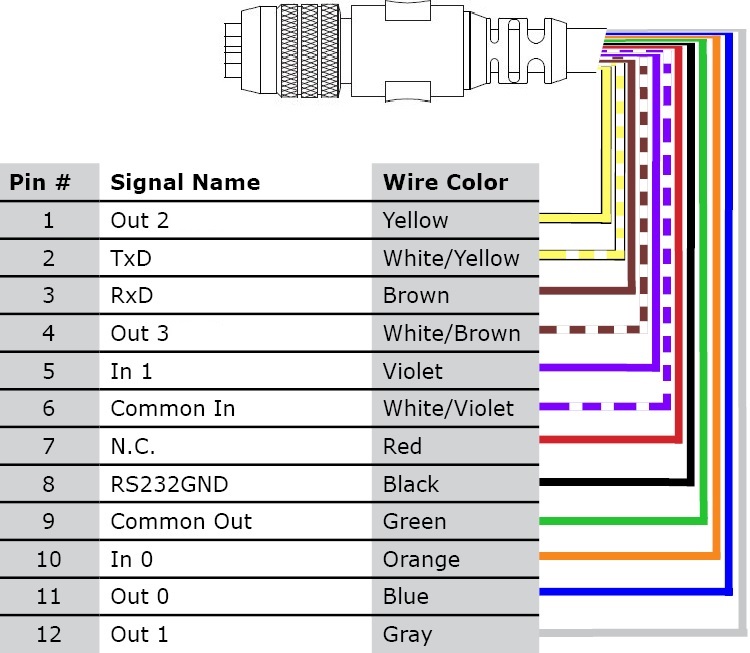

Signal: PoE Ethernet Model
|
|
|
