RS-232 Connections
You can connect the DataMan 150 reader to a PC or other device over a standard RS-232 serial connection.
Note: You must supply external power to use this connection type.
You can make a connection in the following ways:
|

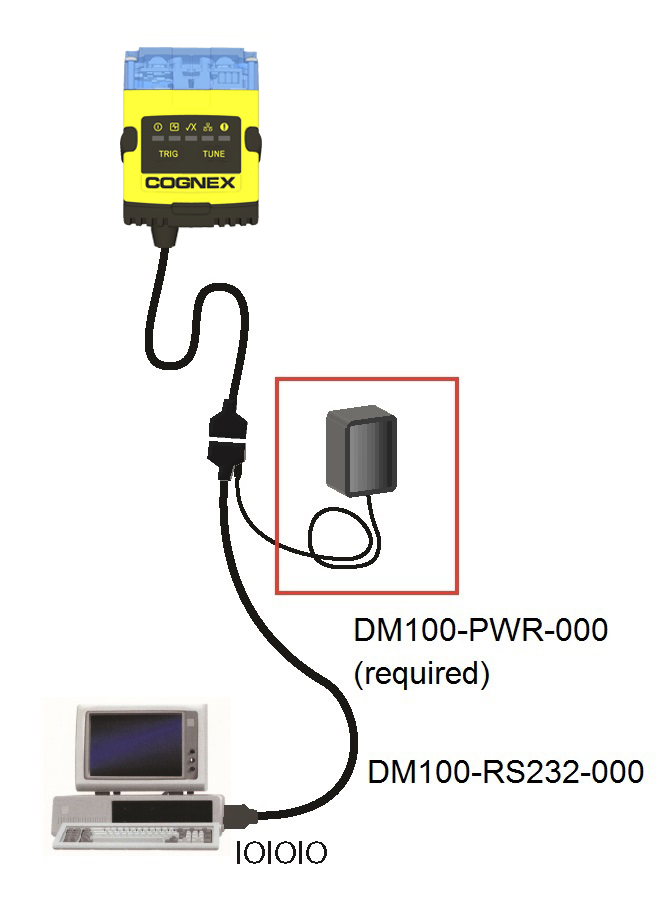

Connect directly to the PC:
|

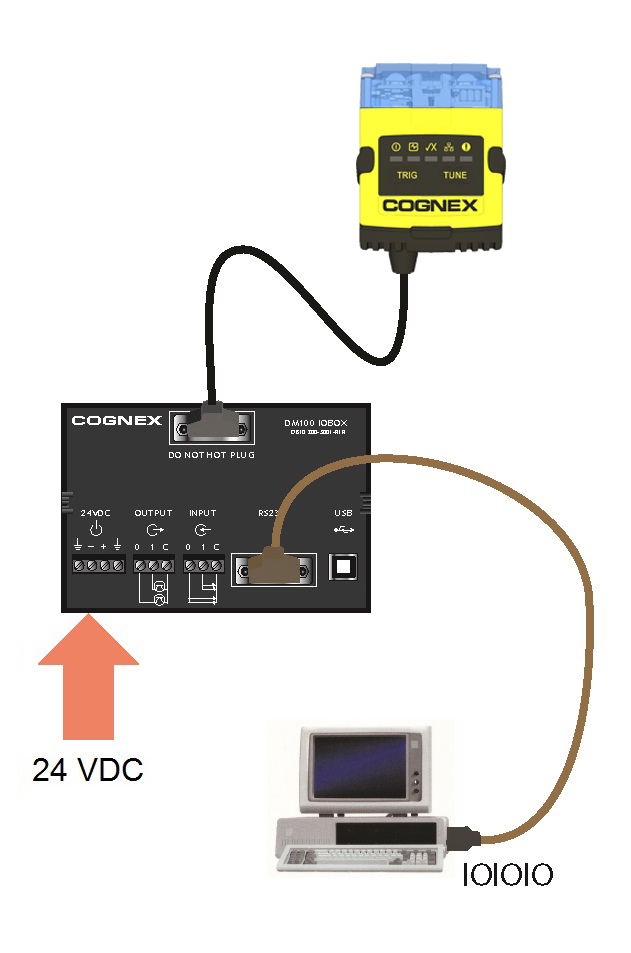

Connect to the PC through a basic I/O module:
|
