DataMan 50 and 60 Reading Distances and Field of View

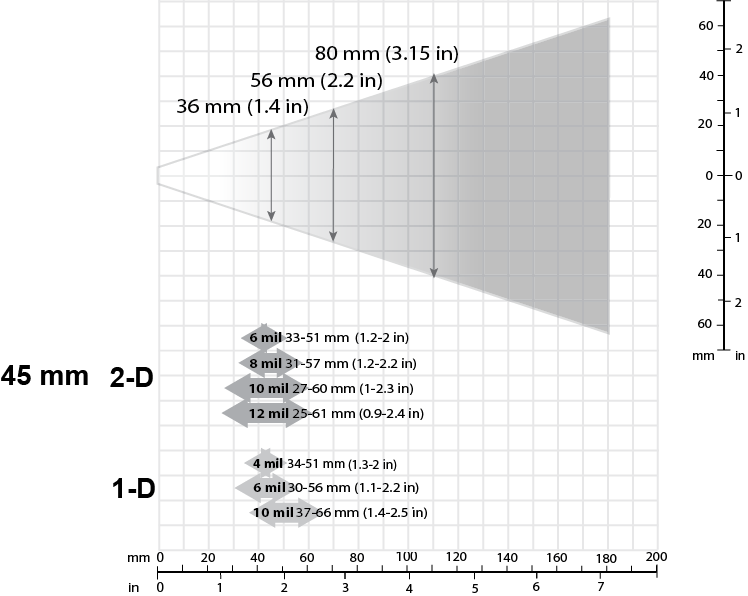

The following chart shows the horizontal field of view for the DataMan 50 and 60 at a range of working distances, together with the supported range of reading distances at 45 mm focus position.

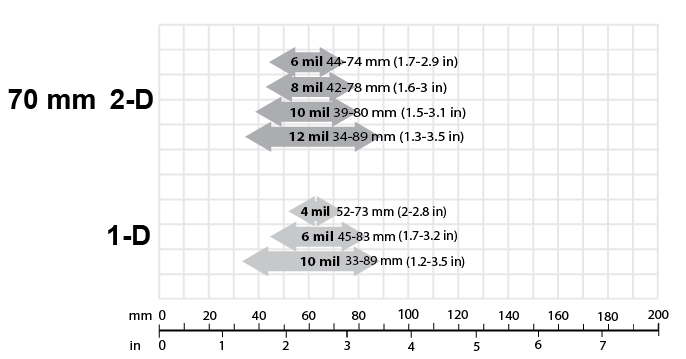

This chart shows the supported range of reading distances at 70 mm focus position.

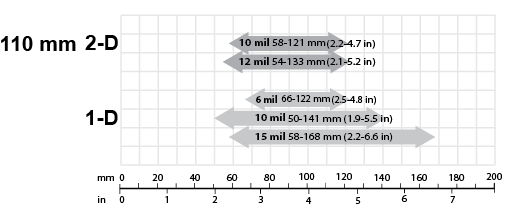

This chart shows the supported range of reading distances at 110 mm focus position.

The following table shows the Field of View widths at various distances.

Distances in mm	DM50/DM60
45	36
70	56
110	80
