Dimensional Drawings

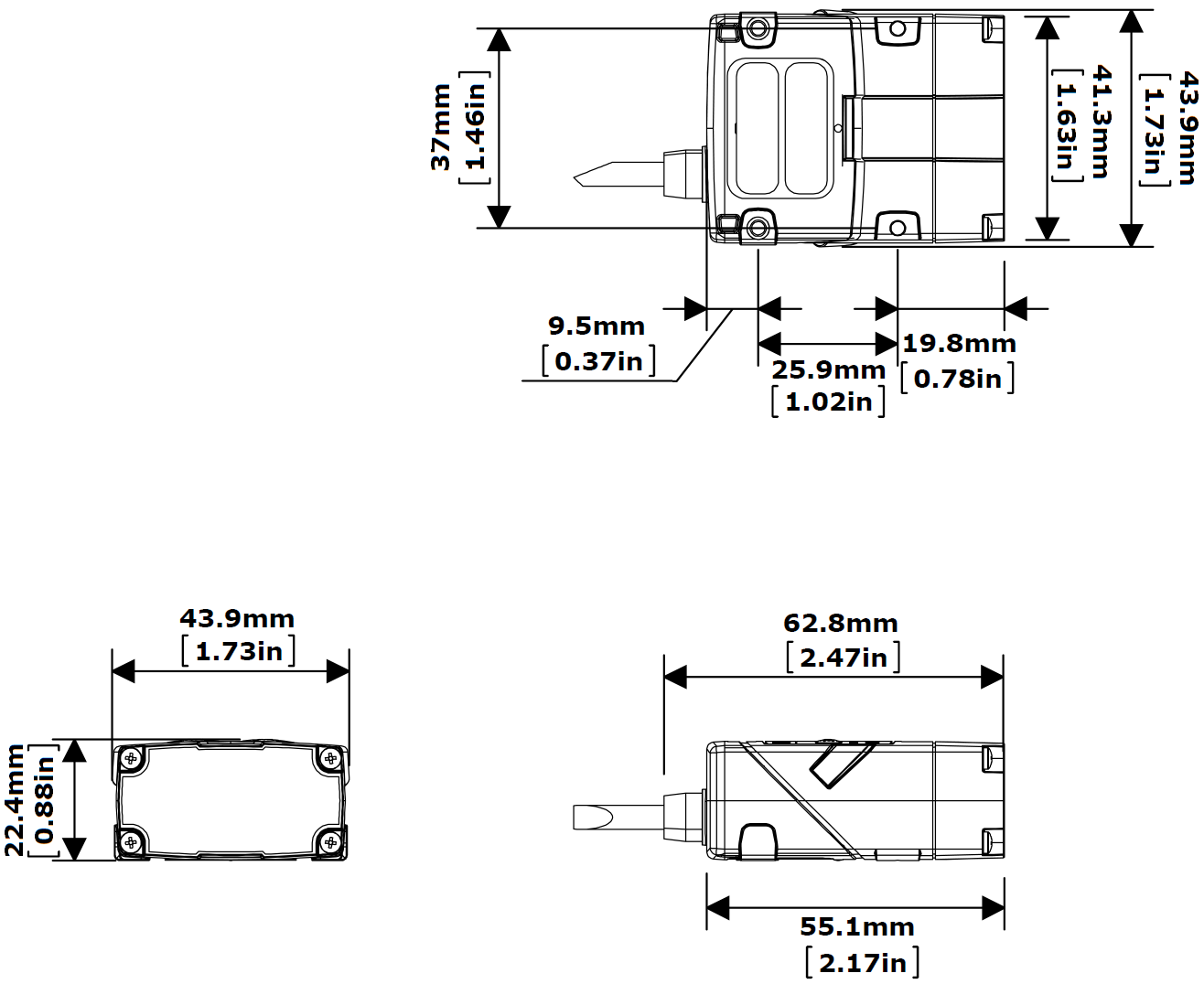

The size of the DataMan 150 in the straight configuration is shown in the following figure:
Note:
- Dimensions are in millimeters [inches] and are for reference purposes only.
- All specifications are for reference purposes only and can change without notice.

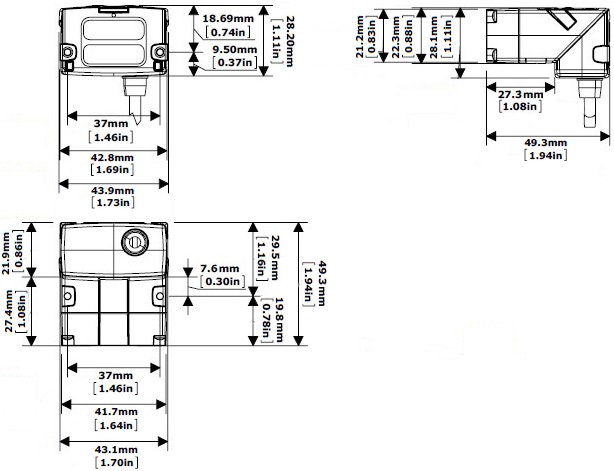

The size of the DataMan 150 in the angled configuration is shown in the following figure:
