DataMan 300, 360, 370, and 470 Series Readers External Light Control

The External Light cable is used to connect to an external lighting device, providing power and strobe control.

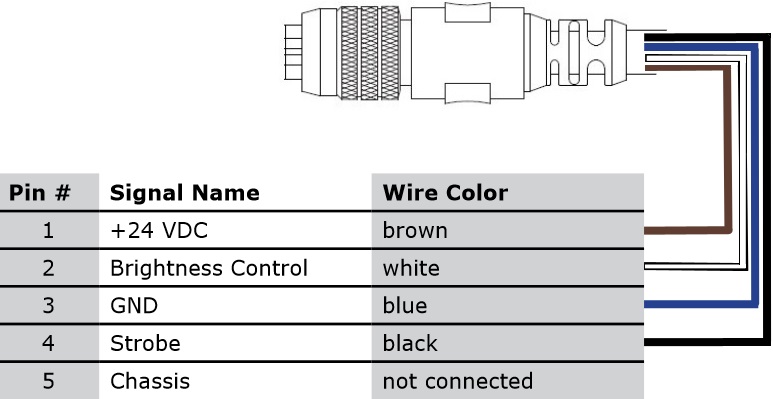

A 4-pin cable is provided for the external light control. The drawing on the left shows the socket on the device. This socket does not work if the external light is connected to one of the outputs on the breakout cable.

Output Voltage	24 V+/-5% (20 V – 27 V) Voltage may drop depending on the length of the cable.
	Max avg Current	1 A
	Peak Operating Current	1.5 A up to 100 µs, avg to not exceed 1 A
	Max Inrush Current	5 A not exceeding 0.4 As
