Lens Options

Accessory Name and Number Accessory Image

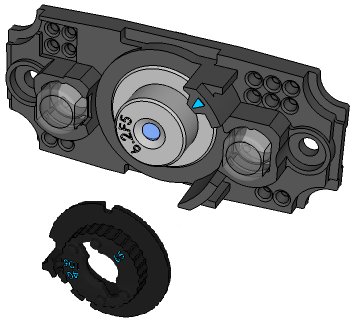

6.2 mm lens kit (DM150-LENS-62)

  • 6.2 mm optics mount
  • 6.2 mm lens
  • manual lens cap (assembled)
  • screws

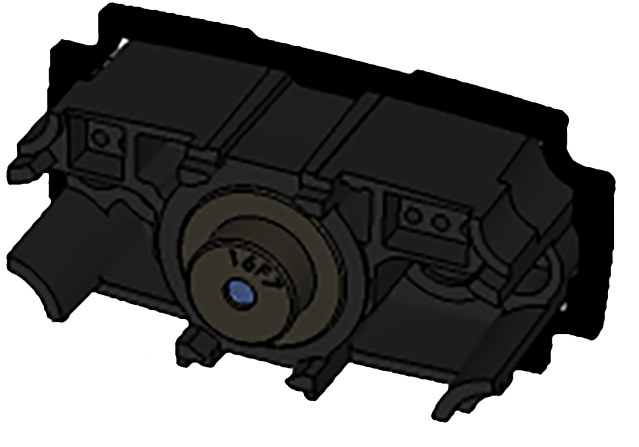

16 mm lens with extended optics mount (requires the use of an extended front cover and high-powered red LED) (DM260-LENS-16)

  • 16 mm optics mount
  • 16 mm lens
  • manual lens cap (assembled)
  • screws

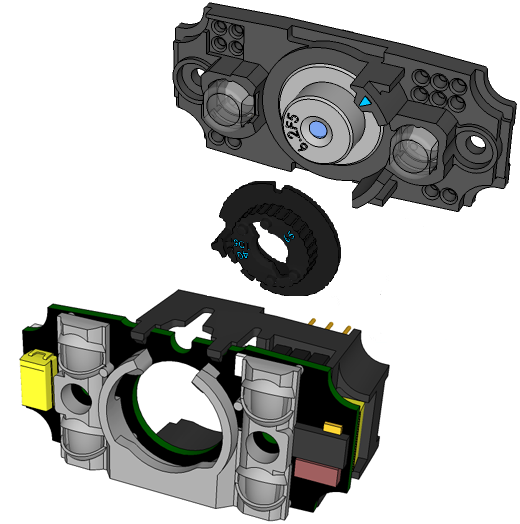

IR 6.2 mm lens kit, 3-position with IR LED (DMA-KIT-IR-62)

  • 6.2 mm optics mount
  • 6.2 mm lens (IR)

  • Standard Infrared Light for 6.2mm (Risk Group Exempt acc. IEC62471)

  • manual lens cap (not assembled)
  • screws

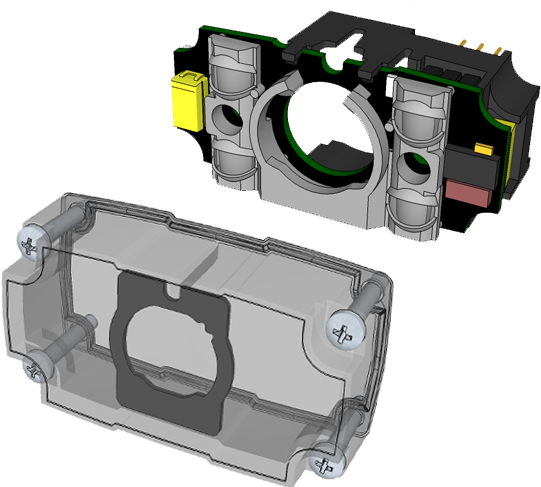

UV Light Kit for 6.2 mm lens (DMA-KIT-UV365-62) (Risk Group Exempt acc. IEC 62471)

  • UV light board (365nm wavelength)
  • UV resistant front cover
  • screws

IR 16 mm lens kit (DMA-KIT-IR-16)

  • 16 mm optics mount
  • 16 mm lens (IR)

  • Standard Infrared Light for 16mm (Risk Group Exempt acc. IEC62471)

  • manual lens cap (assembled)
  • screws

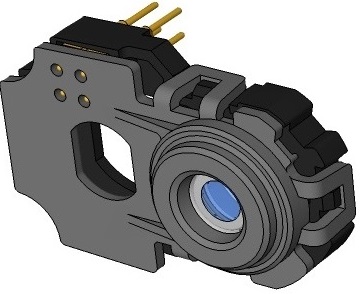

Liquid Lens Module (LLM) to be used with 6.2 mm lens or 16 mm lens (DMA-LLM-150-260)

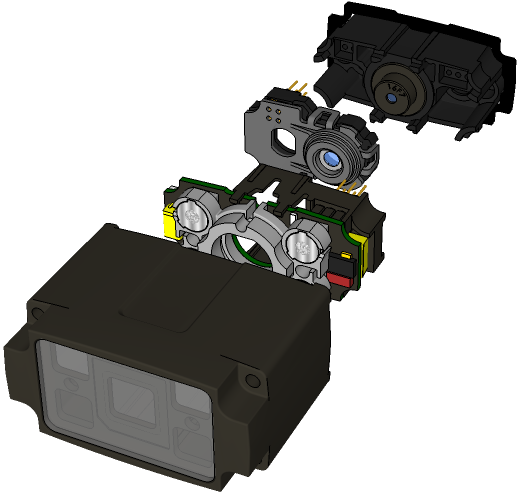

16 mm lens with ImageMax kit (DM260-KIT-16LL)

  • 16 mm optics mount

  • 16 mm lens
  • Liquid Lens Module (DMA-LLM-150-260)

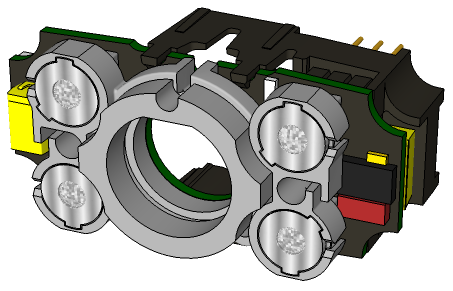

  • High Powered red LED illumination (DM260-LED-RED-HP) (Risk Group Exempt acc. IEC62471)
  • 2-LED half-polarized extended cover (DM260-LENS-16CVR-P) (Risk Group Exempt acc. IEC62471)
