DM282 Layout

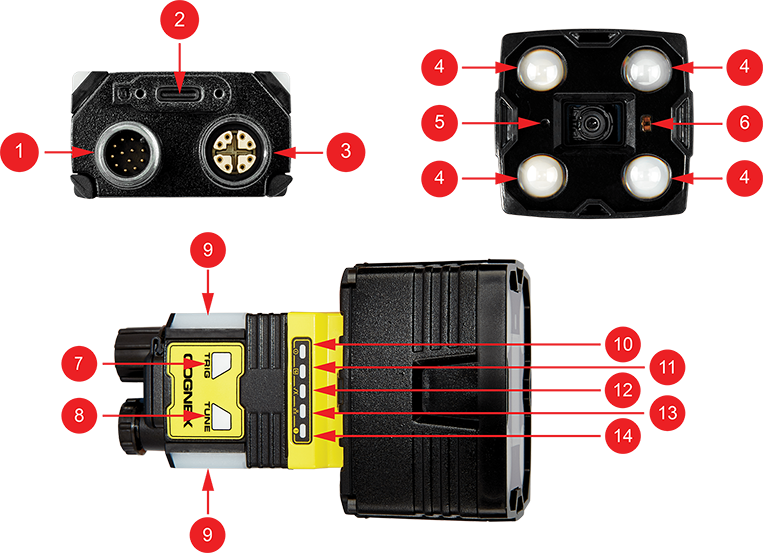

The image and table below shows the elements of the reader.
|
|
|
|---|---|
| Number | Description |
| 1 | Power I/O Breakout cable connector |
| 2 | USB-C slot (with plastic cover) |
| 3 | Ethernet connector |
|
4 |
Illumination LEDs |
| 5 | LED aimer |
| 6 | Distance Sensor |
| 7 | Trigger button |
|
8 |
Tune button |
| 9 | Indicator LEDs |
|
10 |
Power LED indicator |
|
11 |
Train/Trigger status LED indicator |
|
12 |
Good/Bad read LED indicator |
|
13 |
Communication LED indicator |
|
14 |
Error LED indicator |
