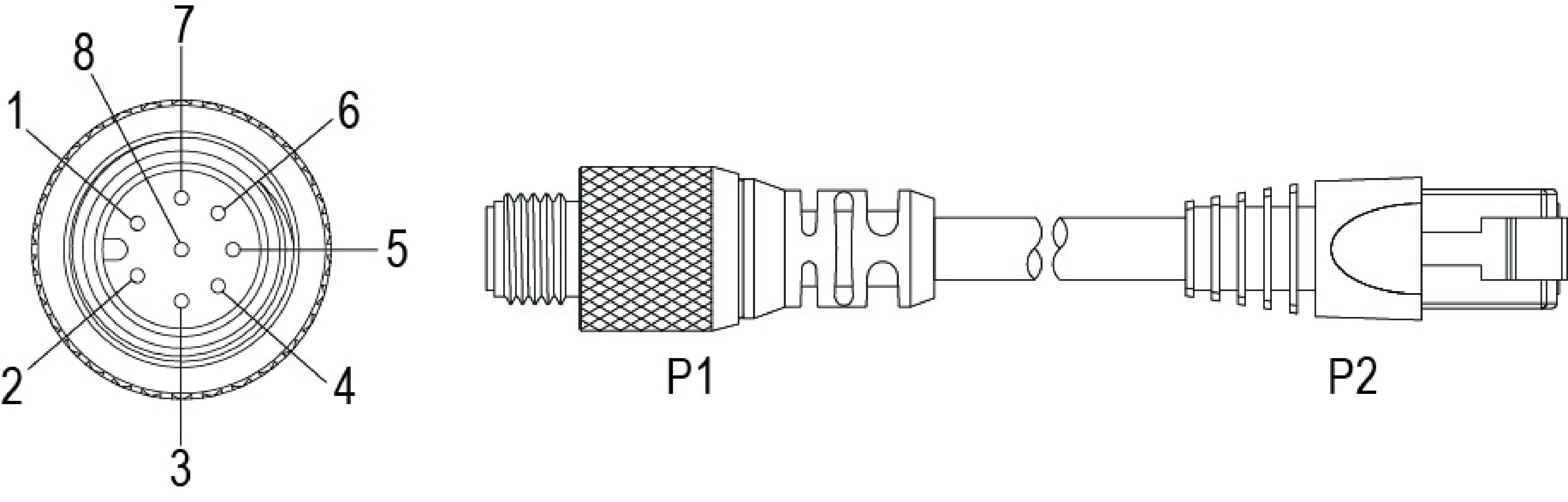

DataMan 300 and 503 Ethernet M12 to RJ45 Cable (CCB-84901-y00x-xx)
The Ethernet cable provides Ethernet connection for network communications. The Ethernet cable can be connected to a single device or provide connections to multiple devices via a network switch or router.
| P1 Pin# | Signal Name | Wire Color | P2 Pin# |
|---|---|---|---|
| 6 | TPO+ | White/Orange | 1 |
| 4 |
TPO- |
Orange | 2 |
| 5 | TPI+ | White/Green | 3 |
| 7 | TRMA | Blue | 4 |
| 1 | TRMB | White/Blue | 5 |
| 8 | TPI- | Green | 6 |
| 2 | TRMC | White/Brown | 7 |
| 3 | TRMD | Brown | 8 |
