External Light Control (CCB-M12XFLY-05)

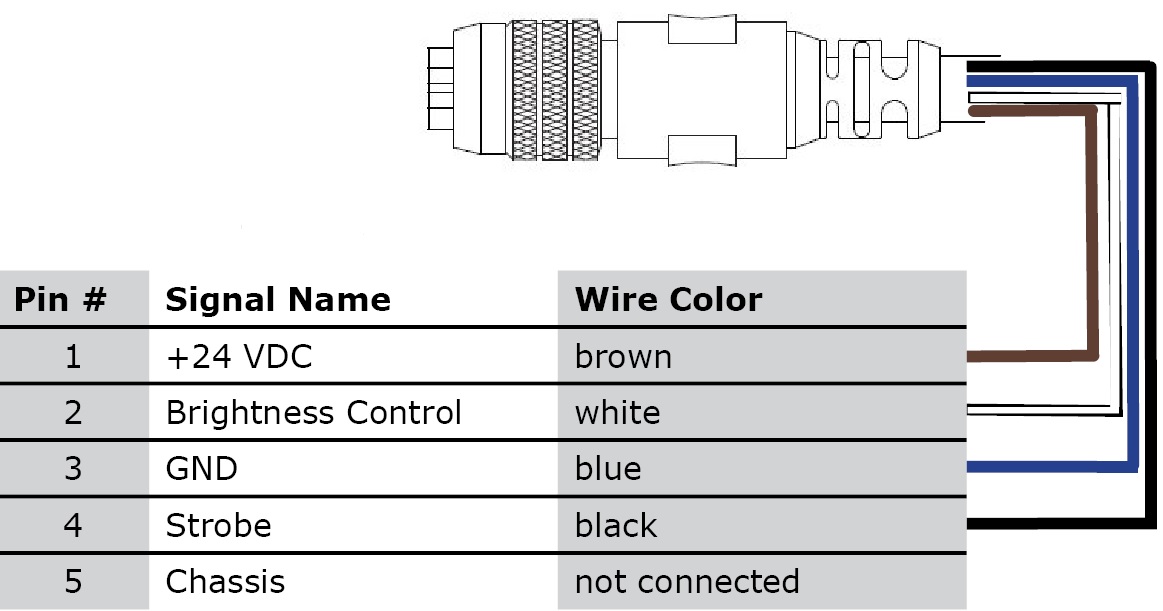

A 4-pin cable is provided for the external light control. The External Light cable is used to connect to an external lighting device, providing power and strobe control.

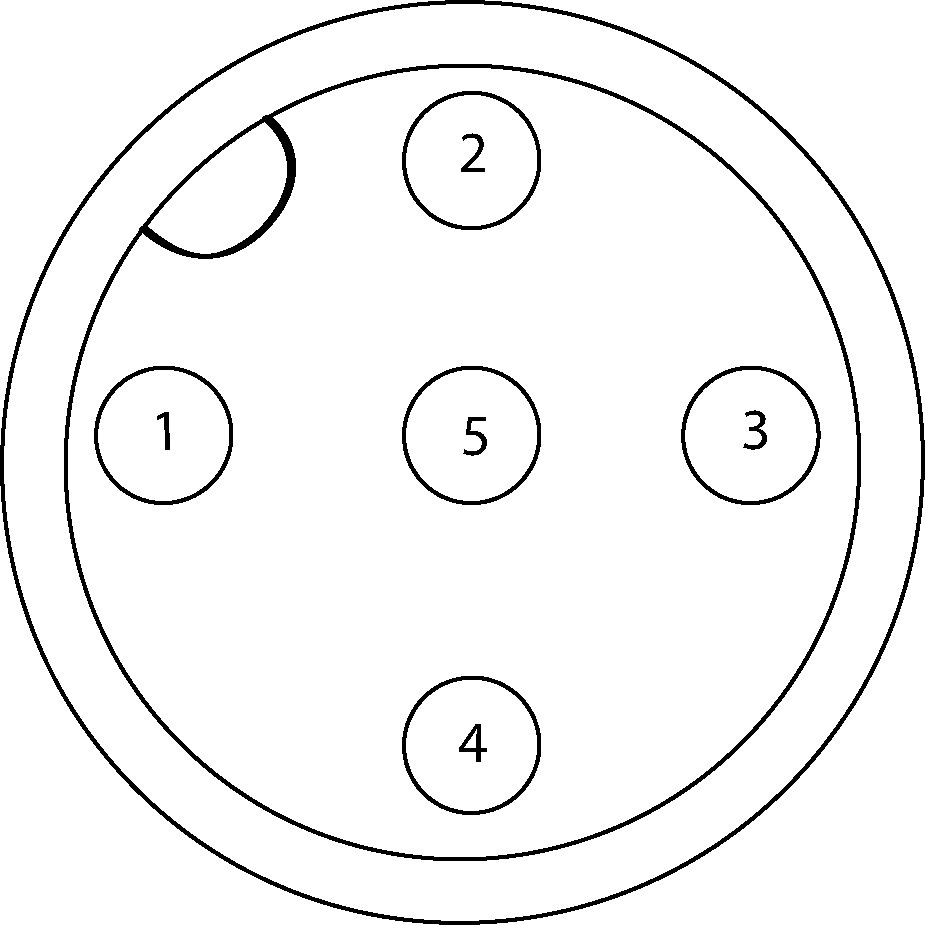

The drawing on the left shows the socket on the device.

Output Voltage	24 V+/-5% (20 V – 27 V) Voltage may drop depending on the length of the cable.
	Max avg Current	1 A
	Peak Operating Current	1.5 A up to 100 µs, avg to not exceed 1 A
	Max Inrush Current	5 A not exceeding 0.4 As
