Reading Distance and Field of View of DM395

5 MP with Reader with 16 mm Lens

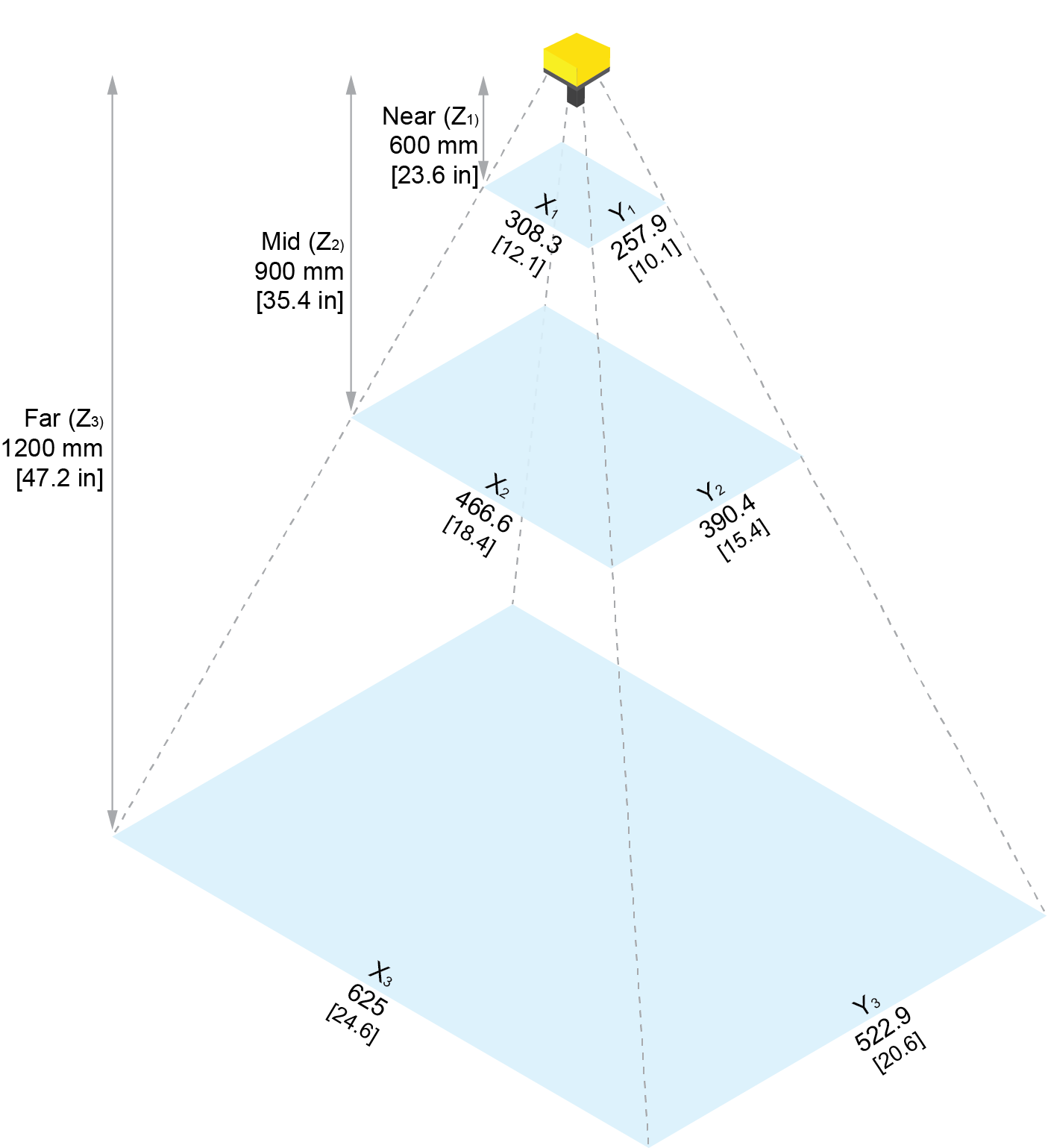

The FoV values are shown as follows:

Working Distance	Horizontal Values	Vertical Values	Diagonal Values
600 mm [23.6 in]	308.3 mm [12.1 in]	257.9 mm [10.1 in]	6401.9 mm [15.8 in]
900 mm [35.4 in]	466.6 mm [18.4 in]	390 mm [15.4 in]	608.4 mm [24 in]
1200 mm [47.2 in]	625 mm [24.6 in]	522.9 mm [20.6 in]	814.8 mm [32.1 in]

1D Field of View table with 16 mm Lens:

1D min. code in mil	Distances in mm
8 mil	800 mm
10 mil	996 mm
12 mil	1193 mm
15 mil	1487 mm
20 mil	1978 mm

2D Field of View table with 16 mm Lens:

1D min. code in mil	Distances in mm
8 mil	392 mm
10 mil	486 mm
12 mil	580 mm
15 mil	721 mm
20 mil	957 mm

5 MP with Reader with 24 mm Lens

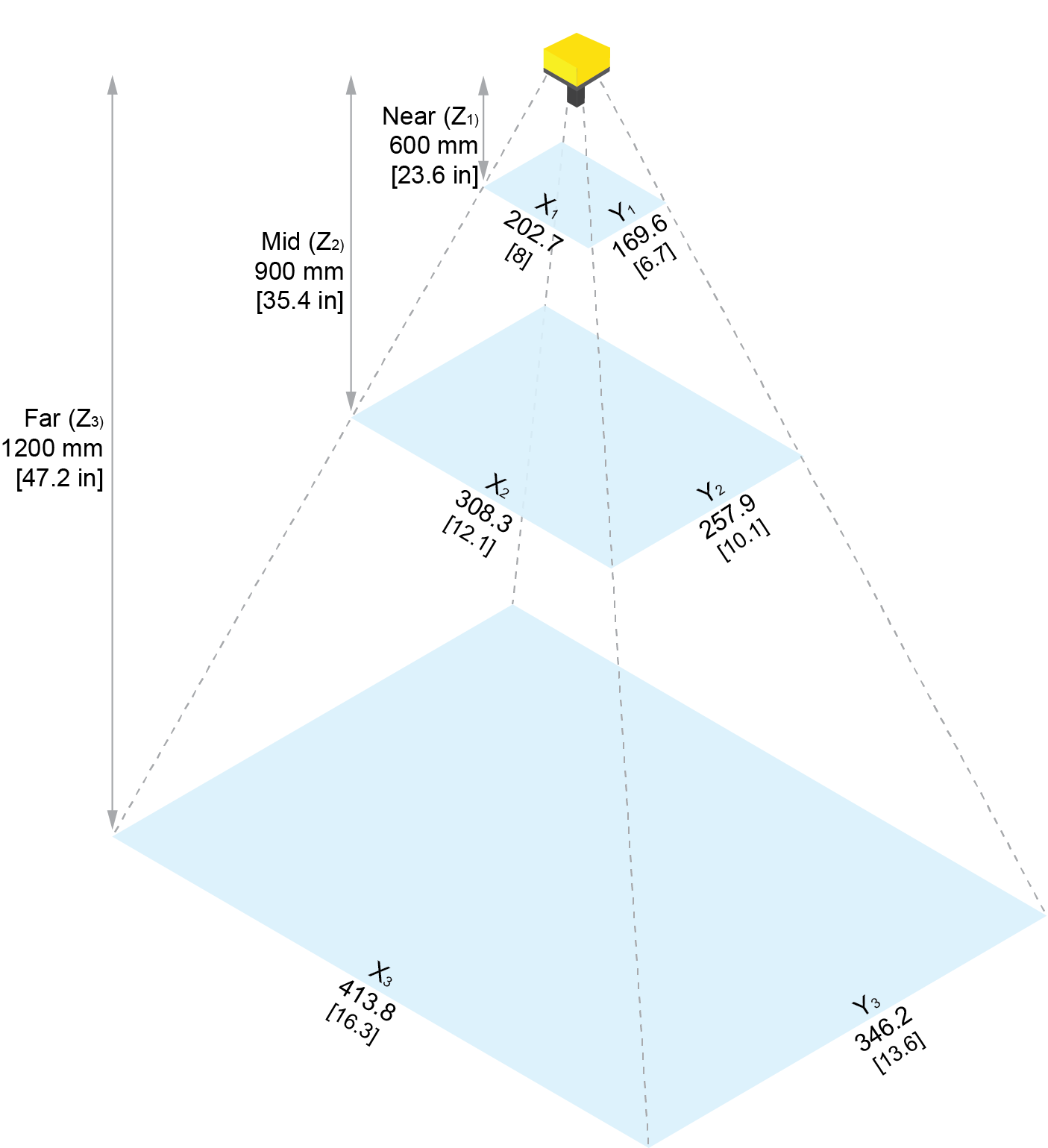

The FoV values are shown as follows:

Working Distance	Horizontal Values	Vertical Values	Diagonal Values
600 mm [23.6 in]	202.7 mm [8 in]	169.6 mm [6.7 in]	264.3 mm [10.4 in]
900 mm [35.4 in]	308.3 mm [12.1 in]	257.9 mm [10.1 in]	401.9 mm [15.8 in]
1200 mm [47.2 in]	413.8 mm [16.3 in]	346.2 mm [13.6 in]	539 mm [21.2 in]

1D Field of View table with 24 mm Lens:

1D min. code in mil	Distances in mm
8 mil	1209 mm
10 mil	1503 mm
12 mil	1798 mm
15 mil	2239 mm
20 mil	2976 mm

2D Field of View table with 24 mm Lens:

1D min. code in mil	Distances in mm
8 mil	597 mm
10 mil	738 mm
12 mil	879 mm
15 mil	1091 mm
20 mil	1444 mm
