DataMan 280 Layout

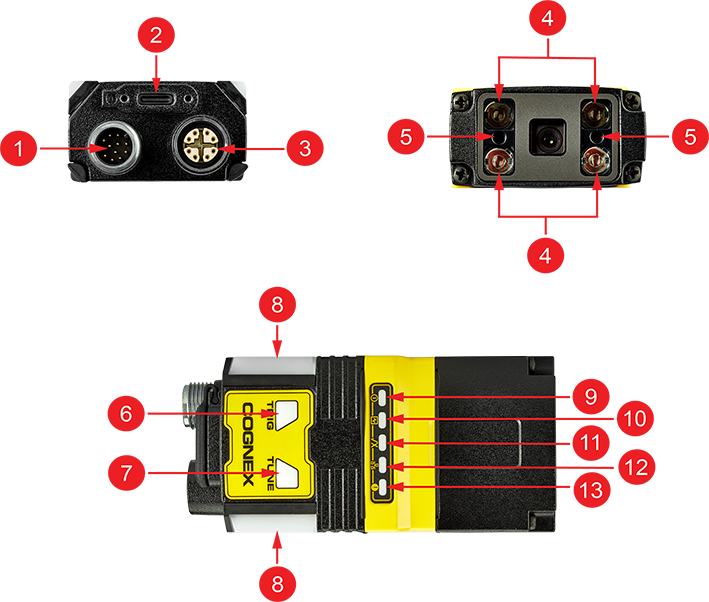

The image and table below shows the elements of the reader.
|
|
|
|---|---|
| Number | Description |
| 1 | Power I/O Breakout cable connector |
| 2 | USB-C slot (with plastic cover) |
|
3 |
Ethernet connector |
|
4 |
Illumination LEDs |
|
5 |
LED aimers |
|
6 |
Trigger button |
|
7 |
Tune button |
|
8 |
Indicator LEDs |
|
9 |
Power LED indicator |
|
10 |
Train status/Trigger status LED indicator |
|
11 |
Good/bad read LED indicator |
|
12 |
Communication LED indicator |
|
13 |
Error LED indicator |
