DataMan 282 Readers with 8 mm Lens

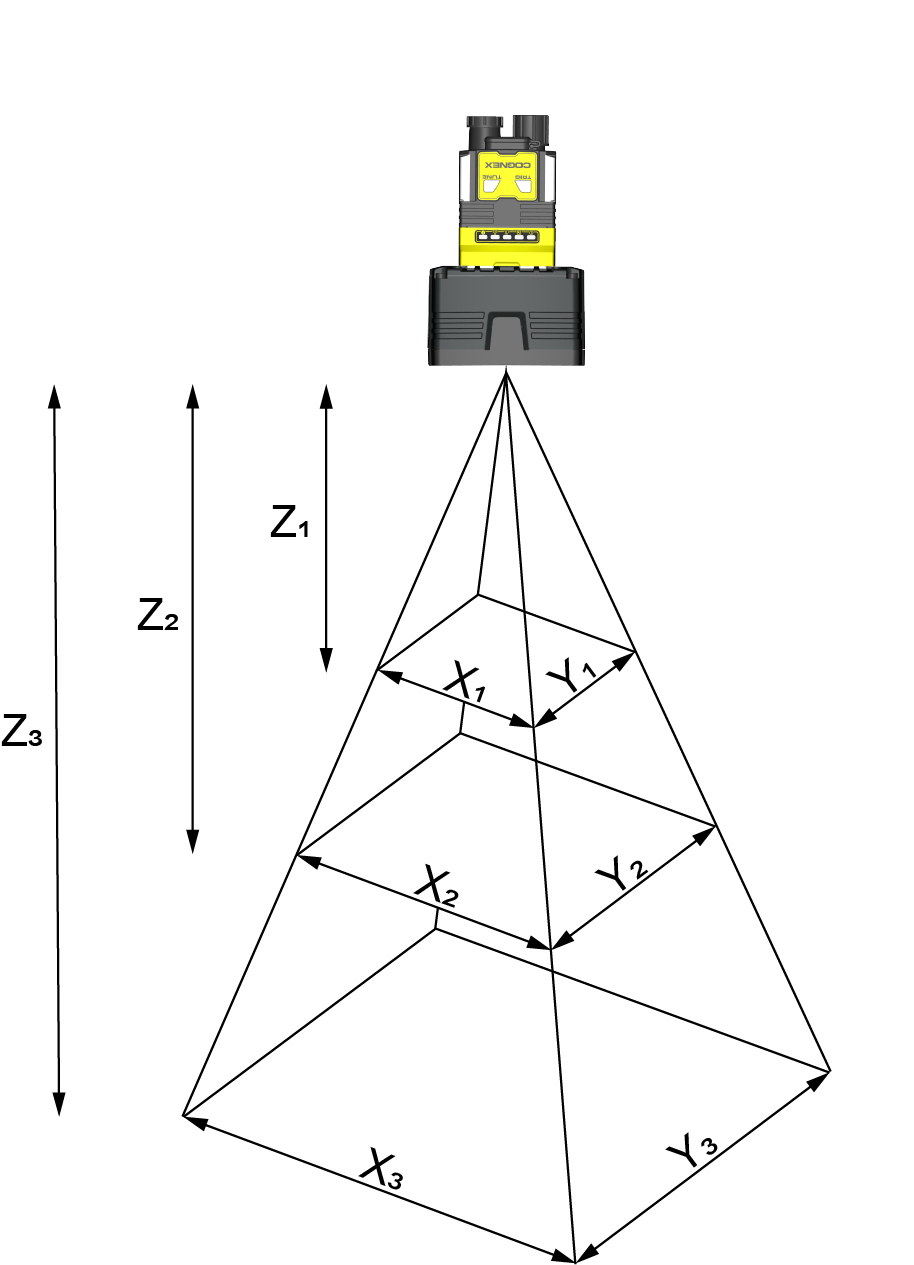

Working distance in mm	Horizontal values in mm	Vertical values in mm
Z1 = 300	X1 = 223	Y1 = 125
Z2 = 750	X2 = 526	Y2 = 295
Z3 = 1200	X3 = 828	Y3 = 466

Working Distance in mm	2D min. code in mil	1D min. code in mil
300	12	7
750	18	12
1200	22	15
