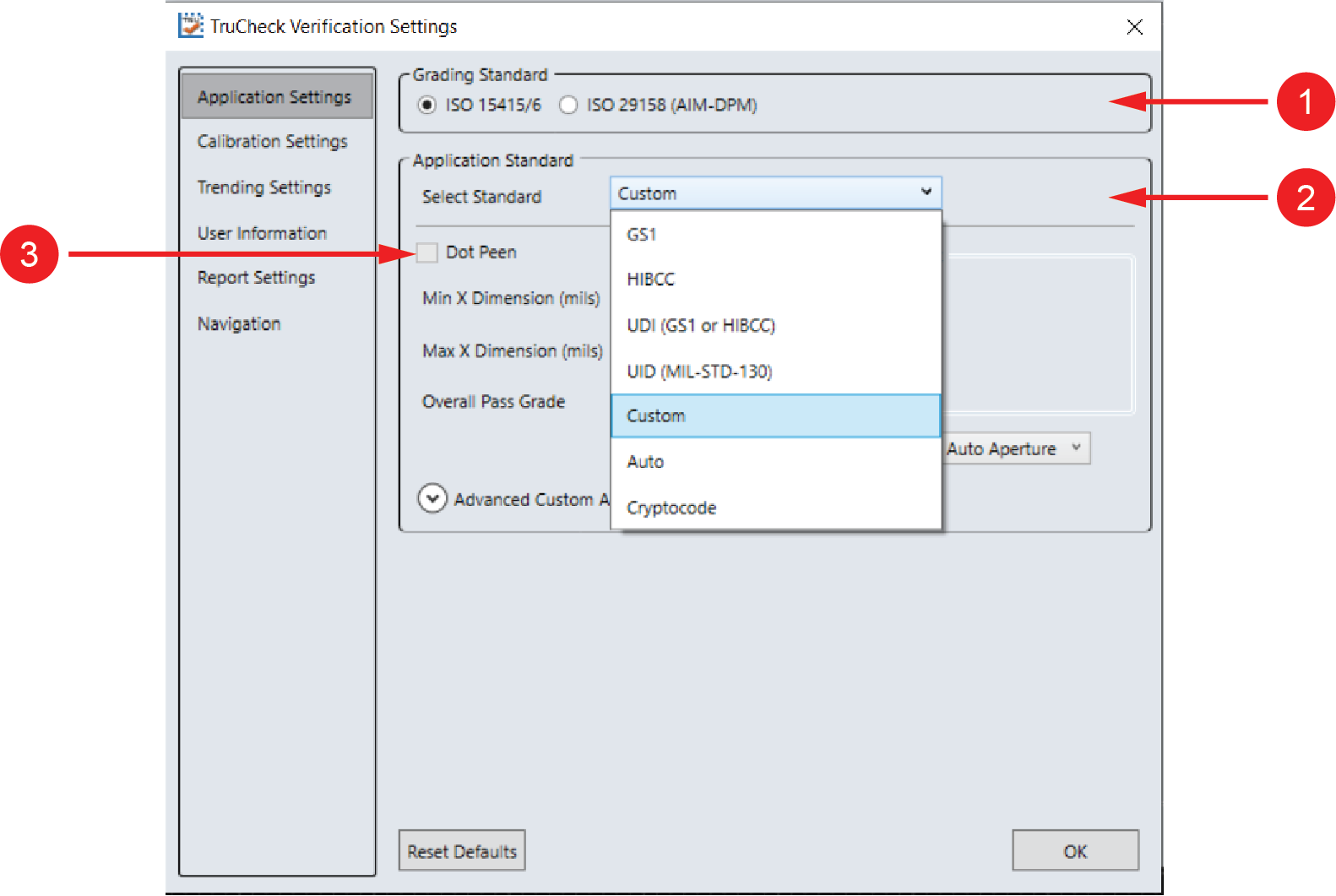

Application Settings

The content of the Application Settings window depends on which Application Standard you select. The application standard setting automatically sets many of the parameters.

Number Element Description
1 Grading Standard

For any Application Standard selected, you need to select a Grading standard, depending on your application. For more information, see Grading Standards.

Available options are:

  • ISO/IEC 15415:2011 for 2D barcodes

  • ISO/IEC 15416:2016 for 1D barcodes

  • ISO/IEC 29158:2011 or 2020 for DPM barcodes
2 Application Standard

You can select pre-defined and custom application standards. Application standards are detailed barcode guidelines for a specific industry listing rules for allowed code types, sizes, placement, and data formats. For more information, see Application Standards Settings

  • Selecting a pre‑defined application standard ensures that the DM475 Verifier uses the appropriate grading parameters for your application.
  • Custom application standard allows you to customize all adjustable verification and process parameters.
  • Auto application standard setting allows the software to automatically select the appropriate application standard based on the data formatting in the code being verified.
3 Dot Peen

The Dot Peen option helps you connect dots in case of codes created through a process where dots are peened onto a metal surface. Select Dot Peen to use the AIM-DPM Stick algorithm to connect dots. For more information, see in Dot Peen.

The Reset Defaults button resets the Application Settings menu to the default settings (Auto).

After clicking Reset Defaults, you must calibrate the verifier before using it. For more information, see Calibration.
