DataMan 280 Series Cables
| Accessory | Product Number | Illustration | DM280 | DM282 |
|---|---|---|---|---|

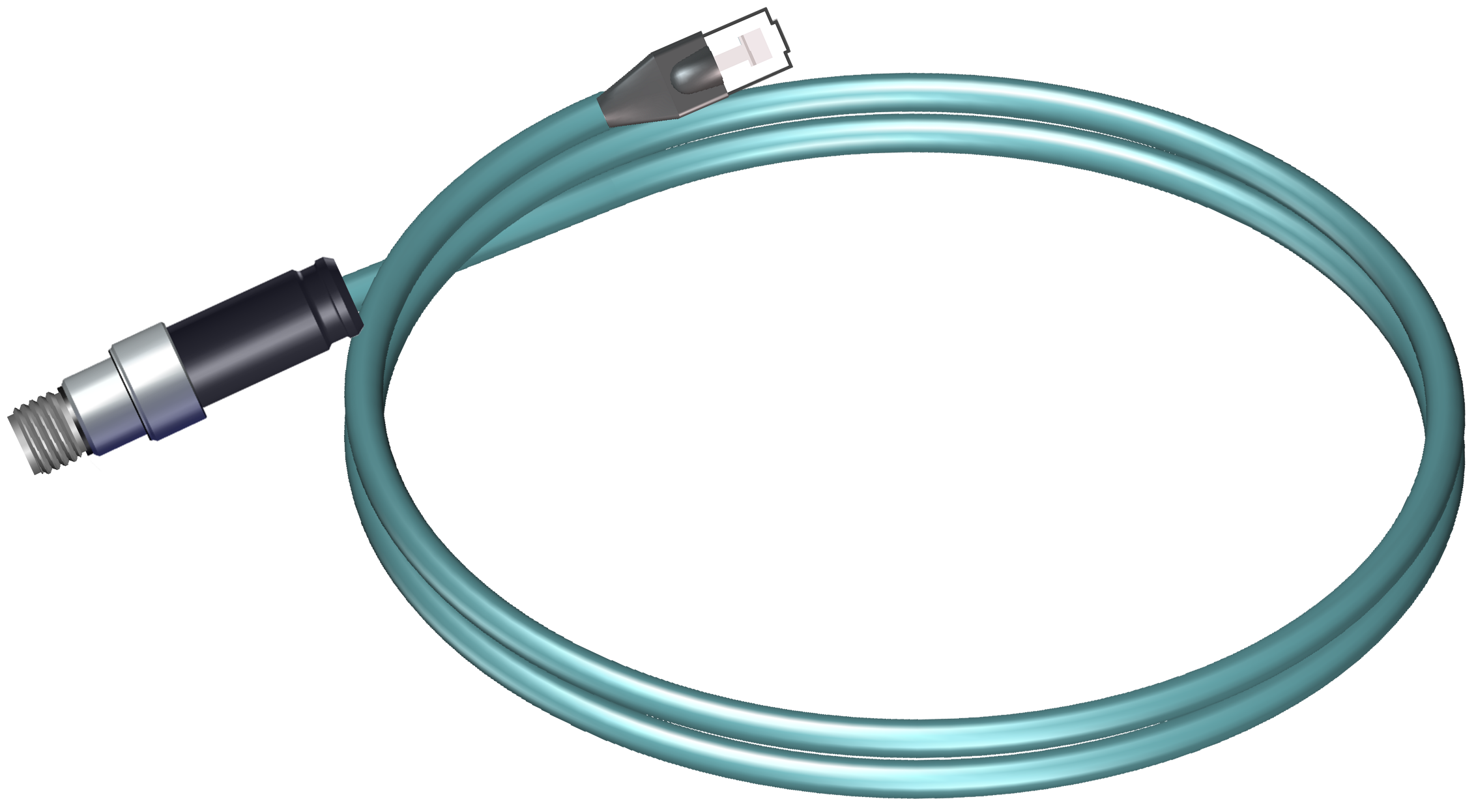

| Ethernet Cable, X-coded M12-8 to RJ-45 | CCB-84901-2001-xx (straight, xx specifies length: 2m, 5m, 10m, 15m, 30m) |
|
✓ | ✓ |
| Ethernet Cable, X-coded M12-8 to RJ-45 | CCB-84901-2002-xx (right-angled, xx specifies length: 2m, 5m, 10m) |
|
✓ | ✓ |
| Ethernet Cable, Robotic X-Coded M12-8 to RJ-45 | CCB-84901-2RBT-xx (straight, xx specifies length: 2m, 5m, 10m) |
|
✓ | ✓ |
| X-Coded to A-Coded Ethernet cable adapter, 0.5 m | CCB-M12X8MS-XCAC |
|
✓ | ✓ |

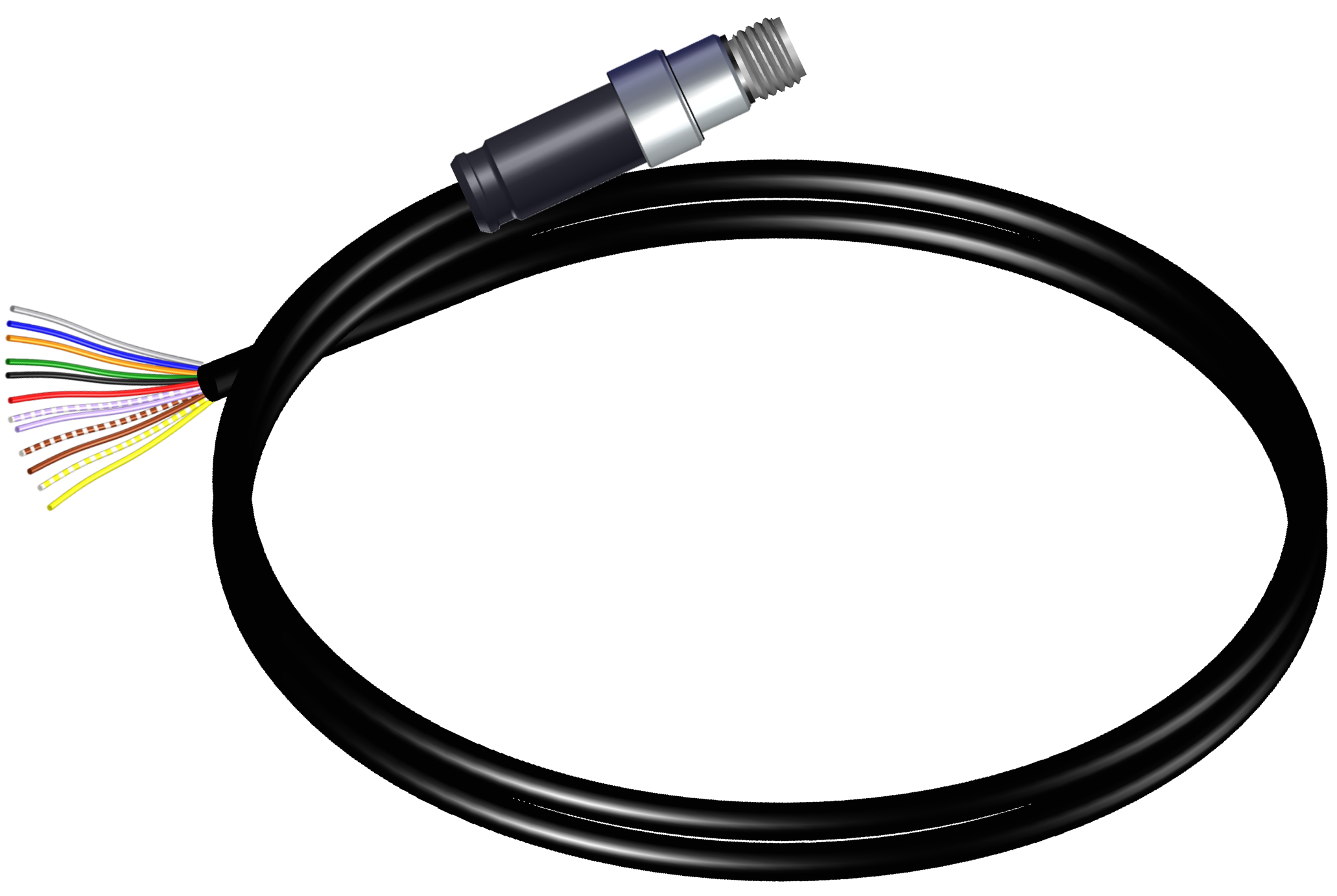

| Power and I/O Breakout Cable, M12-12 to Flying Lead | CCB‑M12x12Fy-05 (y = straight/angled, xx specifies length) |
|
✓ | ✓ |
| Power and I/O Breakout Cable, M12-12 to Flying Lead | CCBL-05-01 |
|
✓ | ✓ |
| Power and I/O Breakout Cable, M12-12 to Flying Lead | CCB-PWRIO- xx (straight, xx specifies length: 5m, 10m, 15m) |
|
✓ | ✓ |
| Power and I/O Breakout Cable, M12-12 to Flying Lead | CCB-PWRIO-xxR (right-angled, xx specifies length: 5m, 10m, 15m) |
|
✓ | ✓ |

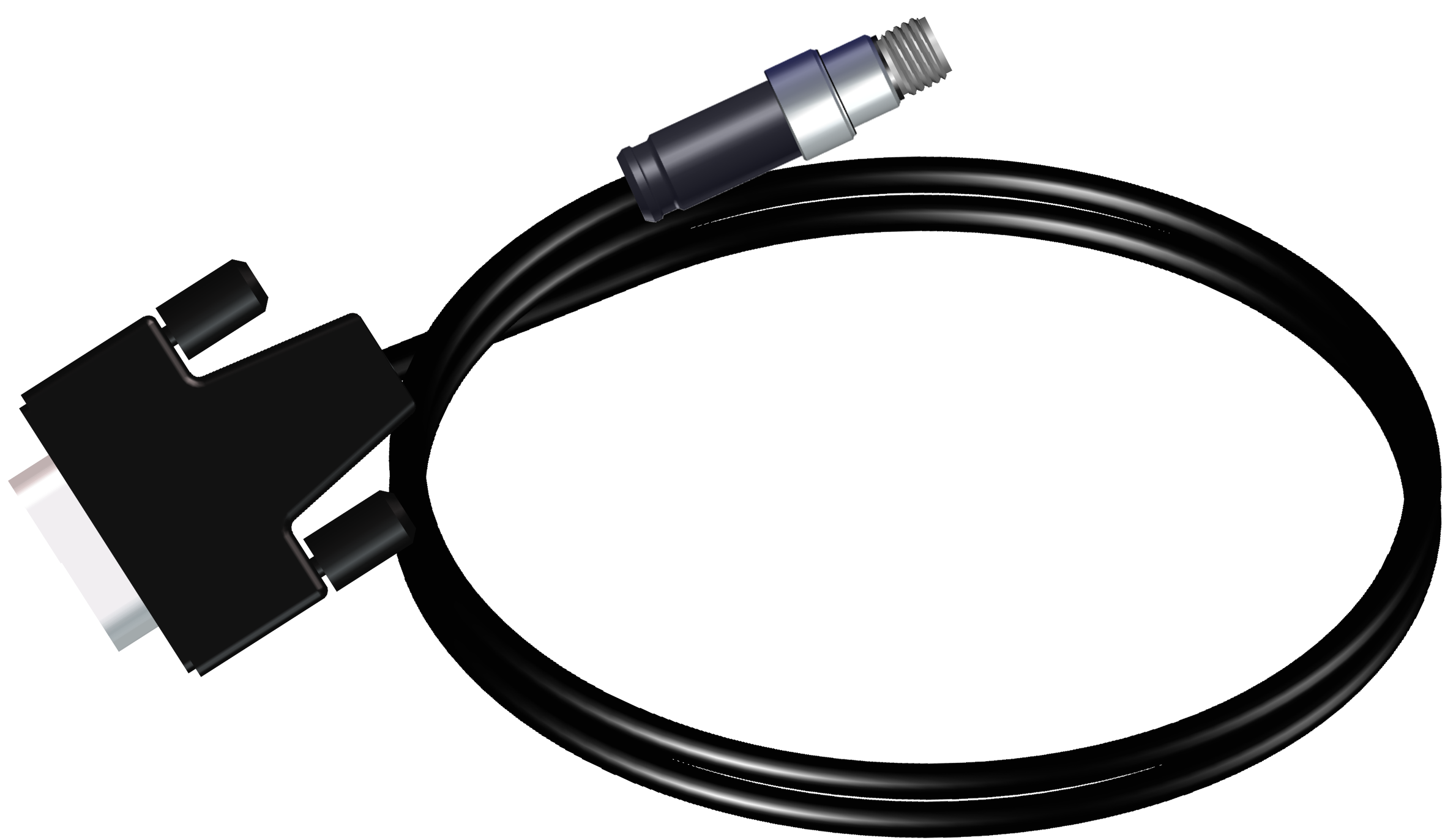

| I/O Module Cable M12-12 to DB15 | CCB-PWRIO-MOD-xx (xx specifies length: 2m, 5m) |
|
✓ | ✓ |

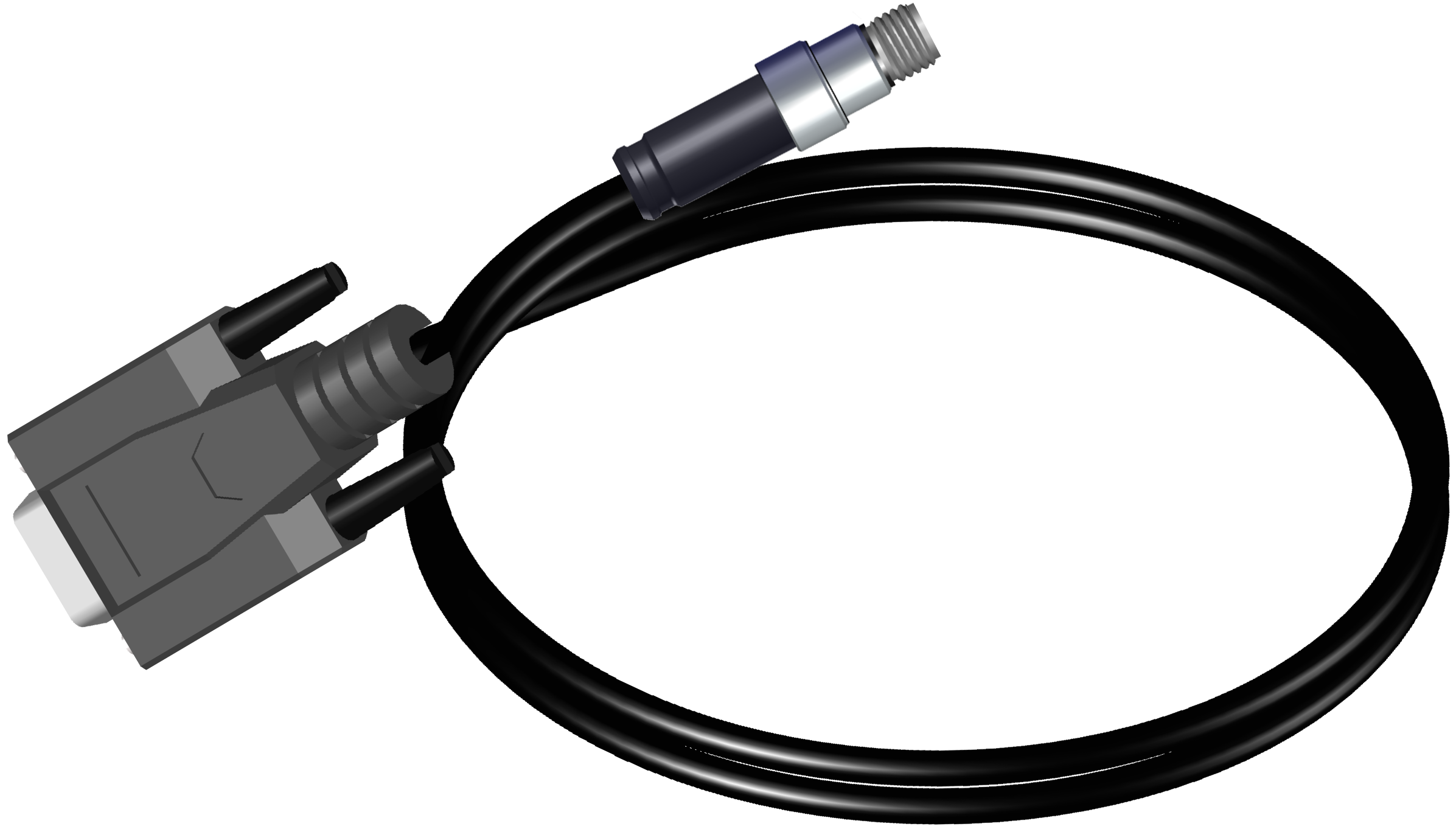

| RS-232 Connection Cable | CCB-M12xDB9Y-05 |
|
✓ | ✓ |
| I/O Extension Cable | CKR‑200‑CBL‑EXT |
|
✓ | ✓ |

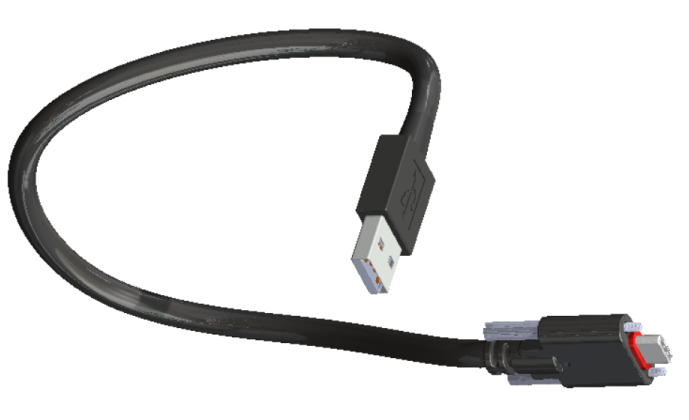

| Sealed USB type C cable to USB type A straight 2.5 m | DMA-STCBLE-IP65-25 |
|
✓ | ✓ |
| Sealed USB type C cable to USB type A straight 3.6 m | DMA-STCBLE-IP65-36 | ✓ | ✓ | |

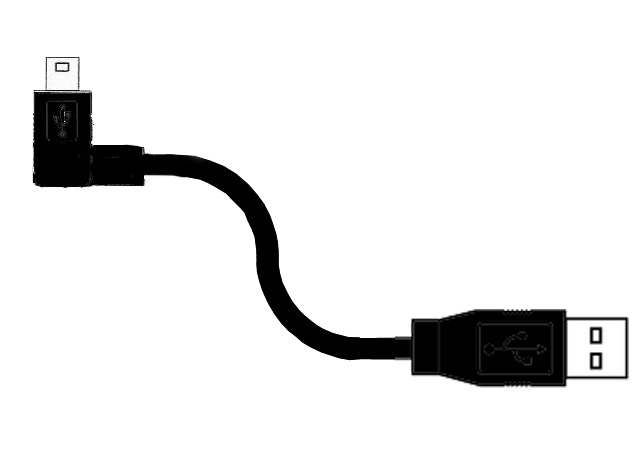

| Sealed USB type C cable to USB type A angled 2.5 m | DMA-RTCBLE-IP65-25 |
|
✓ | ✓ |
| Sealed USB type C cable to USB type A angled 3.6 m | DMA-RTCBLE-IP65-36 | ✓ | ✓ |
