Displaying 3D Images and 2D Tool Graphics

These topics cover how to construct a project that can be used to display 3D images output by a DS1000 Series Sensor, and the graphics output by the VisionPro 3D Tools.

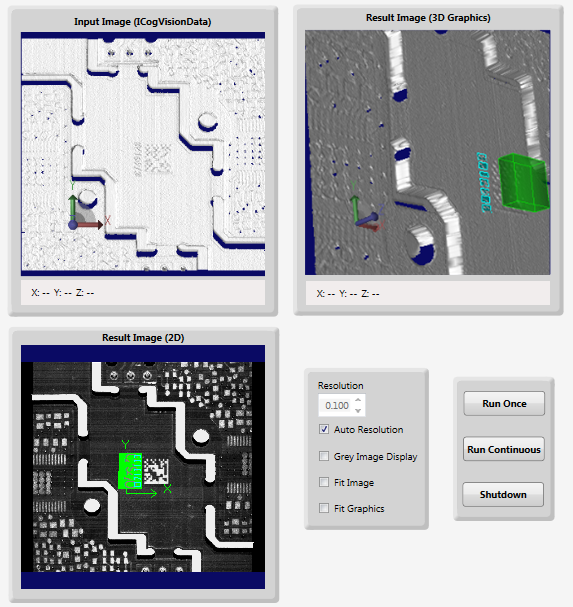

The Page below displays the Range Image acquired by the DS 1000 Series Sensor [Input Image (ICogVisionData)], the Range Image with the VisionPro Tool Block result graphics [Result Image (3D Graphics)], and the 2D graphics of the VisionPro Tool Block [Result Image (2D)].
