Using VisionPro Deep Learning

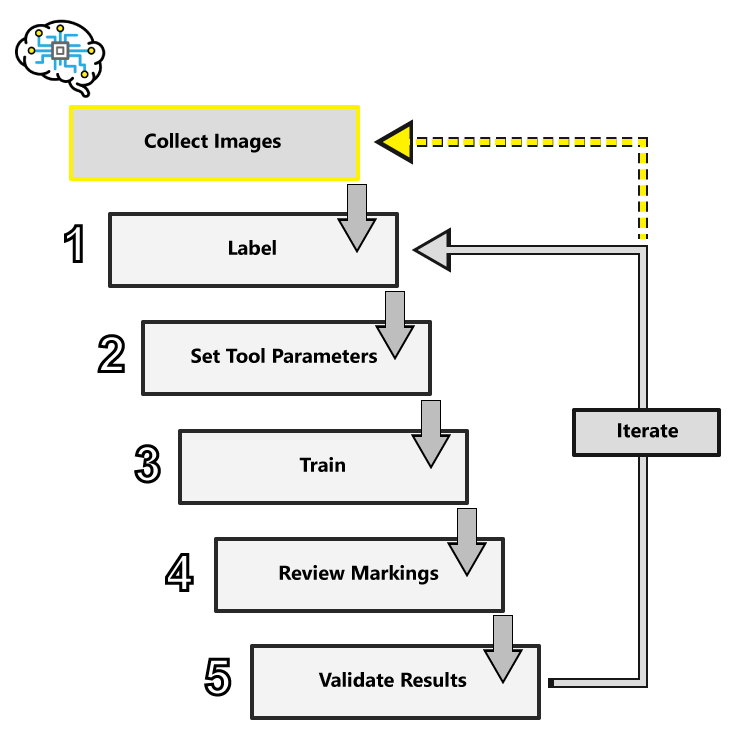

This topic explains how the VisionPro Deep Learning works by introducing its entire workflow.

  1. Collect Images

    Follow the best practices for image quality in standard machine vision applications, where contrast is key. Within the image, defects and features must be human-distinguishable. Control all possible variables, such as consistent lighting, working distance, camera trigger timing, etc.

  2. Label

    This establishes the ground-truth for your tools, what is good or bad, what is a feature of interest, what a character is, what type of thing is in the image. It is important that you label all the views, and labeling must be accurate.

  3. Set Tool Parameters

    The Deep Learning tool parameters adjust how the network trains and processes images. The most common tool parameters to adjust are the following:

    • Feature Size/Patch Size
    • Training Set
    • Perturbation parameters
    • Sampling Density

    Typically, the default settings of the parameters perform well against most image sets. Try training without adjusting any parameters beside Feature Size first.

  4. Training

    Training is the process that your tool, which is a neural network, is learning about the features (pixels) based on the labels you made. For example, a Red Analyze tool will learn the defect/normal pixels in each image based on the defect/normal labels you drew. The goal of the Red Analyze tool Training is learning enough to give the correct inspection results of whether an unseen image is defective or not. The key to training is to ensure that you include all possible variations within your training set, and that your images are accurately labeled. Training times vary by the application, tool setup and the GPU in the PC being used to train the network.

  5. Review Markings

    Markings represent Deep Learning's results for each image, and have unique graphic representations for each tool. Labels are generated by the developer. Markings are generated by Deep Learning.

  6. Evaluate Results

    Additional tool results are presented in the Database Overview panel. For each tool this includes the tool's processing time, scores and other statistical analysis.
