脚本块示例 – 红色分析

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

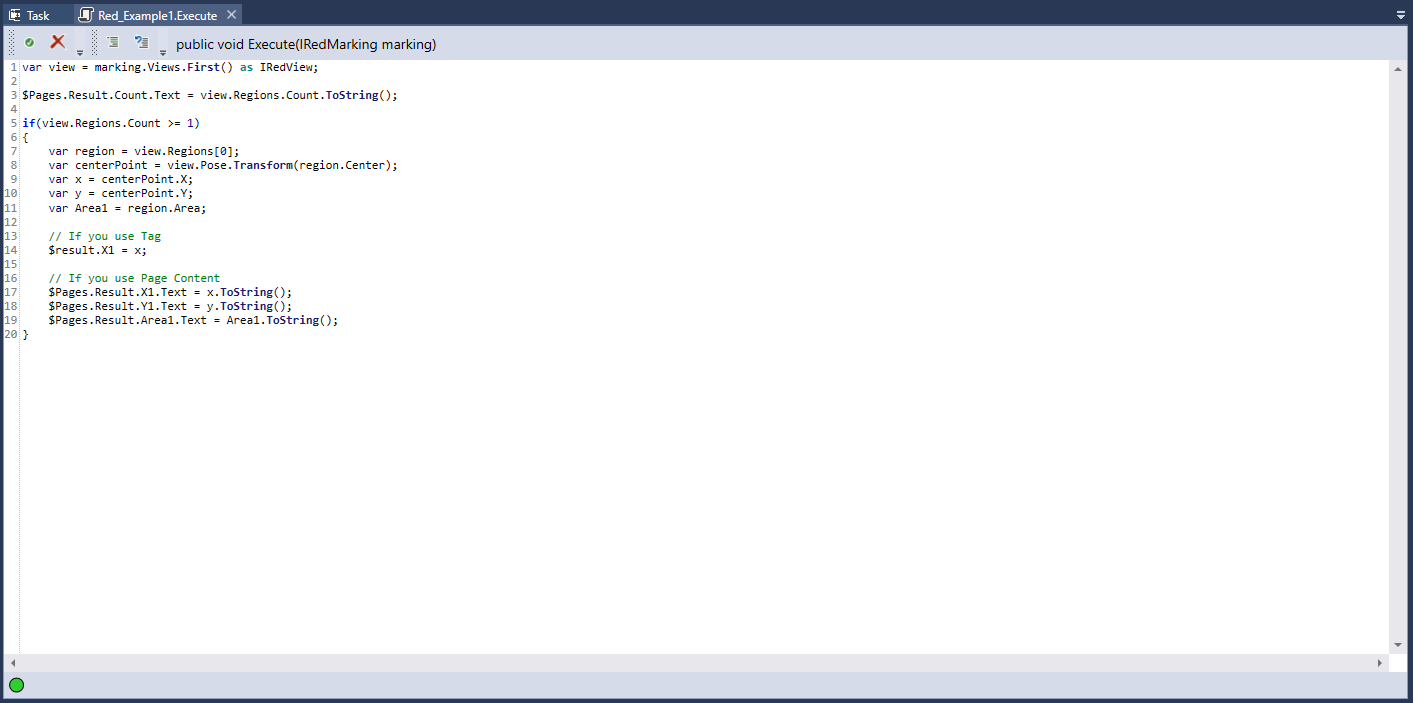

var view = marking.Views.First() as IRedView;

//Returning the number of markings:
$Pages.Result.Count.Text = view.Regions.Count.ToString();

if(view.Regions.Count >= 1)
{
    //Choosing the region:
    var region = view.Regions[0];
    //Return the center-point (X, Y) of the region:
    var centerPoint = view.Pose.Transform(region.Center);
    var x = centerPoint.X;
    var y = centerPoint.Y;
    //Return the area of the region:
    var Area1 = region.Area;

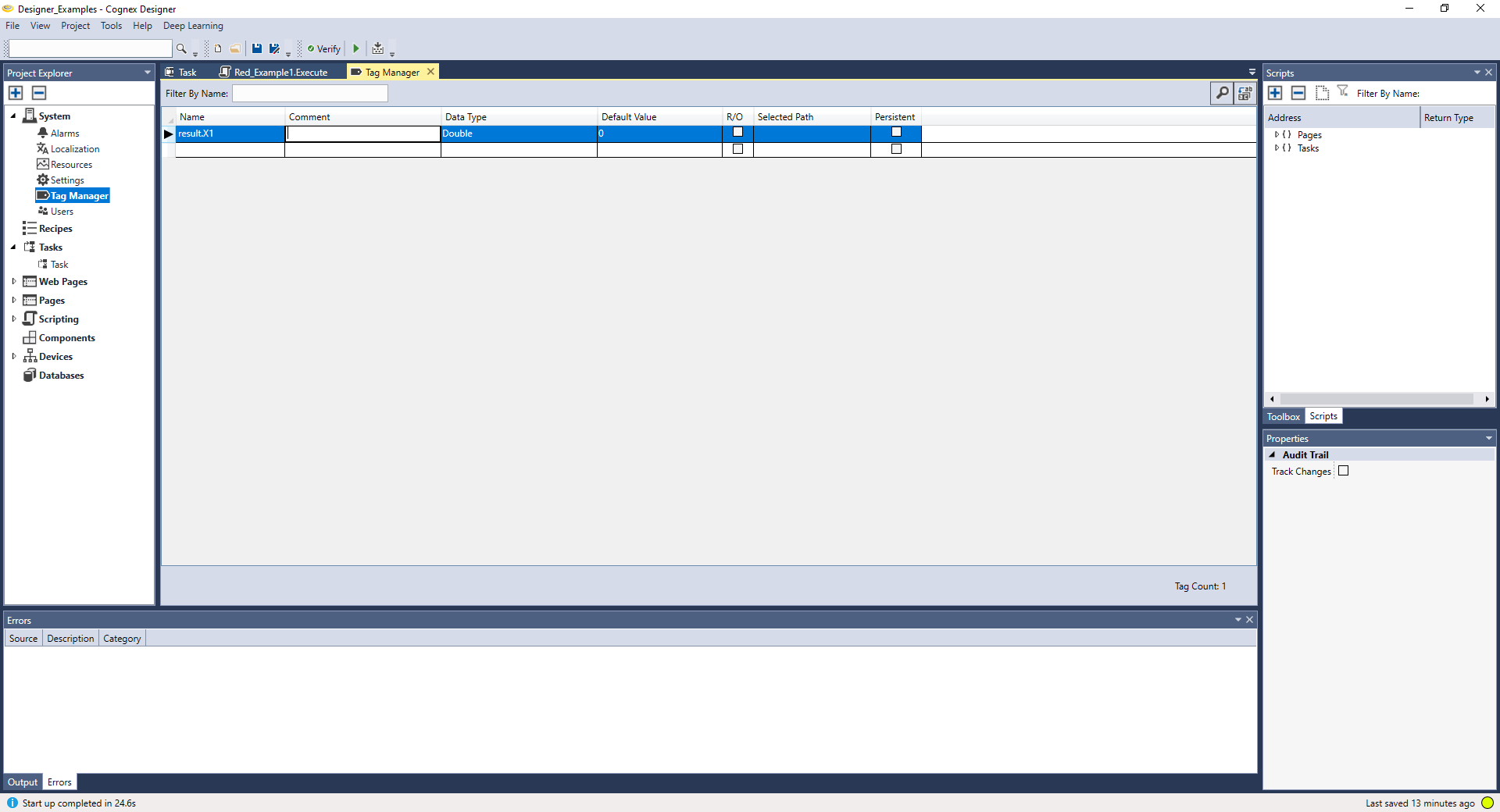

    // If you use Tag
        //Write the variables to the tags:
    $result.X1 = x;

    // If you use Page Content
    $Pages.Result.X1.Text = x.ToString();
    $Pages.Result.Y1.Text = y.ToString();
    $Pages.Result.Area1.Text = Area1.ToString();
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

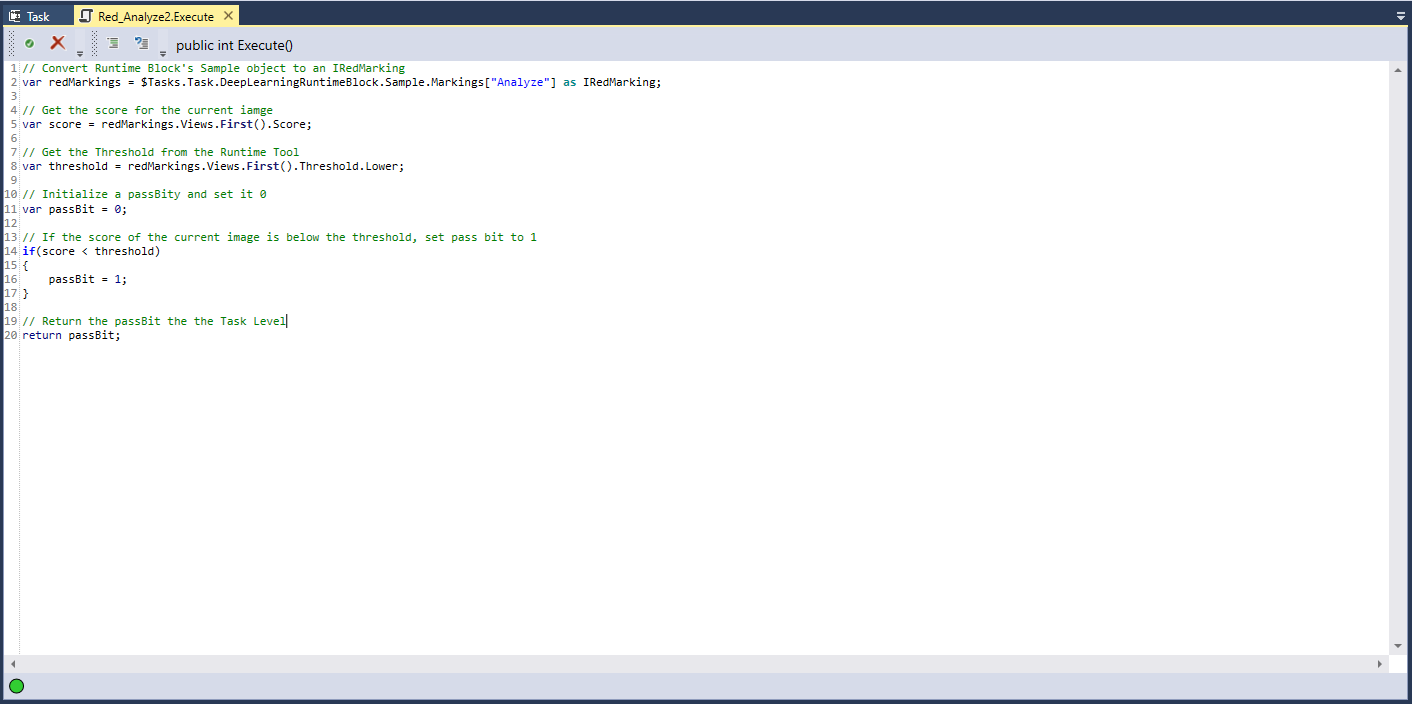

//Convert Runtime Block's Sample object to an IRedMarking.
var redMarkings = $Tasks.Task.DeepLearningRuntimeBlock.Sample.Markings["Analyze"] as IRedMarking;
//Get the score for the current image.
var score = redMarkings.Views.First().Score;
//Get the Threshold from the Runtime Tool.
var threshold = redMarkings.Views.First().Threshold.Lower;
//Intialize a passBit and set it 0.
var passBit = 0;
//If the score of the current image is below the threshold, set pass bit to 1.
if (score < threshold)
    {
    passBit = 1;
    }
//Return the passBit to the Task Level.
return passBit;
