Using Multi-Model to Discriminate Between Multiple Different Patterns

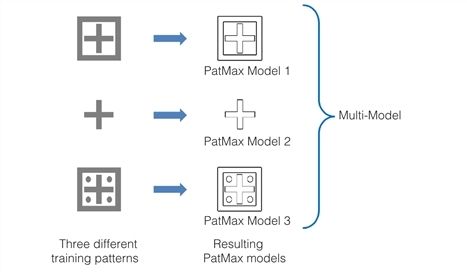

You can use a Multi-Model to discriminate between multiple different patterns. The following figure illustrates how a Multi-Model is created with standard PatMax models.

Multi-Model creation in combination with Composite Model training

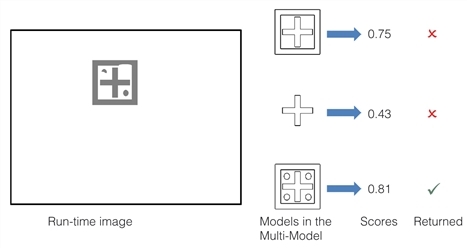

The following figure illustrates pattern classification based on the previous models added to the Multi-Model.

Multi-Model pattern matching with added Composite Models

In this case, the third model from above received the highest score (0.81); therefore, the pattern alignment result is returned for this model.
