Expected Flat Dimensions

For a wafer with an alignment flat, you specify the expected flat width and radius. The figure below shows the parameters you specify for a flat wafer.

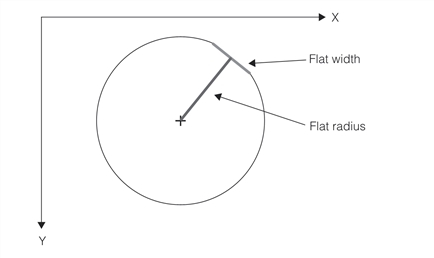

Specifying wafer flat dimensions

Note that you can specify the expected minimum and maximum flat width and flat radius for the flat. Wafers with flats whose dimensions are outside of the ranges you specify will not be found by the tool.
