Edge Intelligence Systems

Edge Intelligence Model	CPU	Processing Power	Number of Data Streams	Power	I/O	Memory	Image Capacity1Assuming no-read images are saved at full resolution (3 megapixels) in JPEG format.	Image Storage2With full resolution JPEG no-read images from all readers, on a system running 24/7 with 1 trigger per second at a performance of 99% read rate.

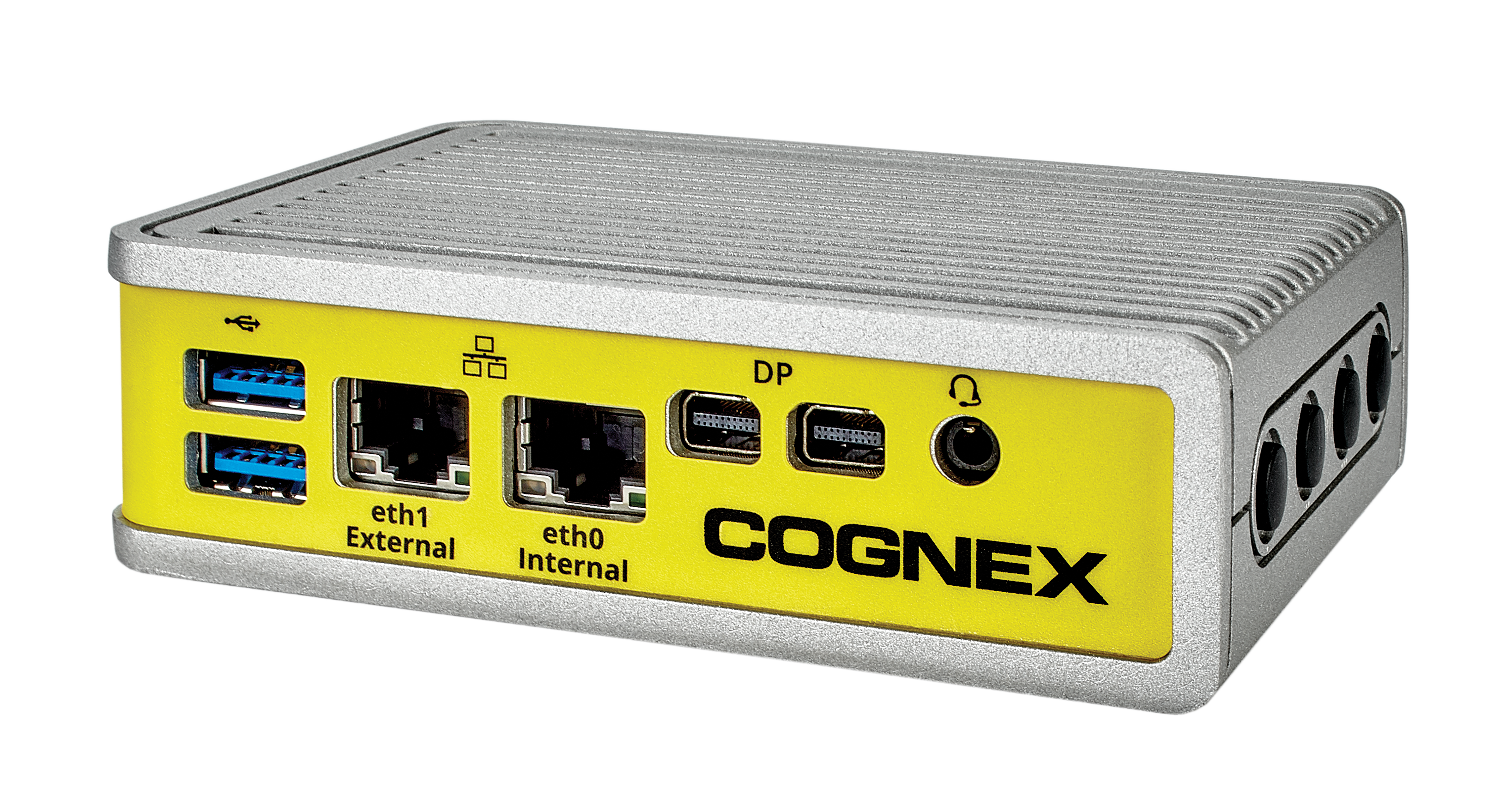

EI-200	Intel Celeron N3350 1.1 GHz	Dual Core	Up to 5 data streams	12 VDC input jack	Not supported	4 GB LLDDR4 2133 MHz	Up to 1 million images	Up to 244 data days

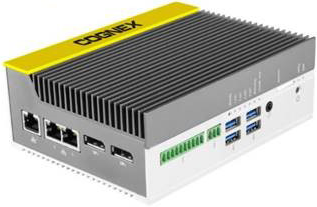

EI-300	Intel Atom E3950 1.6 GHz	Quad Core	Up to 10 data streams	9~36 VDC 3-pin terminal block	8-bit Isolated Digital I/O	8 GB LPDDR4	Up to 4 million images	Up to 487 data days

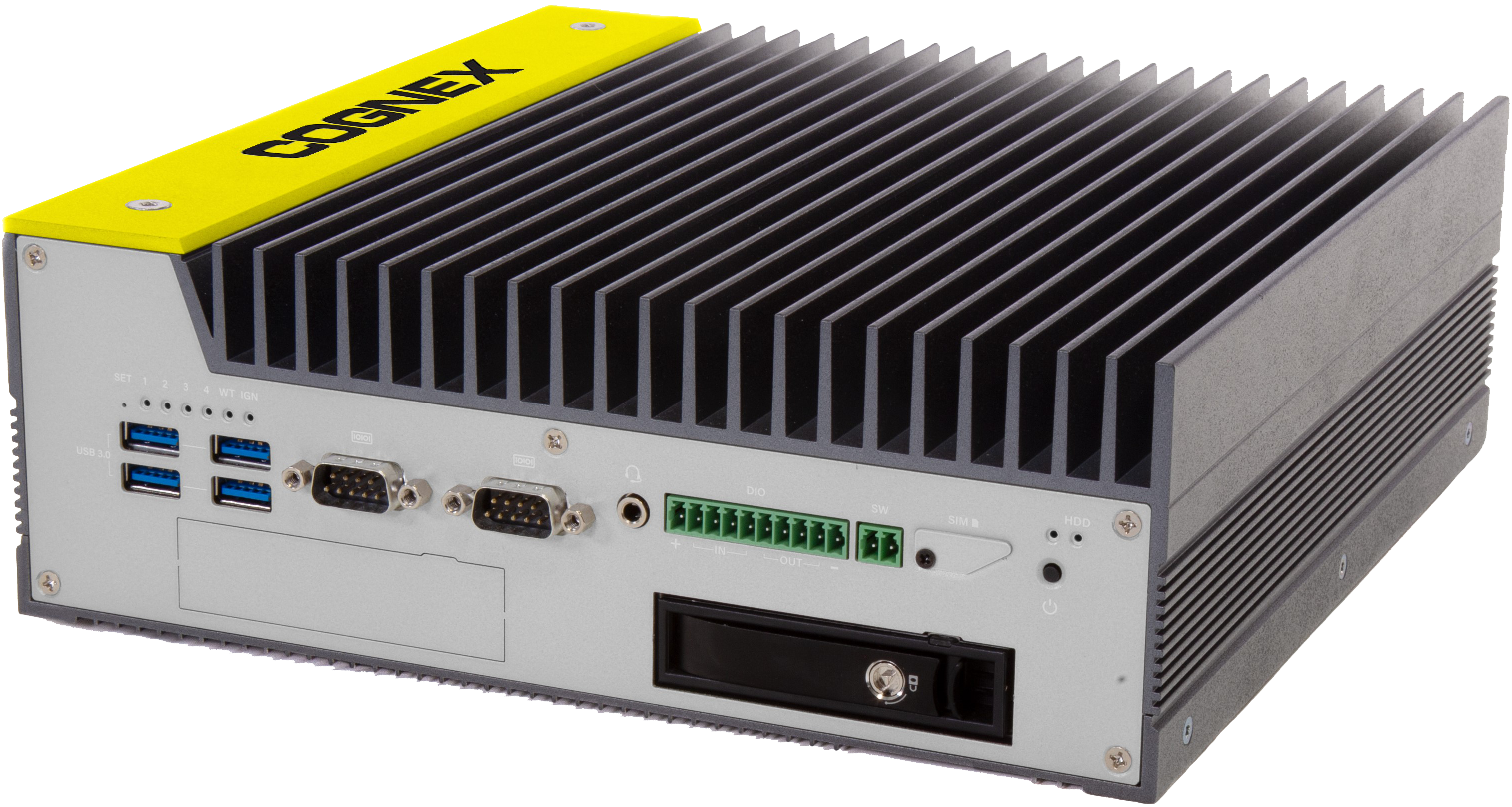

EI-700	Intel Core i7-8700T 2.4 GHz	Hexa Core	Up to 20 data streams	9~48 VDC 5-pin terminal block	8-bit Isolated Digital I/O	8 GB SO-DIMM DDR4 2666 MHz - Wide Temp	Up to 8 million images	Up to 487 data days
